Vercise
TM
DBS Charging Handbook
91171709-15 Page 11 of 109
Using the Charging System
Using the Adhesive Patch
1. When the indicator light is green, remove the Charger
from the Base Station.
Note: Once the Charger is removed from the Base
Station, the Charger indicator light will turn off
regardless of the ready status of the Charger.
2. Apply the Adhesive Patch to the backside of the
Charger by peeling the clear liner from the patch and
applying the white side with the blue stripe to the rear of
the Charger (Figure 3).
3. Remove the skin side beige liner from the adhesive (only good for one xation).
4. For best charging results, make sure the Charger is centered over the Stimulator. If the Charger is not centered, charging
time may increase. See the “Properly Aligning the Charger” and “Tips for Properly Aligning the Charger” sections of this
manual to ensure you center the Charger over the Stimulator. It is recommended that you follow the instructions in both
sections the rst time you charge your Stimulator.
Note: Do not put the Charger directly on the skin (e.g., without an Adhesive Patch).

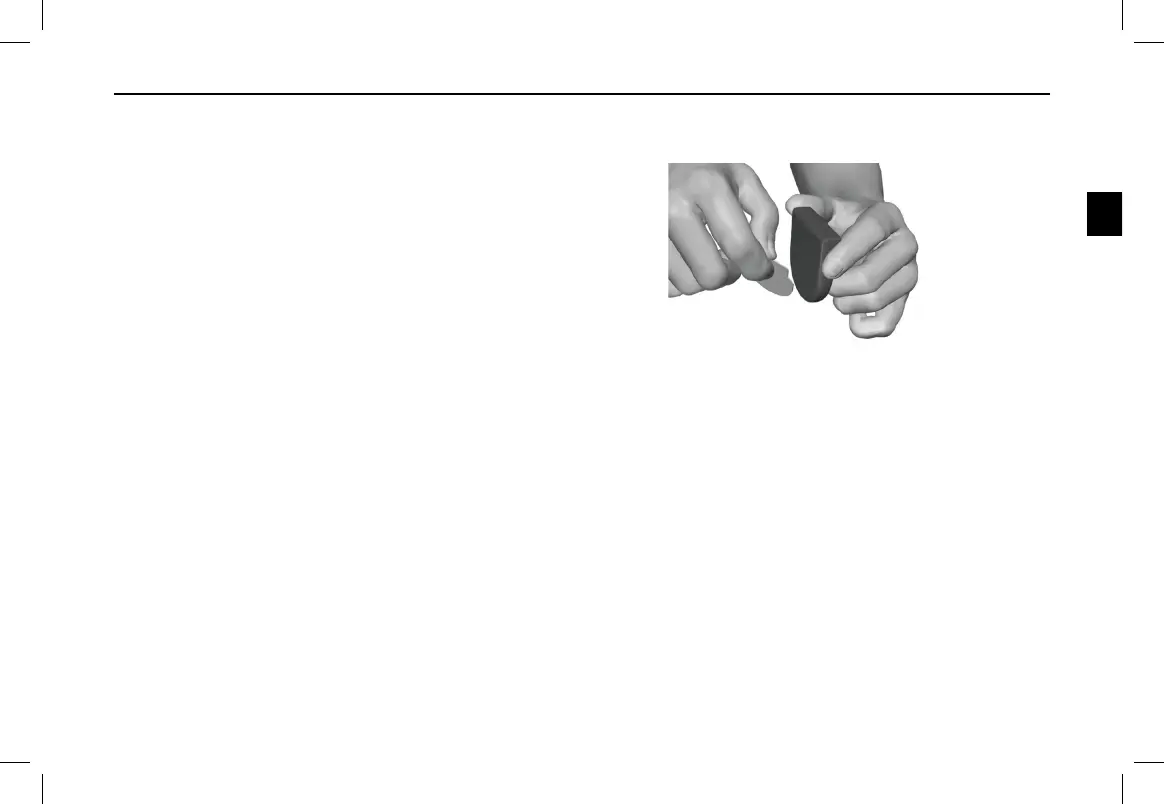

Figure 3. Peel the Clear Liner from the Adhesive Patch
