Braun L917 User Manual

Page 59

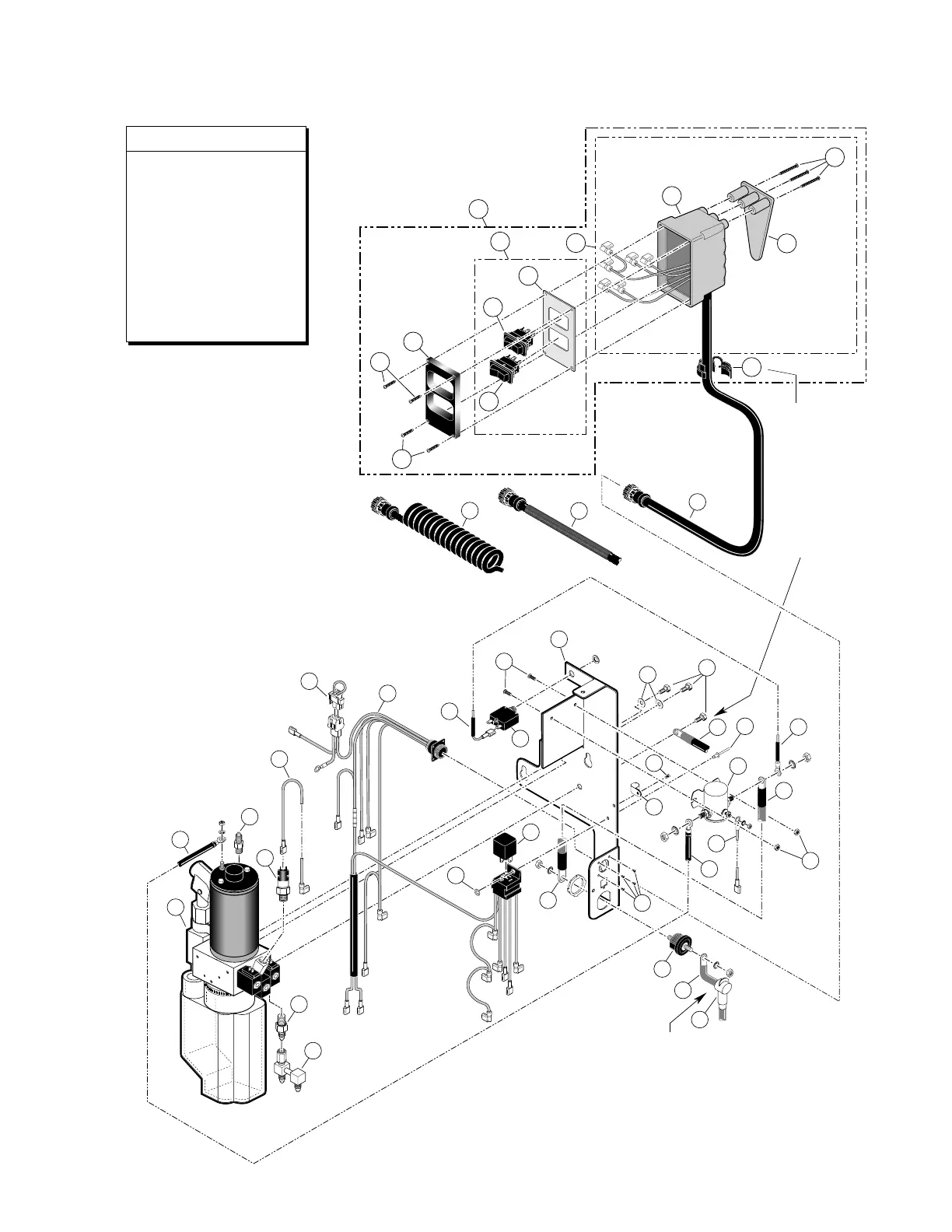

Rear Pump Module Diagram
Apply red #271 Thread
Locker Loctite
®
to the
three pump mounting
bolts (item 28) if a blue
nylon patch is not present
on the bolts when
retrofitting an M268 pump
assembly. Loctite
®
is
available from The Braun
Corporation under part
number 11522.
Pump Mounting Bolts
Power Cable
from Battery
External
Chassis
Ground
Cable
Not applicable for
Control Box 6D
and Harness 7D.
