Features and Controls
Read the Operator’s Manual and safety rules before operating your electric pressure washer.
Compare the illustrations with your electric pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this original manual for future reference.

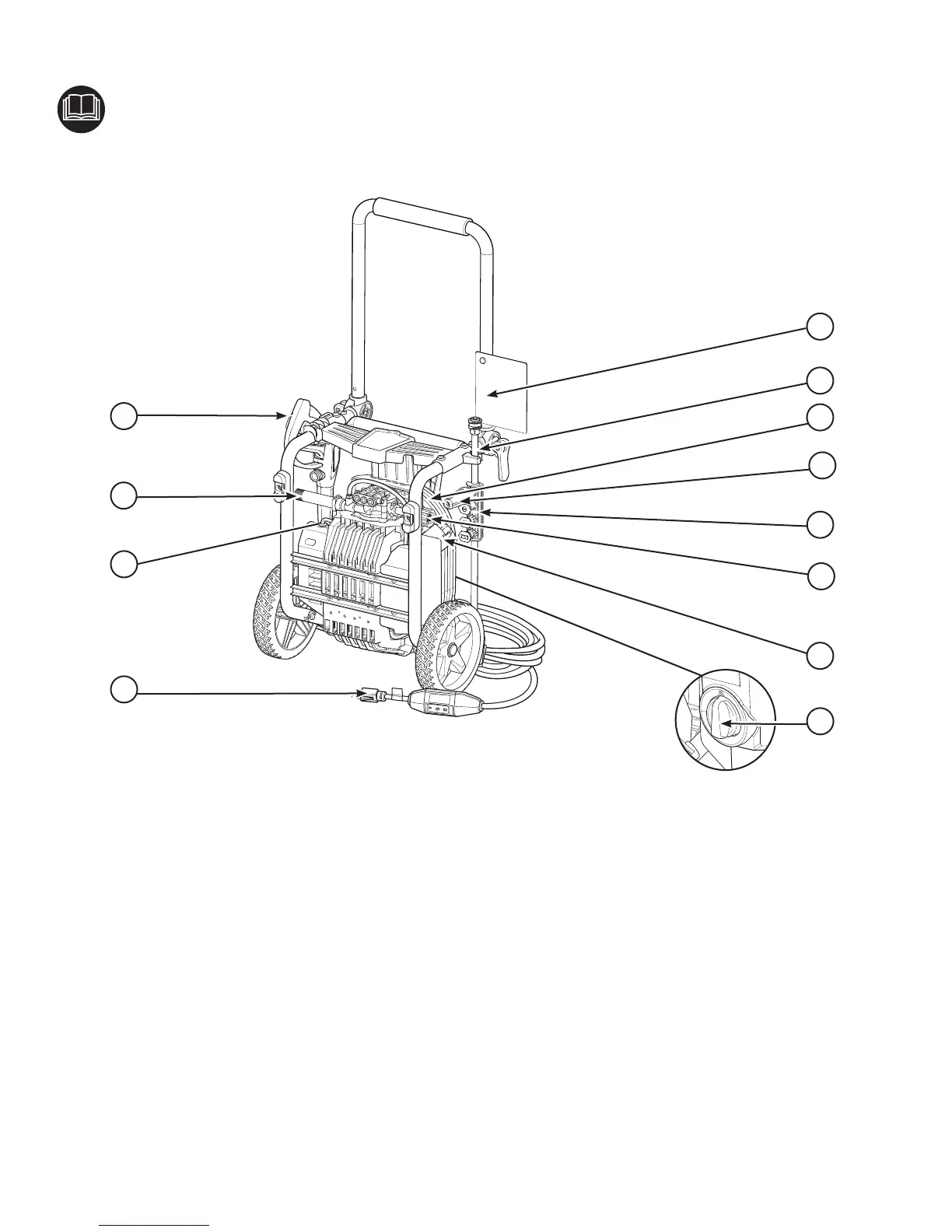

A - Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock.
B - High Pressure Outlet — Connection for high pressure
hose.
C - Identification Label — Provides model and serial
number of pressure washer. Please have these readily
available if calling for assistance.
D - Electric Cord with GFCI — The electric pressure
washer and operator is protected by a ground fault circuit
interrupter (GFCI).
E - Master ON/OFF Switch — Turn switch to ON (I)
position to start pressure washer. Turn switch to OFF (0)
position to stop pressure washer.
F - Detergent Tank — Use to hold up to 40 fl. oz. (1.2 l) of
pressure washer safe detergent.
G - Water Supply Inlet — Connect to water supply using
a 50 ft. (15.24 m) maximum garden hose.
H - Spray Tips — Detergent, 15°, and 25° for various high
pressure cleaning applications.
J -Turbo Spray Tip — Whirls a powerful pin-point jet of
water for intense cleaning.
K - High Pressure Hose — Connect red end to high
pressure water outlet and black end to spray gun.
L - Spray Wand — Allows you to switch between different
spray tips.
M - Warning Label — Identifies hazards to be avoided
when using your pressure washer.
D
C
A
B
J
M
H
F
L
E
G
K
To Next Page
