7
A - 120 Volt AC, 20 Amp, Duplex Receptacles —
May be used to supply electrical power for the
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical, lighting, appliance, tool, and
motor loads.
B - 120/240 Volt AC, 30 Amp Locking Receptacle
— May be used to supply electrical power for the
operation of 120 and/or 240 Volt AC, 30 Amp,
single phase, 60 Hz electrical, lighting, appliance,
tool, and motor loads.
C - Air Cleaner — Protects engine by filtering dust
and debris out of intake air.
D - Choke Lever — Used when starting a cold
engine.
E - Data Tag — Provides model, revision, and serial
number of generator. Please have these readily
available when calling for assistance.
F - Double Pole Circuit Breaker (AC) — A double
pole circuit breaker is provided to protect all the
receptacles and generator against electrical
overload.
G - Fuel Tank — Capacity of five (5) U.S. gallons
(18.9 l).
H - Fuel Valve — Used to turn fuel supply on and off to
engine.
I - Grounding Fastener — Consult your local agency
having jurisdiction for grounding requirements in
your area.
J - Oil Fill — Add engine oil here.
K - Recoil Starter — Used to start the engine.
L - Engine Rocker Switch — Set this switch to “On”
before using recoil starter. Set switch to “Off” to
stop engine.
M - Spark Arrester Muffler — Exhaust muffler lowers
engine noise and is equipped with a spark
arrester screen.

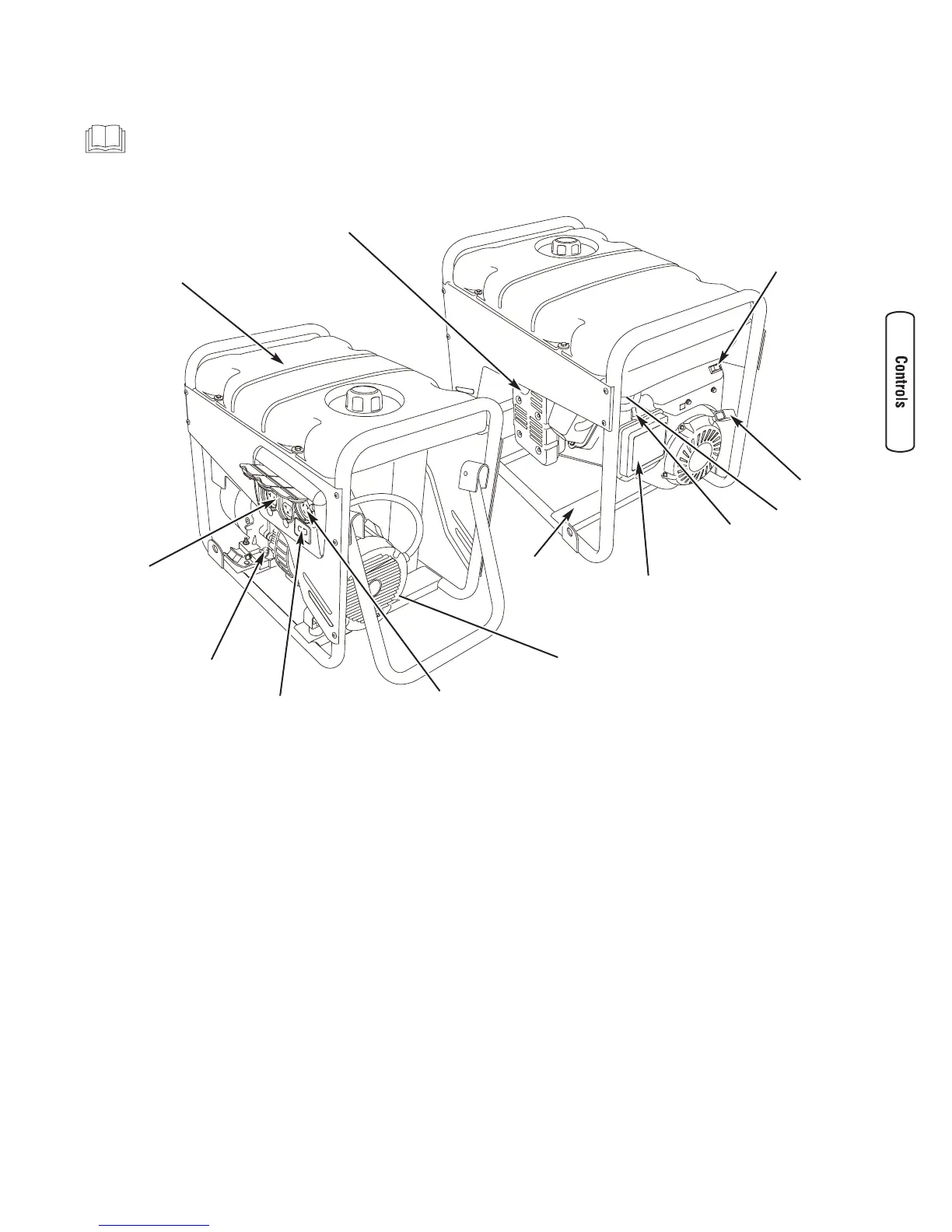

Features and Controls
Read this Operator’s Manual and safety rules before operating your generator.
Compare the illustrations with your generator, to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
C
B
I
F
J
E
D
K
L
A
G
M
H
