Features and Controls
Read this Operator’s Manual and safety rules before operating your generator.

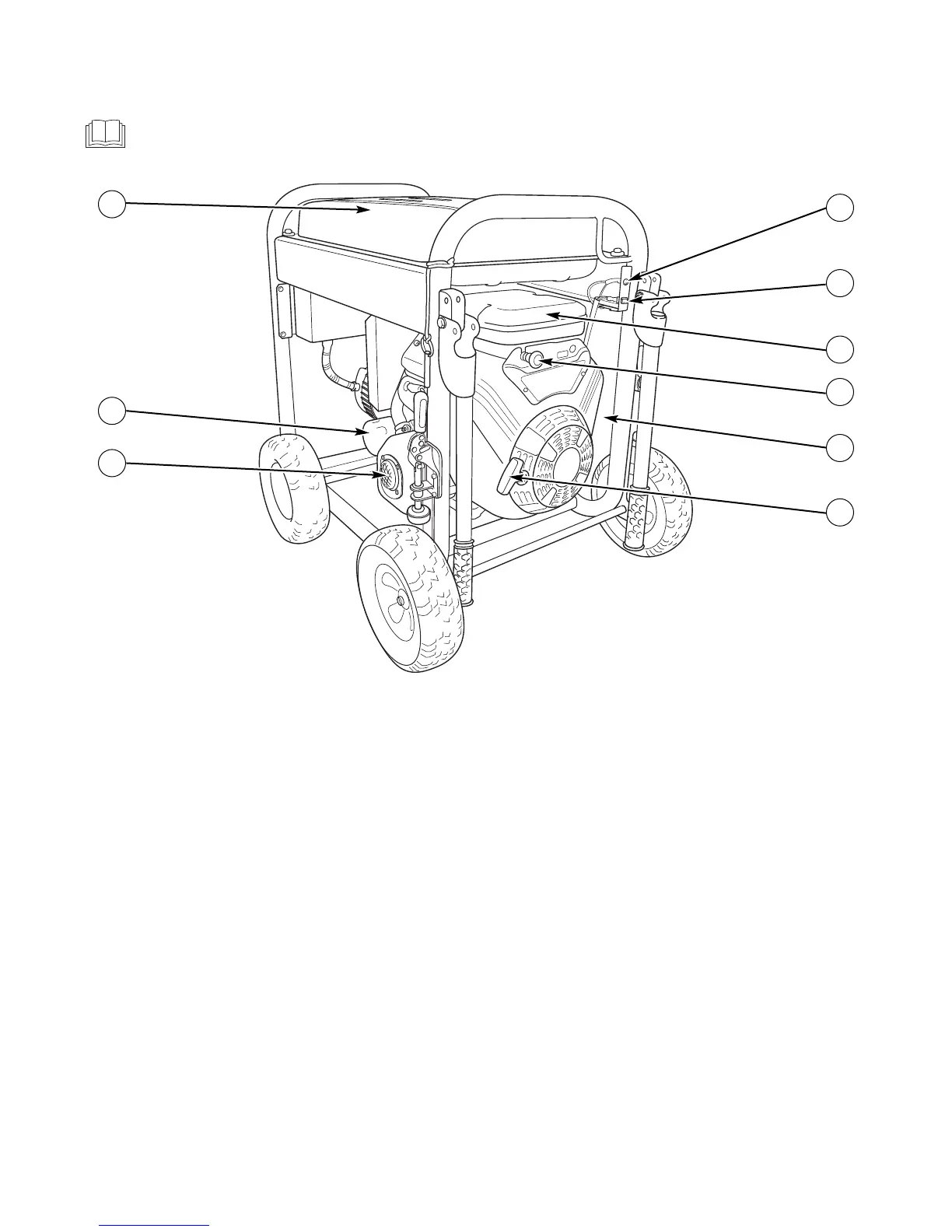

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
11
A - Fuel Tank — Capacity of seven (7) U.S. gallons (26.5 l).
B - Oil Filter — Filters engine oil to prolong engine life.
C - Spark Arrester Muffler — Exhaust muffler lowers engine
noise and is equipped with a spark arrester screen.
D - Recoil Starter — Used to start the engine manually.
E - Engine Identification — Provides model, type and code
of engine. Please have these readily available if calling for
assistance.
F - Choke Control — Used when starting a cold engine.
G - Air Cleaner — Protects engine by filtering dust and
debris out of intake air.
H - Start Switch — Push to start the engine.
J - Battery Float Charger Jack — Use battery float charger
jack to keep the starting battery charged and ready for
use.
A
C
F
G
J
H
E
D
B
