carrier to the next tab
right of its present

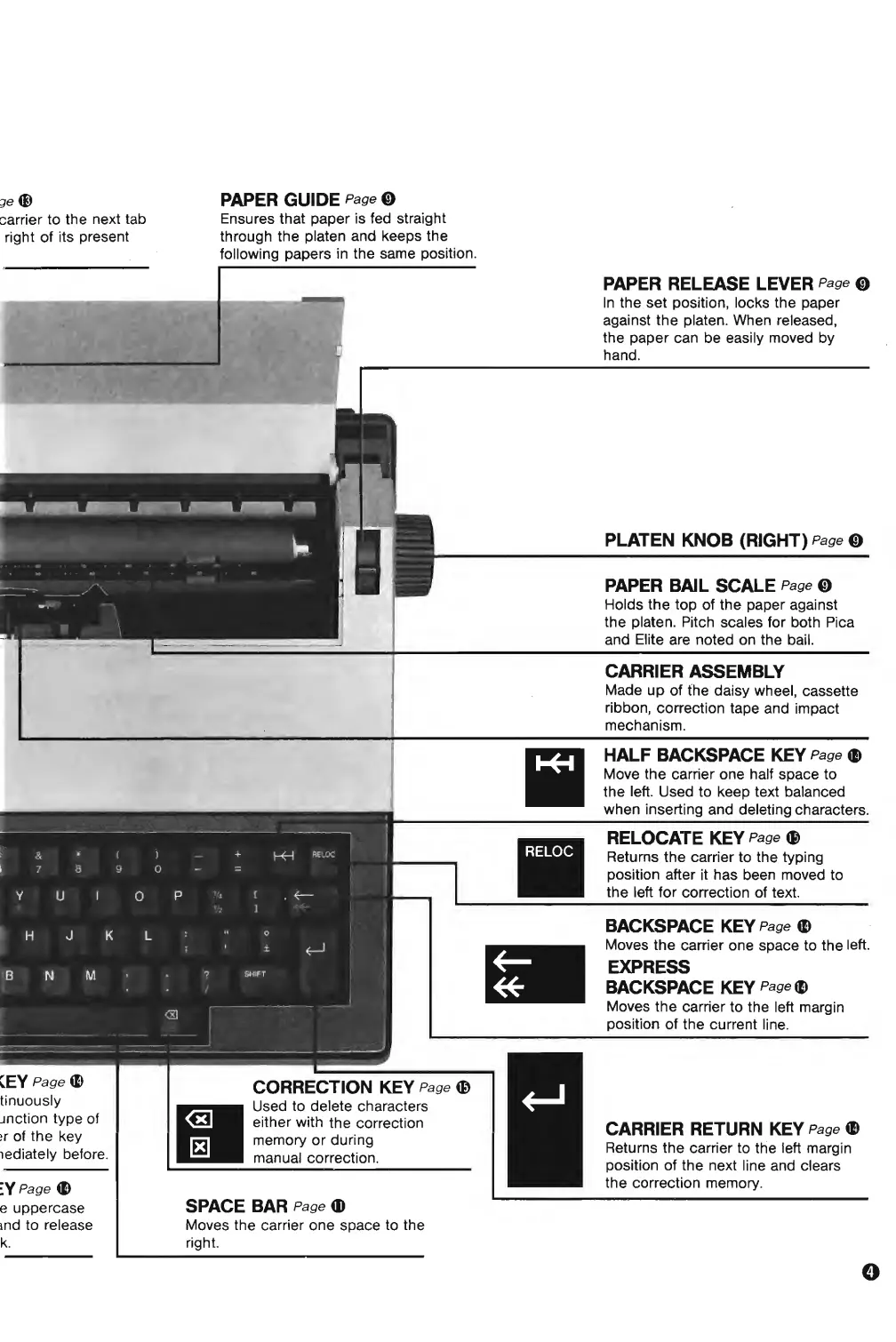

PAPER GUIDE Page ®
Ensures that paper is fed straight
through the platen and keeps the
following papers in the same position.
PAPER RELEASE LEVER Page @
In the set position, locks the paper
against the platen. When released,
the paper can be easily moved by
hand.
PLATEN KNOB (RIGHT) Page @
PAPER BAIL SCALE Page 0
Holds the top of the paper against
the platen. Pitch scales for both Pica
and Elite are noted on the bail.
CARRIER ASSEMBLY
Made up of the daisy wheel, cassette
ribbon, correction tape and impact
mechanism.
HALF BACKSPACE KEY Page ®
Move the carrier one half space to
the left. Used to keep text balanced
when inserting and deleting characters.
a
U r
RSLOC
0 P
H J K L ^
B N M ' ‘
m
r^i
CORRECTION KEY Page ®
Used to delete characters
either with the correction
1 [HI
memory or during
manual correction.
SPACE BAR Page ®
Moves the carrier one space to the
right.
RELOCATE KEY Page®
Returns the carrier to the typing
position after it has been moved to
the left for correction of text.
BACKSPACE KEY Page ®
Moves the carrier one space to the left.
pypopcQ
BACKSPACE KEY Page®
Moves the carrier to the left margin
position of the current line.
CARRIER RETURN KEY Page ®
Returns the carrier to the left margin
position of the next line and clears
the correction memory.
