Brother DCP-8080DN Service Manual

1-1
Confidential
1. COMPONENTS

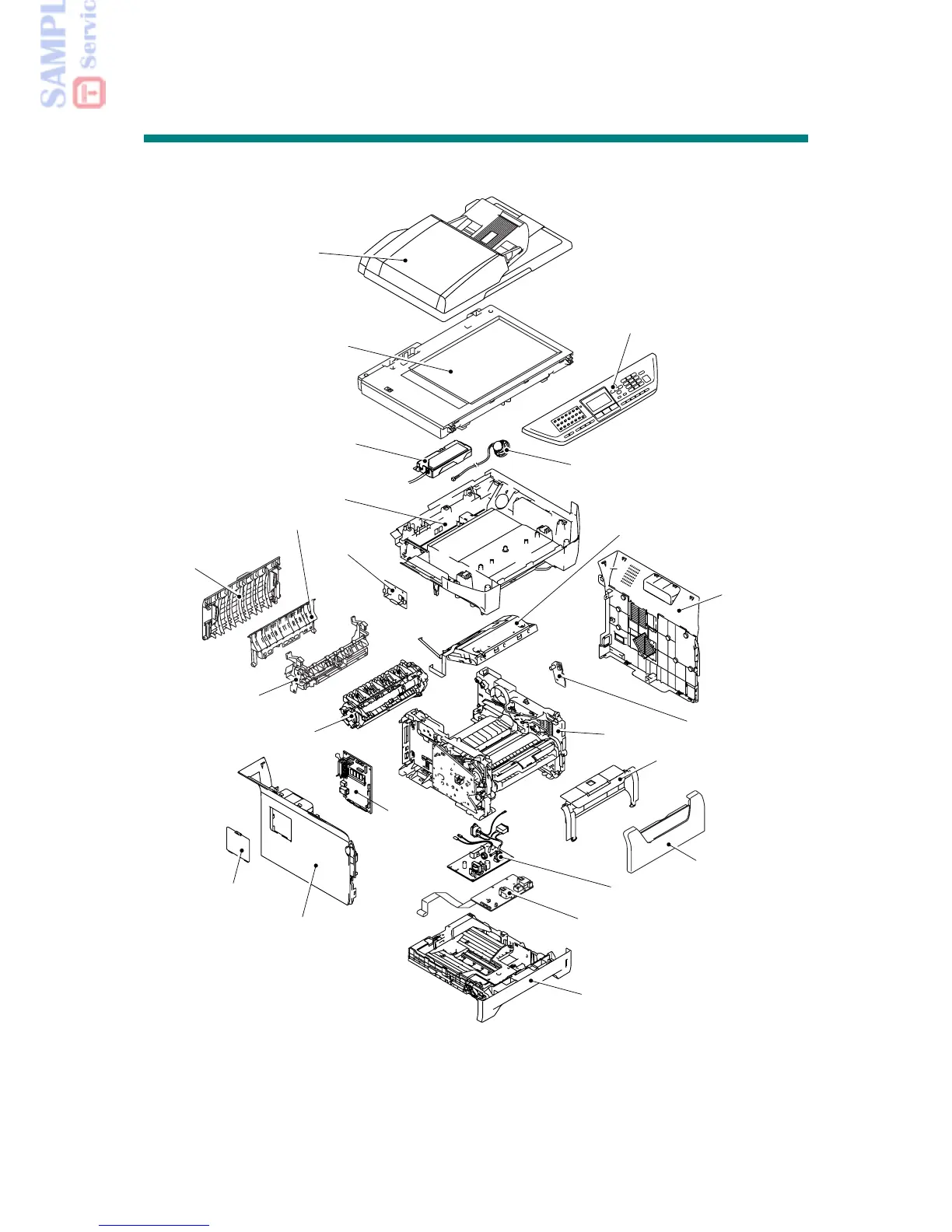

The equipment consists of the following major components:
Fig. 1-1
Driver PCB
Joint Cover ASSY
NCU PCB
Scanner Unit
ADF Unit
Panel Unit
Speaker ASSY
Back Cover
Outer Chute ASSY
Rear Chute ASSY
Fuser Unit
Main PCB
Access Cover
Side Cover L
Side Cover R
Laser Unit
Toner LED PCB ASSY
Paper Tray
High-voltage PS PCB
PS PCB
MP Tray Cover ASSY
Process Cover ASSY
Frame Unit

Brother DCP-8080DN Specifications

General

Zoom capability	25 - 400%
Maximum print size	-
Standard input capacity	250 sheets
Color scanning	Yes
Enhanced scan resolution	19.200 x 19.200 DPI
Print technology	Laser
Time to first page (black, normal)	8.5 s
Standard interfaces	USB 2.0/RJ-45
Built-in processor	NEC VR5500
Internal memory	64 MB
Compatible operating systems	Windows/Mac OS
Type	Digital copier
Sustainability certificates	ENERGY STAR
Power consumption (standby)	16 W
Power consumption (typical)	680 W
Operating relative humidity (H-H)	20 - 80 %
Maximum operating temperature range (T-T)	50 - 91 °C
Pallet dimensions (W x D x H)	627.38 x 566.42 x 574.04 mm
Processor model	VR5500
Processor family	NEC

Weight and Dimensions

Weight	18098 g
Package weight	22000 g
Maximum dimensions (W x D x H)	530.86 x 449.58 x 474.98 mm
