45
A. Installation of Factory Supplied Piping and Trim
Components
Apex (APX) boilers have factory supplied
Miscellaneous Part Carton (P/N 102942-04 – APX399
& APX500; P/N 103259-01 – APX800), which includes
supply piping components, gas piping components,
Temperature & Pressure Gauge, Pressure Relief Valve
and Drain Valve. See Figure 35 “Factory Supplied
Piping and Trim Installation”.
Install these components prior to connecting boiler to
system piping as follows:
VI. Water Piping and Trim

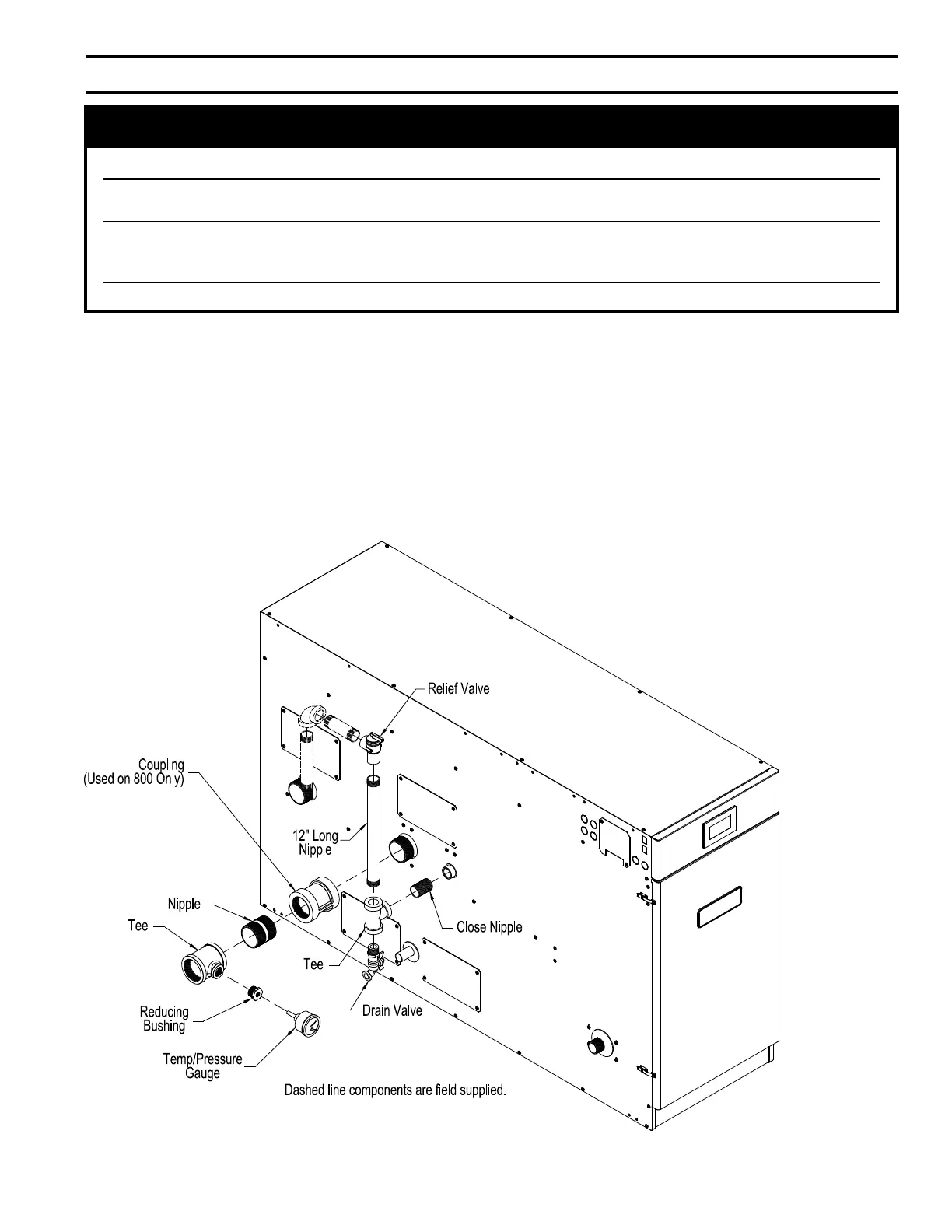

Figure 35: Factory Supplied Piping and Trim Installation
WARNING
Failure to properly pipe boiler may result in improper operation and damage to boiler or structure.
Install boiler so that the gas ignition system components are protected from water (dripping, spraying,
rain, etc.) during appliance operation and service (circulator replacement, etc.).
Oxygen contamination of boiler water will cause corrosion of iron and steel boiler components, and can
lead to boiler failure. Burnham Commercial’s Standard Warranty does not cover problems caused by
oxygen contamination of boiler water or scale (lime) build-up caused by frequent addition of water.
Do not ll boiler with softened water to prevent chloride contamination.
1. APX399 and APX500 Boiler Models
a. Locate and remove (1) ¾” NPT x close black
nipple, (1) ¾” NPT x 12” black nipple, ¾” NPT
black tee, ¾” FPT x ¾” FPT Pressure Relief
Valve, ¾” NPT Drain Valve.
b. Install close nipple into tee branch, then, screw
the assembly into boiler left side front ¾” FPT
tapping making sure tee run outlets are in vertical
plane and parallel to boiler side.
c. Install the ¾” NPT x 12” black nipple into tee
run top outlet.
d. Mount ¾” FPT x ¾” FPT Pressure Relief Valve
onto 12” nipple.
e. Install Drain Valve into the tee bottom outlet.
To Next Page
