Installation

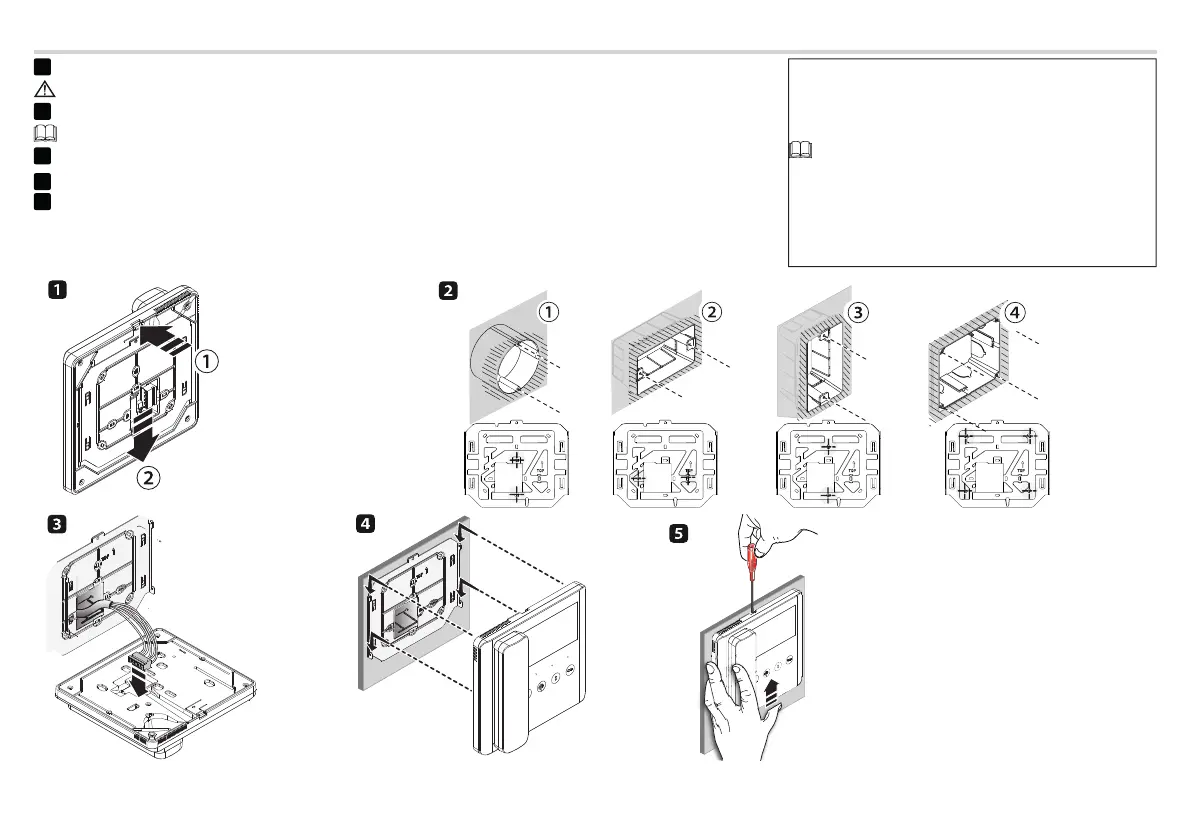

1
Press the small plastic tab and slide the device o the wall-mounting support to remove it.
Observe the TOP arrow.
2
Fasten the wall-mounting support to the back box.
Avoid overtightening the screws.
3
Make the connections.
4
Refi t the device to the wall-mounting support.
5
To unhook the device, use a screwdriver to press in the plastic tab and slide the device upwards.
①
Round back box (Ø 60 mm tube).
②
Rectangular horizontal back box 503.
③
Rectangular vertical back box 503.
④
Ophera (PHI) back box.
The box must be installed at an appropriate height for
the user.
