LN
UVWXYEE3
10 11 S 1 2 3 3P 4 5 7 2 C1 CX B1 B2TS 10
L1T
CT 0 12 24
L2T
2
FC1 FA2 FC2
FA1
L2T L1T1234
0
12 24
ENGLISH
p.
- Manual code:
319W86 v.
05/2015 © CAME cancelli automatici S.p.A. - The data and information in this manual may be changed at any time and without notice.
1. Control board
2. fuse connection terminals
3. Control device fuses
4. Accessories fuse
5. Electrolock fuse
6. Programming LED
7. Radio code memorizing buttons
8. Time setting trimmer
9. Functions selectors
10. AF radio frequency card plug
11. 24 V warning LED
12. Transformer
13. Condensers*

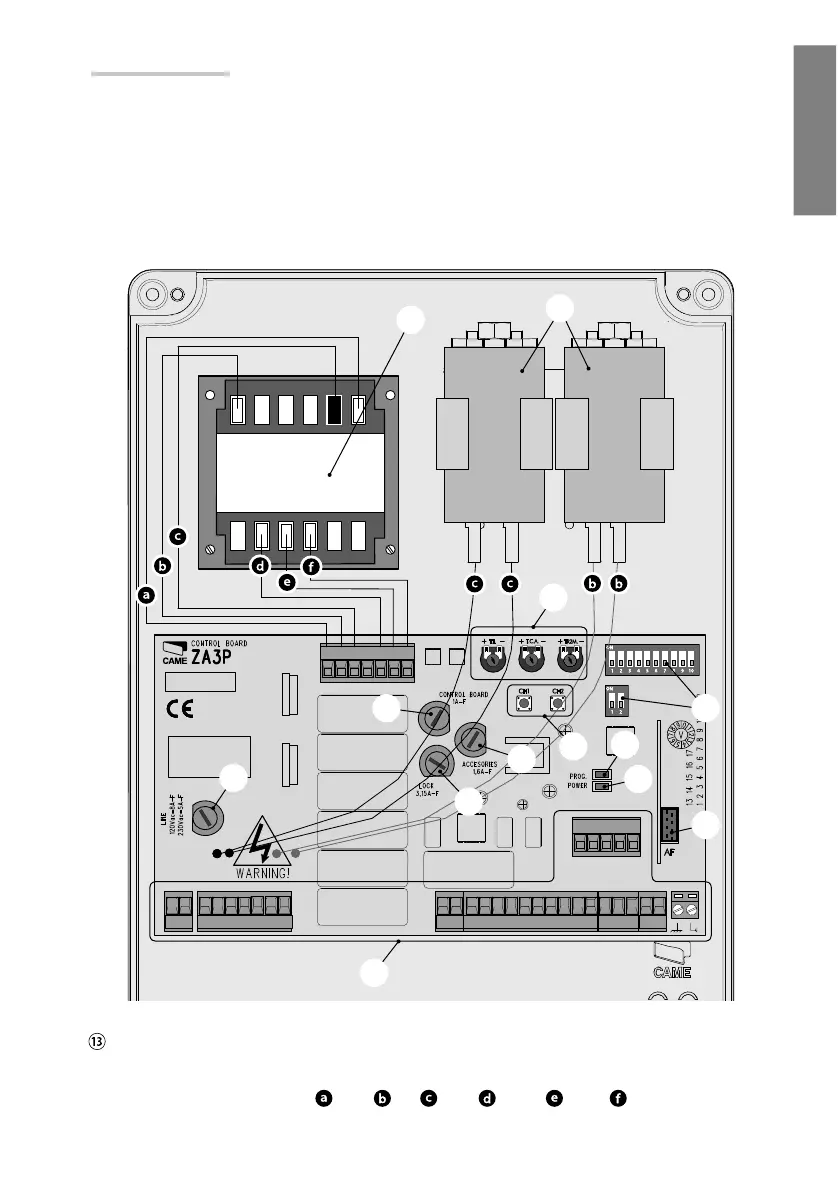

Description of parts
* Contained in the 230 V FROG gearmotor box. Connect them to the black cables (motor M1) and red ones (motor M2),
which are set up on the control board; if pairing ATI, FAST, FERNI and KRONO gearmotors, these will stay unused (the
condensers are connected inside).
Transformer and condenser cable colors:
white; red; black; orange; purple; light blue.
