23

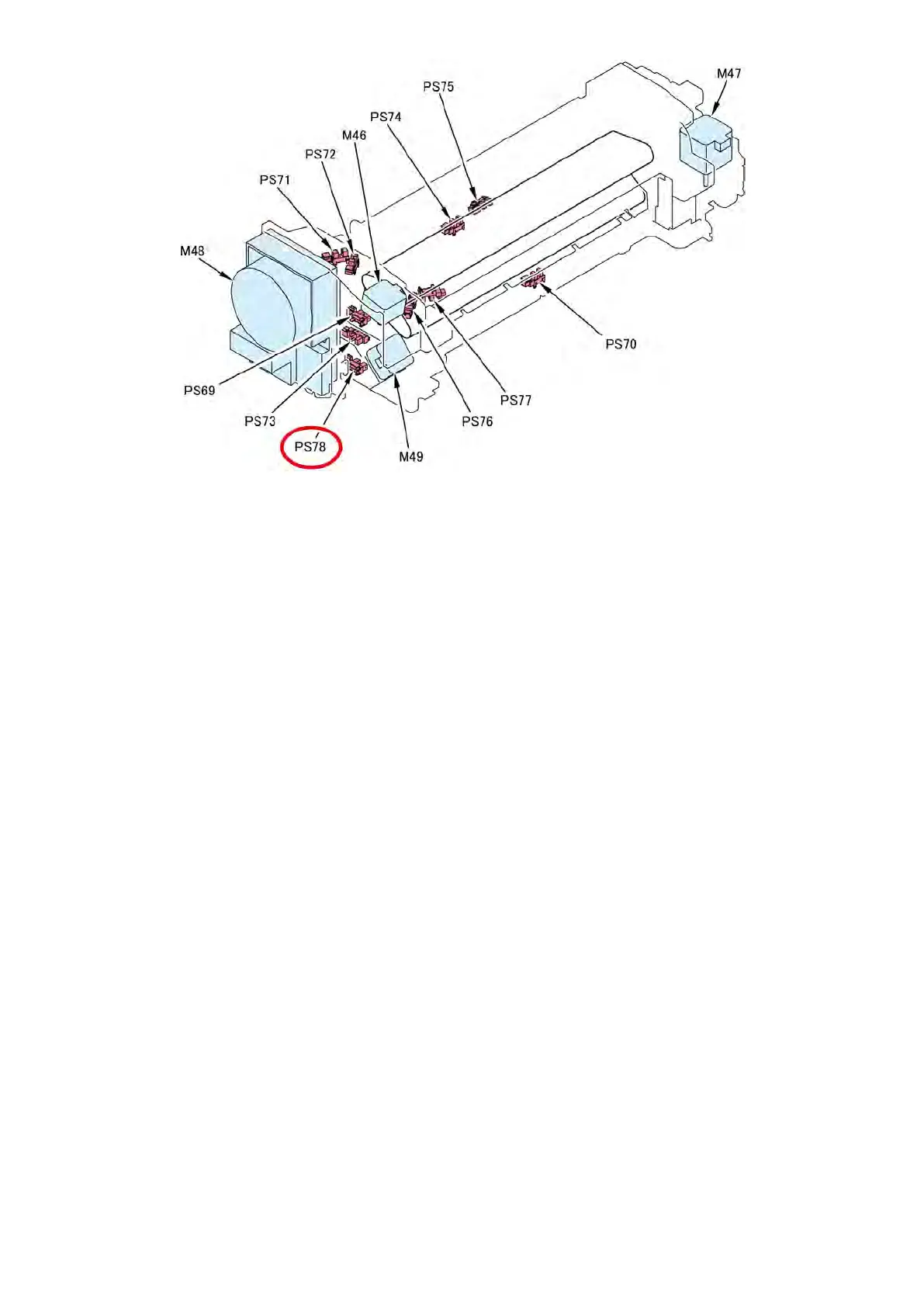

First check the sensor to see if it is dislodged or dirty. Next check it in the I/O mode, DC con, P012 bit 6 & 7.
On a working machine, in the ready condition both bit 6 & 7 are at a 1.
If the sensor checks bad the part number is WG8-5848.
Symptom
E007-9902 : Solved by replacing Lower Fixing Pressure Belt position sensors TP12 253
Description
Machine would display an error code E007-9902 with the lower fixing pressure belt centered.
Field Remedy
Replacing the Lower Fixing Pressure Belt position sensors PS76 and PS77 (WG8-5783) resolved this case.
Symptom
E008-0001 error code: Due to 27T Gear and Bearing that were found to be defective [G]
Description
E008-0001 error code on the machine.
Field Remedy
It has been discovered that a seized or broken gear on the Fixing Unit can cause the error code because the
specified torque on the Fixing Motor has either increased or decreased. Below is FIGURE 811 UPPER
BELT ASSEMBLY with the circled gear and bearing that were found to be defective whether it be a broken
gear or a tight or seized bearing. The gear discovered broken is item 12 with part number FU8-0012 and
