Cables used for connection
• Audio Cables (Mini Plug (stereo) x 2 or RCA x 2)❉, (RCA x 3) ✽
• Scart-VGA Cable ✽
• Component-VGA Cable ✽ (Separately supplied as LV-CA32)
(✽ = Not supplied with this projector.)
Note:
When connecting the cable, the power cords of both the projector and
the external equipment should be disconnected from AC outlet.
✔Note:
• Input sound to the COMPUTER AUDIO IN terminal when using the RGB
IN-2/ COMPONENT IN/ RGB OUT terminal as input.
• When connecting AUDIO OUT to external audio equipment, the projector's built-in
speaker is disconnected.

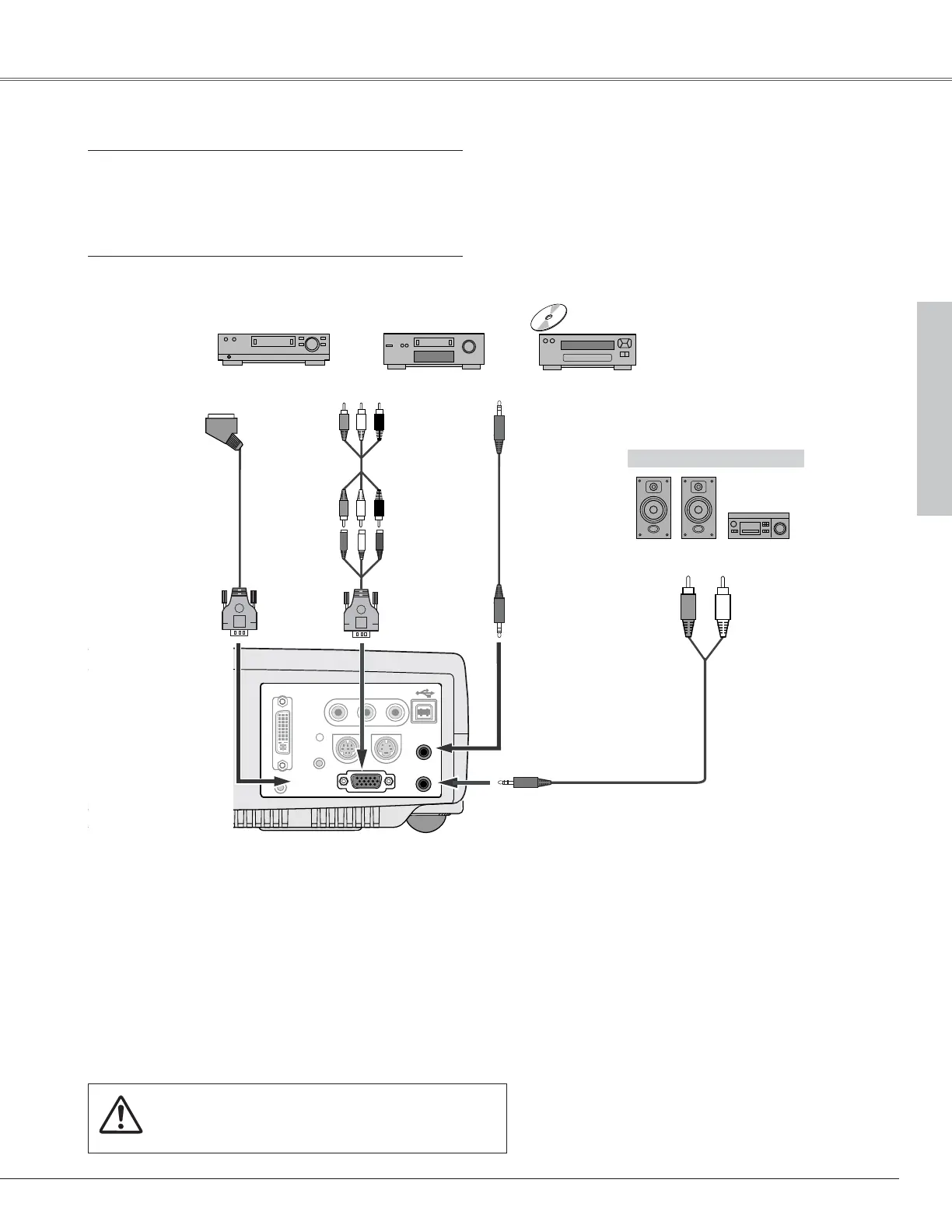

External Audio Equipment
RGB IN-2/
COMPONENT IN/
RGB OUT
RGB IN-2/
COMPONENT IN/
RGB OUT
COMPUTER AUDIO IN
Audio cable ✽
(stereo)
Audio cable ✽
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-pin Output
Audio Output
Scart-VGA cable ✽
Component-VGA
cable✽
AUDIO OUT
(stereo)
Video and audio
cable ✽
