Installation
Projection angle can be adjusted up to 8.0 degrees with the
adjustable feet.
Lift the front of the projector and pull upward the feet lock
latches on both sides of the projector.
1
Adjustable Feet
Feet Lock Latches
Release the feet lock latches to lock the adjustable feet and
rotate the adjustable feet to adjust the position and tilt.
2
To retract the adjustable feet, lift the front of the projector
and pull and undo the feet lock latches.
Keystone distortion of the projected image can be adjusted
by the Menu operation. (p22, 38)
3
Adjustable Feet
✔Note:
• The brightness in the room has a great influence on the picture quality. It is recommended to limit ambient lighting in order to obtain the best image.
• The values shown above are approximate and may vary from the actual size.

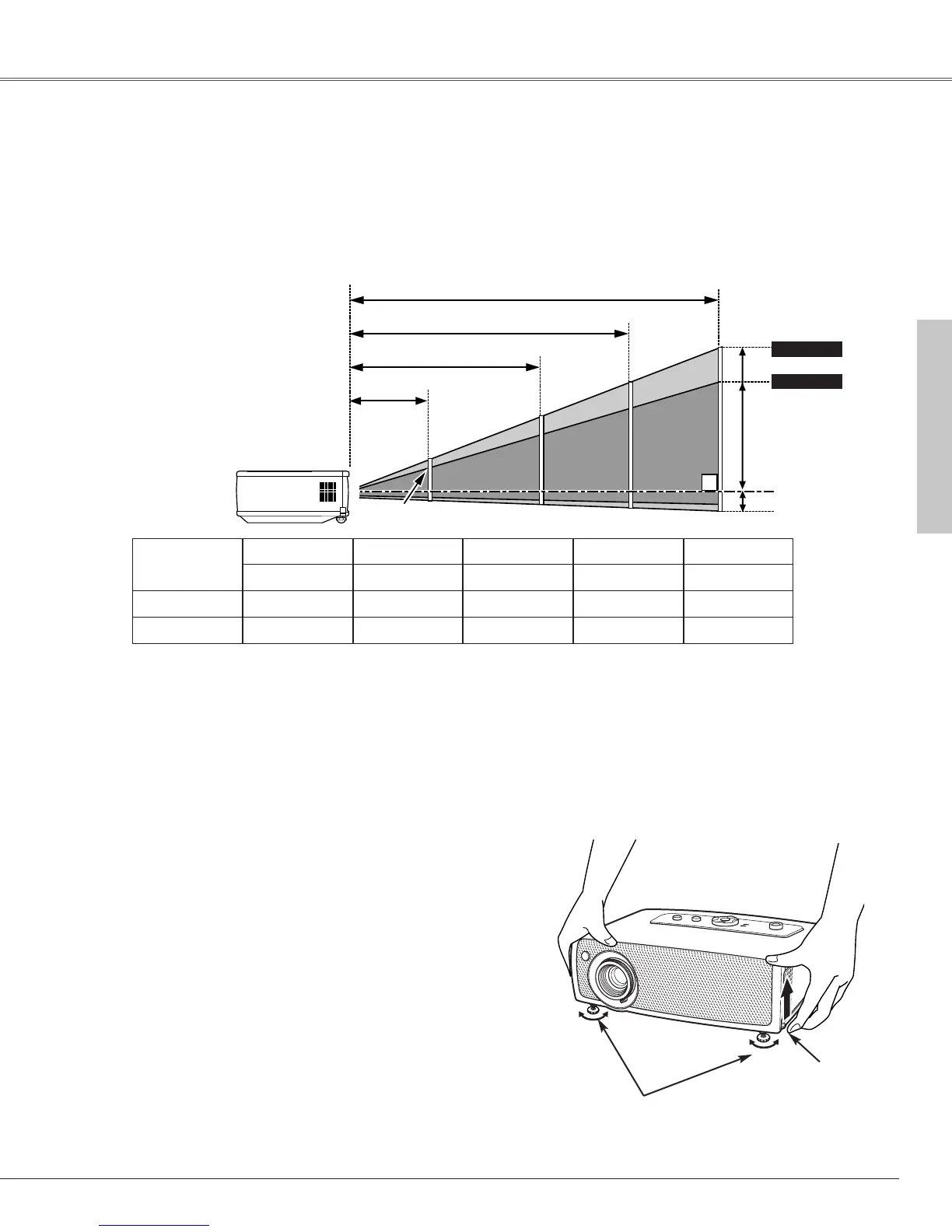

Positioning the Projector
Installation
40”
100”
150”
200”
169”
127”
83”
34”
21.3' (6.5m)
16.1' (4.9m)
10.6' (3.2m)
4.3' (1.3m)
Max. Zoom
Min. Zoom
A : B = 9 : 1
Screen Size
(W x H) mm
4 : 3 aspect ratio
Zoom (min)
34”
Zoom (max)
691 x 518
4.3' (1.3m)
––-––
40”
813 x 610
4.9' (1.5m)
4.3' (1.3m)
100”
2032 x 1524
12.5' (3.8m)
10.6' (3.2m)
150”
3048 x 2286
19.0' (5.8m)
16.1' (4.9m)
200”
4064 x 3048
––-––
21.3' (6.5m)
(Inch Diagonal)
This projector is designed to project on a flat projection surface and can be focused from 4.3’(1.3m) - 21.3’(6.5m). Refer to
the figure and the table below for the screen size and the distance between the projector and the screen.
(Center)
A
B
