VB-H41/B
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English Edition
© Canon Europa N.V., 2012
Specifications
Privacy Mask Max. 8 masks. Number of mask colours: 1 (select from 9 colours)
Camera Access Control User name and password / Host Access Restriction (IPv4, IPv6)
Camera Access Levels 3 user levels: Administrator / Authorized User / Guest User
Event Notification HTTP/SMTP (e-mail)
EMBEDDED ANALYTICS
Video Content Analytics Moving Object Detection, Abandoned Object Detection, Removed Object
Detection, Camera Tampering Detection and Passing Detection (Max of
15 detections per camera)
Audio Volume Detection
CONNECTORS
Network Interface RJ-45, 100Base-TX (Auto / Full duplex / Half duplex)
Audio Input (Mic In / Line In) 3.5mm mono mini-jack
Audio Output (Line Out) 3.5mm mono mini-jack
External Device I/O Terminals 2 x Inputs / 2 x Outputs
Memory Card SD, SDHC and SDXC Memory Card Compatible.
MECHANISMS
Pan Angle Range 340° (±170°)
Tilt Angle Range 100º (Ceiling-mounted position: -90º to 10º)
Maximum Rotation Speed Pan: Max. 150º/sec, Tilt: Max. 150º/sec
Infrared Cut Filter Power-driven insertion and removal (Day / Night Modes)
Preset Positions 20 presets (Preset tour capable)
RATINGS
Dimensions (W x H X D) 132mm x 155mm x 132mm
Weight Approx. 1140 g
Power Sources Power over Ethernet (48V DC, Conforms to IEEE 802.3af)
100V – 240V AC, 50/60Hz (via optional AC Adaptor PA-V17)
12V DC or 24V AC (via supplied two-pin connector)
Power Consumption PoE: Max. approx. 9.0 W / AC adapter PA-V17: Max. approx. 10.6 W / DC
Input: Max. approx 8.6 W / AC Input: Max. approx. 8.8 W
Operating Environment Temperature: -10°C to 50°C, Humidity: 5% – 85% RH (without condensation)
WHAT’S IN THE BOX
Main unit, CD-ROM, Power connector, Installation guide
¹ Use of the optional smoked indoor dome housing increases minimum subject illumination.
² The frame rate may be reduced due to Viewer PC’s specs, the number of clients accessing at the same time, network
loads, image quality setting, type or movement of the subject or other reasons.
AlldataisbasedonCanon’sstandardtestingmethods.ThisLeaetandthespecicationsoftheproducthavebeen
developedpriortothedateofproductlaunch.Specicationsaresubjecttochangewithoutnotice.
™and ®: All company and/or product names are trademarks and/or registered trademarks of their respective
manufacturers in their markets and/or countries.
IMAGE SENSOR
Type 1/3 inch CMOS with primary colour filter
Number of Pixels Approx. 2.1 million pixels
Scanning System Progressive
OPTICS
Zoom Magnification and Control 20x powered zoom lens with auto focus (12x digital zoom, delivering
total of 240x zoom)
Focal Length 4.7mm (wide) – 94mm (telephoto)
Horizontal Field of View 60.4° (wide) – 3.2° (telephoto)
Lens F-Number F1.6 – F3.5
Minimum Subject Illumination Day Mode: 0.4 lux (Colour, F1.6 at 1/30 sec, SSC off, 50IRE) ¹
Night Mode: 0.02 lux (Mono, F1.6 at 1/30 sec, SSC off, 50IRE) ¹
Focus Control Auto / One-shot AF / Manual / Fixed at infinity
Focusing Region Day Mode: 0.3 m – infinity (wide) / 1.0 m – infinity (telephoto)
Night Mode: 1.0 m – infinity (wide) / 1.5 m – infinity (telephoto)
Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500,
1/1000, 1/2000, 1/4000, 1/8000 and 1/16000sec
White Balance Auto / One-shot / Preset / Manual
Imaging Modes Day Mode, Night Mode (Auto / Manual / Scheduled)
Metering Modes 3 options: Centre-weighted / Average / Spot Metering
Exposure Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter
Speed, Aperture, Gain)
Exposure Compensation 9 levels
Shade Correction Canon Smart Shade Control (SSC) with 7 levels
AGC Limit 5 levels
Image Stabilizer Electronic (ON1 / ON2 / OFF)
SERVER UNIT
Video Compression Method H.264, JPEG
Video Output Size JPEG: 1920 x 1080, 960 x 540, 480 x 270, 320 x 240
H.264: 1920 x 1080, 960 x 540, 480 x 270
Frame Rate JPEG: 30 – 0.1 fps ²
H.264: 30/15/10/6/5/3/2/1 fps ²
I-Frame Interval 0.5/1/1.5/2/3/4/5 sec.
Simultaneous Distribution JPEG: Max. 30 Clients + 1 Admin Client
H.264: Max. 10 Clients
Audio Communication Full-duplex
Audio Compression Method G.711 μ-law (64 kbps)
Supported Protocols IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP
(Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication,
RTSP, WV-HTTP (Canon), ONVIF
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DNS (Client), ICMPv6,
POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon), ONVIF
AutoIP Supported
Encrypted Communications SSL/TLS, IPsec (Auto Key Exchange/Manual)

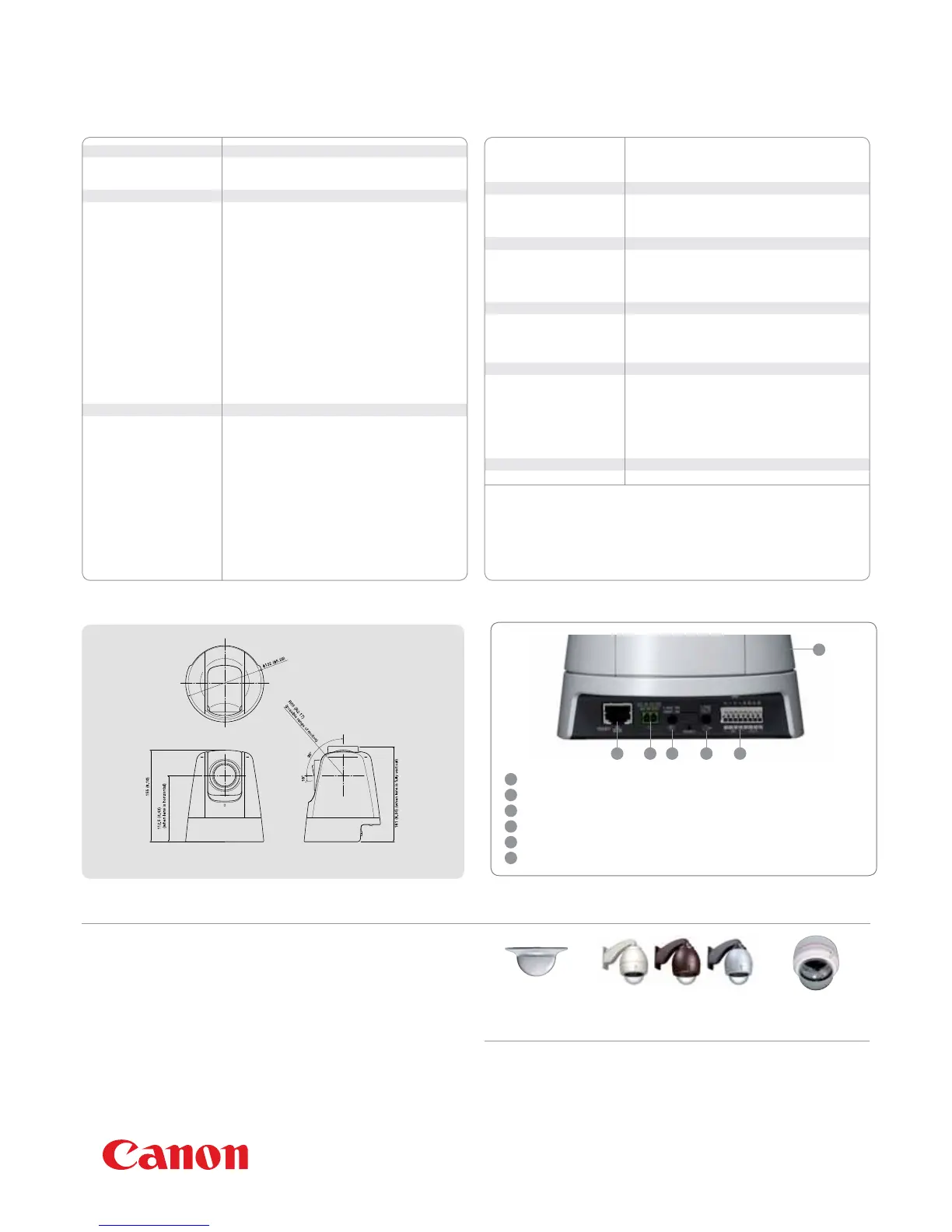

Dimensions
1
Network Interface RJ45, 100Base-TX (Auto / Full-duplex / Half-duplex)
2
Power Connection Terminal 12V DC / 24V AC
3
Audio Input 3.5mm mono mini-jack
4
Audio Output 3.5mm mono mini-jack
5
External Device I/O 2 x Inputs / 2 x Outputs
6
Memory Card Slot SD, SDHC and SDXC Memory Card compatible
Connectivity
2 4 5
6
1 3
All dimensions are in mm
AC Power Supply PA-V17 (Europe)
AC Power Supply PA-V17 (Great Britain)
Indoor Dome Housing Clear DR40-C-VB
Indoor Dome Housing Smoked DR40-S-VB
Ceiling Mount Cover Black SS40-B-VB
Ceiling Mount Cover Silver SS40-S-VB
Video Recording Software RM-9
Video Recording Software RM-25
Video Recording Software RM-64
Optional Accessories
Indoor Clear & Tinted
Recessed Dome
Outdoor Clear & Tinted Dome
with and without Sunshield
(vareity of colour options)
Indoor and Under
Canopy Clear & Tinted
Dome and Vandal
Resistant Dome
For more detailed accessory information please refer to the accessory sales sheet.
