5.10 Spring Mounting
5.11 Solid Mounting
All 06D/E compressors may be solid mounted. Carlyle
offers the 30HR070-1071 solid spacer with four spacers
required for each 06D or 06E compressor. The spacers
are 1-1/8” O.D. x 1” high with a 1/2” diameter through
the hole.
5.12 Electrical Terminal Parts
Special wire terminations are necessary for use with the
06E compressors and must be ordered separately for
proper wire size. These crimp type connectors are avail-
able in the following sizes:
5.13 Conduit Adapter Plates
Electrical conduits are mounted to the 06E terminal box,
by use of an adapter plate. Each compressor is supplied
with conduit adapter plates for the appropriate size con-
duit based on the RLA of the particular compressor.

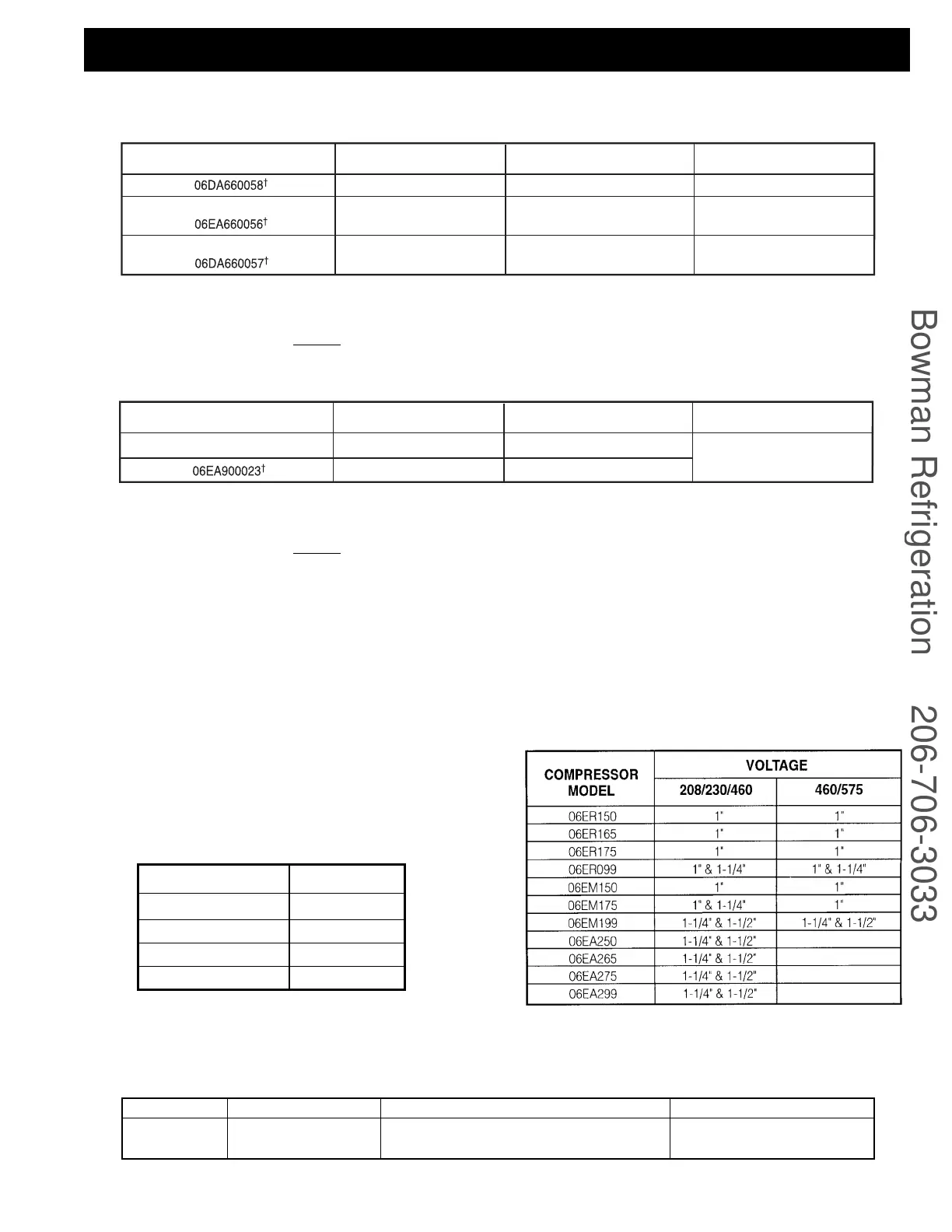

Table 11 shows the conduit plate size provided with each
compressor model.
PACKAGE NO.
QTY/PKG
6D44-492*
6D63-492*
WEIGHT LBS. (KG)
USAGE
All 06D 2 Cylinder
All 06D 2 & 4 Cylinder
All 06D 6 Cylinder
1 Set
12 Sets
1 Set
12 Sets
1 Set
1 (0.5)
7 (3.2)
1 (0.5)
8 (3.6)
1 (0.5)
06D Spring Mounting Package
*The 6D44 & 6D68 packages consist of springs, spring guides and spring cups in quantities sufficient to mount (12) compressors. The spring guide requires a
welded attachment in this design.
†The 06DA660056, 057 & 058 packages consist of mounting springs, retainer, stud flange nut, lock nut, snubber and snubber cap to mount one compressor.
This design uses a flange nut that does not require welding.
PACKAGE NO.
QTY/PKG
06EA660089*
WEIGHT LBS. (KG)
USAGE
All 06E Compressors
1 Set
2 Sets
2 (0.9)
4 (1.8)
06E Spring Mounting Package
*The 06EA900023 package consists of springs, spring guides and spring cups in quantities sufficient to mount (2) compressors. The spring guide requires a
welded attachment in this design.
†The 06DA660089 package consists of mounting springs, retainer, stud flange nut, lock nut, snubber and snubber cap to mount one compressor.
This design uses a flange nut that does not require welding.
TERMINAL PARTS WIRE SIZE
06EA900132 #6
06EA900102 #4
06EA900112 #2
06EA900122 #1/0
PART NO. WEIGHT LBS. (KG) DESCRIPTION USAGE
DE14CA126 1 (0.5) To adapt compressor oil drain plugs from All 06D 4 and 6 cylinder and
SAE fitting to 1/4 NPT 06E compressors
Table 11 – 06E Conduit Sizes Supplied
