9 - DIAGNOSTICS
9.1 - Control diagnostics
Touch Pilot control system has many fault tracing aid functions,
protecting the unit against risks that could result in the failure of
the unit.
The user interface enables the quick display of the unit status:
- The blinking bell icon indicates that there is an alarm, but the
unit is still running.
- The highlighted bell icon indicates that the unit is shut down
due to a detected fault.
The local interface – Touch Pilot – gives the user quick access to
monitor all unit operating conditions. If an operating fault is
detected, the alarm is triggered.
All information regarding the existing alarms (current and past
alarms) can be found in the Alarms menu.

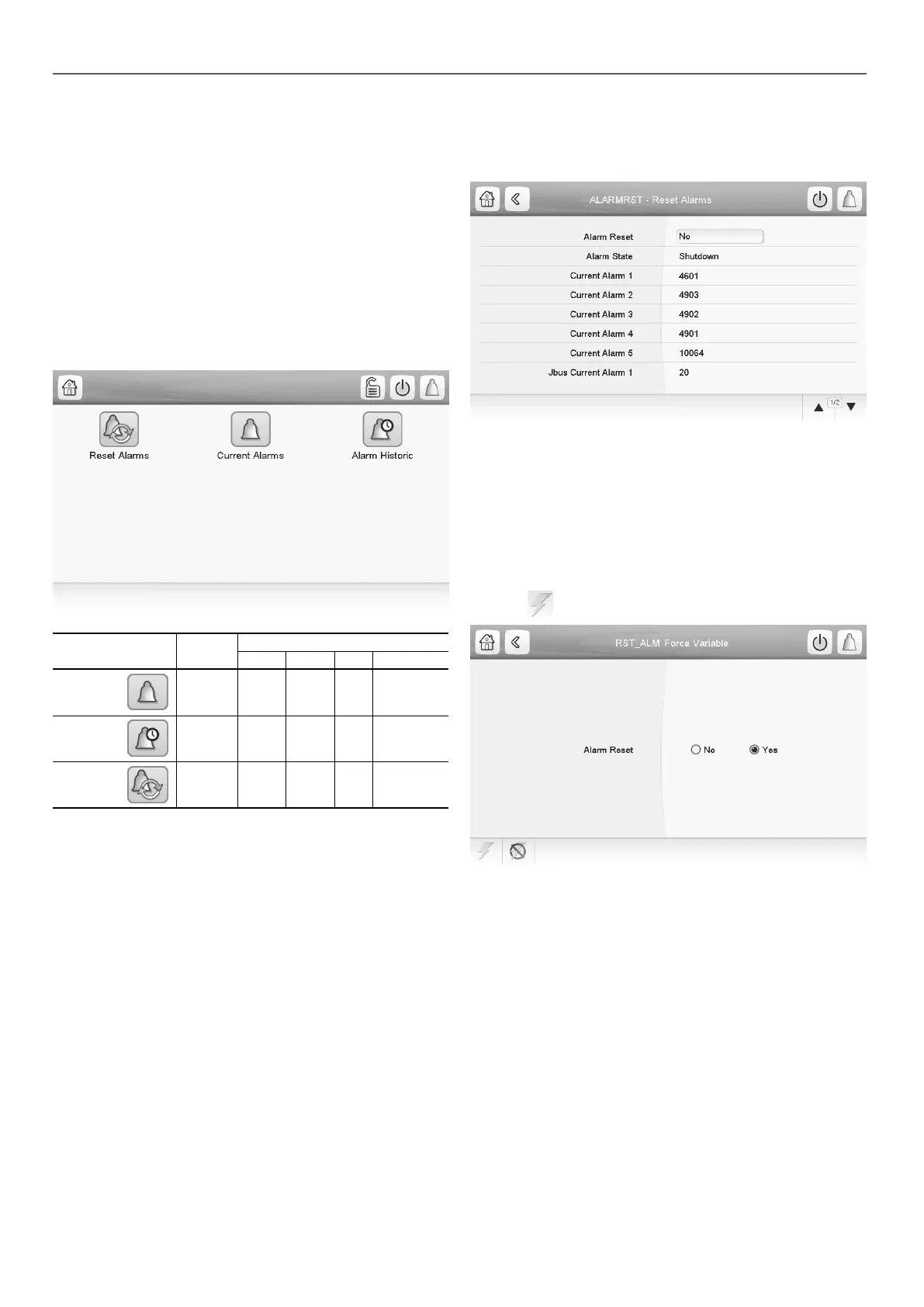

• Press the Alarm button to access the Alarms menu.
Alarms menu Access
Viewing alarm information
Date Hour Code Description
Current
Alarms
Basic + + +
Alarm
Historic
Basic + + +
Reset
Alarms
User +
9.2 - Current alarms
The Current alarms menu may display up to 10 current alarms.
To access the list of currently active alarms
1. Press the Alarm button in the upper-right part of the screen.
2. Select Current Alarms.
3. The list of active alarms will be displayed.
9.3 - Alarms history
The Alarm Historic menu may display up to 50 alarms that occurred
on the unit.
To access the alarm history
1. Press the Alarm button in the upper-right part of the screen.
2. Select Alarm Historic.
3. The history of alarms will be displayed.
9.4 - Resetting alarms
The alarm can be reset either automatically by the control or
manually through the touch panel display or the web interface
(in the Reset Alarms menu).
■ The Reset alarms menu displays up to 5 alarm codes which
are currently active on the unit.
■ Alarms can be reset without stopping the machine.
■ Only logged-in users can reset the alarms on the unit.
To reset the alarm manually
1. Press the Alarm button in the upper-right part of the screen.
2. Select Reset Alarms.
3. Set “Alarm Reset” to Yes.
4. Press to conrm alarm reset.
IMPORTANT: Not all alarms can be reset by the user. Some
alarms are reset automatically when operating conditions
return to normal.
CAUTION: In the event of a power supply interrupt, the unit
restarts automatically without the need for an external
command. However, any faults active when the supply is
interrupted are saved and may in certain cases prevent
a circuit or a unit from restarting.
9.5 - E-mail notications
The control system provides the option to dene one or two
recipients who receive e-mail notications each time the new alarm
occurs or all existing alarms have been reset.
IMPORTANT: E-mail notications can be set only by service
technicians.
