Carrier 30GH 170 User Manual

4
D
F
A
E
C
G
B
D
F
E
C
G
B
A
Legend:
Space required for clearance
Power supply
Water inlet
Water outlet
NOTE :
Dimensional drawings are available on request.

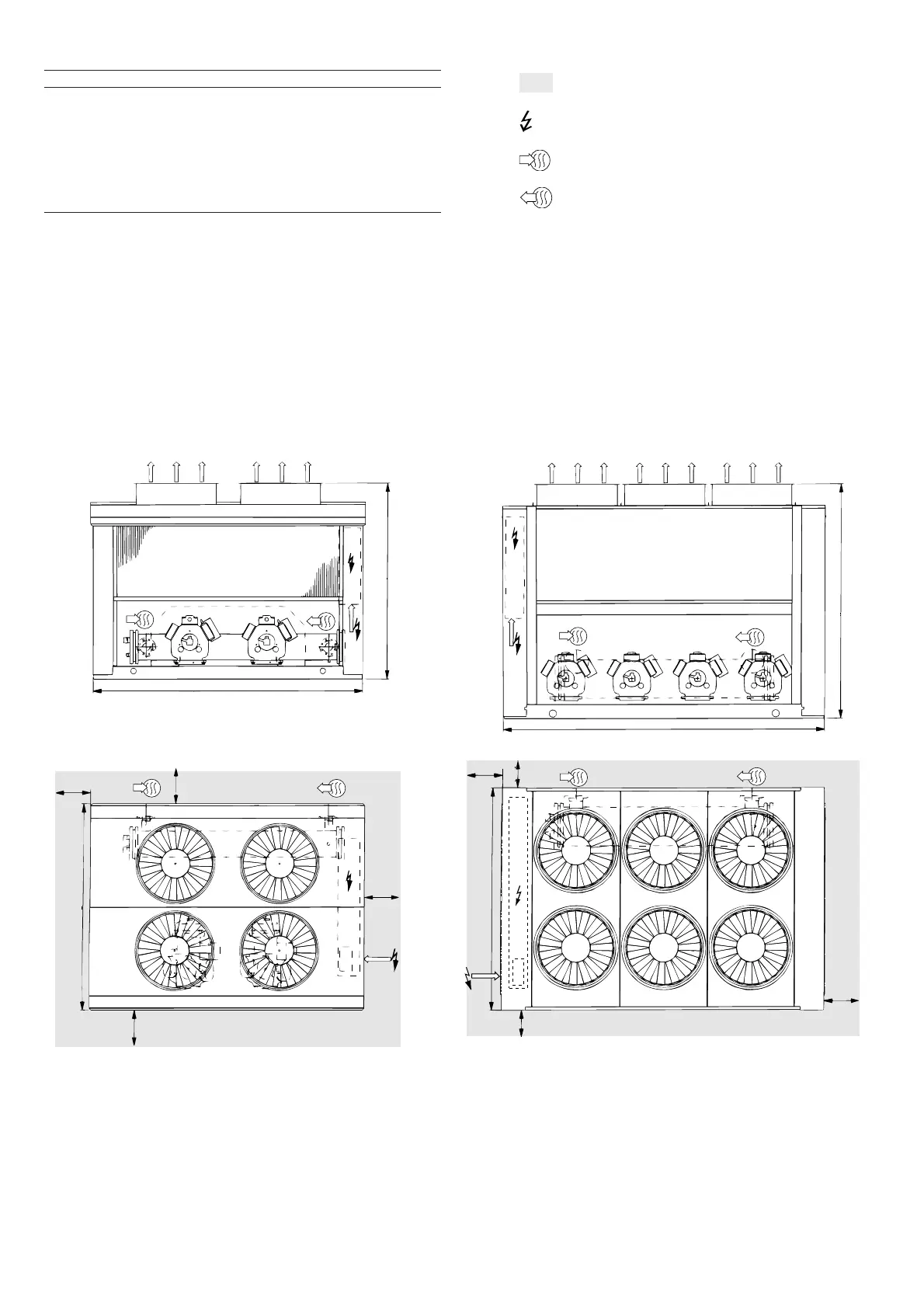

30GH/GZ 040-060 30GH/GZ 085-145
Do not obstruct
30GH/GZ ABCDEF G
040-045 2450 1870 1912 2500 1200 500 1200
050-060 2900 2156 2060 2500 1200 500 1200
085-100 3404 2328 2471 1600 1800 1600 1800
120-145 4322 2328 2471 1600 1800 1600 1800
150-170 6229 2328 2471 1600 1800 1600 1800
190-220 7147 2328 2471 1600 1800 1600 1800
245 8983 2328 2471 1600 1800 1600 1800
Dimensions/clearances (mm)
Do not obstruct
