SG-38MARB-01 Specifications subject to change without notice. 11
WIRING DIAGRAMS (CONT)

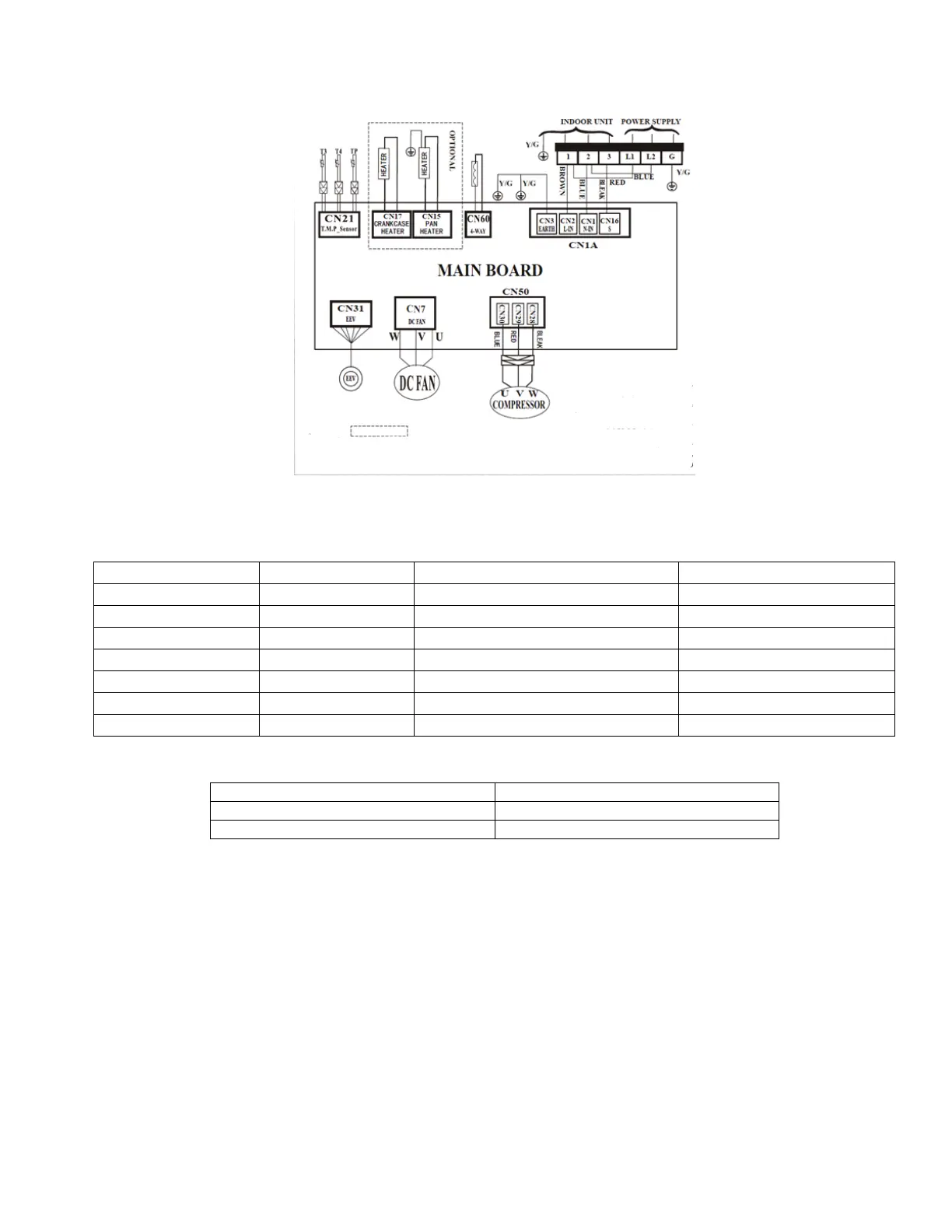

Fig. 11 — Wiring Diagram - Sizes 9-12K (208/230V)
Table 8 — Wiring Diagram - Sizes 9-12K (208/230V)
Table 9 — Wiring Diagram - Sizes 9-12K (208/230V)
CN1A Input 230V AC
CN31 Output 0~12V DC
CN7 Output 0~310V AC
CN60 Output 230V AC
CN21 Output 0~5V DC
CN15 Output 230V AC
CN17 Output 230V AC
CN50 Output 0~310V AC
T3 Condenser Temperature Sensor
T4 Ambient Temperature Sensor
TP Discharge Temperature Sensor
NOTE
This symbol indicates that
the element is optional.
The actual shape shall prevail.
To Next Page
