38MHRC: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
6
WIRING DIAGRAMS (CONT)
A210453

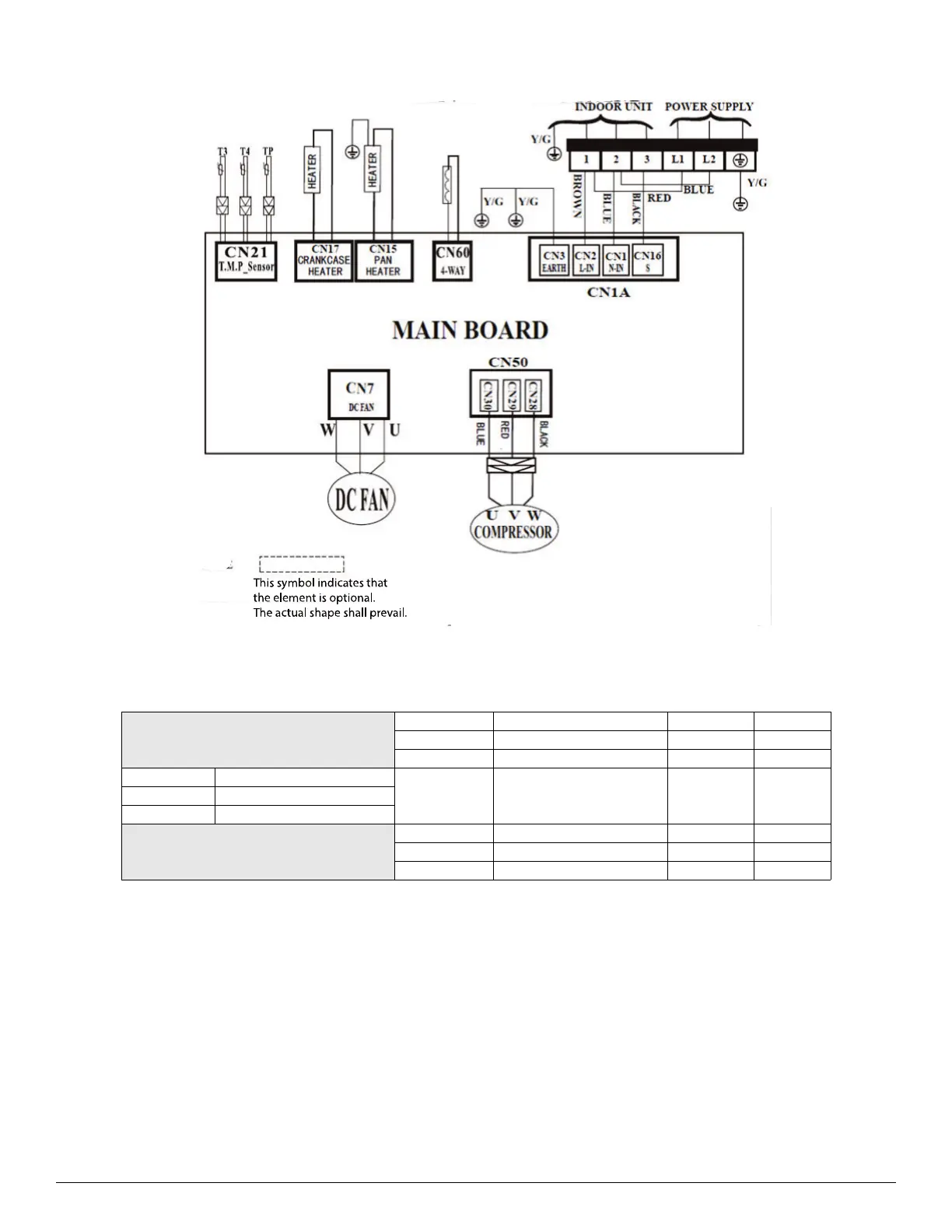

Fig. 4 —Wiring Diagram Sizes 9-18K (208-230V)
Table 4 — Wiring Diagram Sizes 9-18K (208-230V)
CN1A
INPUT
230V
AC
CN7 OUTPUT 0-310V AC
CN60 OUTPUT 230V AC
T3 Condenser TEMP. Sensor
CN21 INPUT 0-5V DCT4 Ambient TEMP. Sensor
TP Discharge TEMP. Sensor
CN15 OUTPUT 230V AC
CN17 OUTPUT 230V AC
CN50 OUTPUT 0-310V AC
