38MHRC: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
26
TROUBLESHOOTING
Safety
Electricity power is kept in capacitors even if the power supply is shut off.
NOTE: Remember to discharge the electricity power in capacitor.
A210482

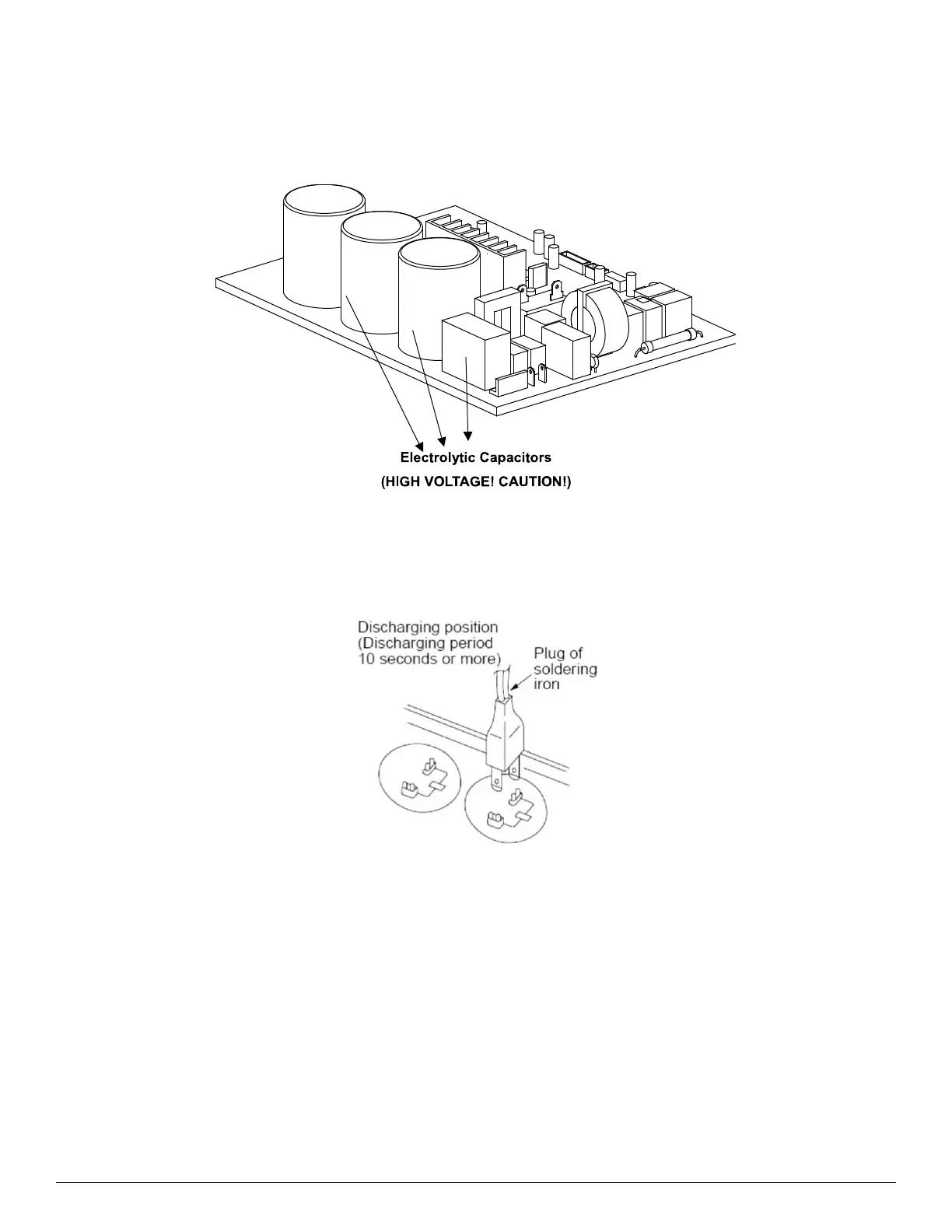

Fig. 30 —Electrolytic Capacitors
For other models, connect the discharge resistance (approximately 100 40W) or a soldering iron (plug) between the +, - terminals of the electrolytic
capacitor on the contrary side of the outdoor PCB.
A210484
Fig. 31 —Discharge Position
NOTE: Figure 31 is for reference only. The plug on your unit may differ.
