11

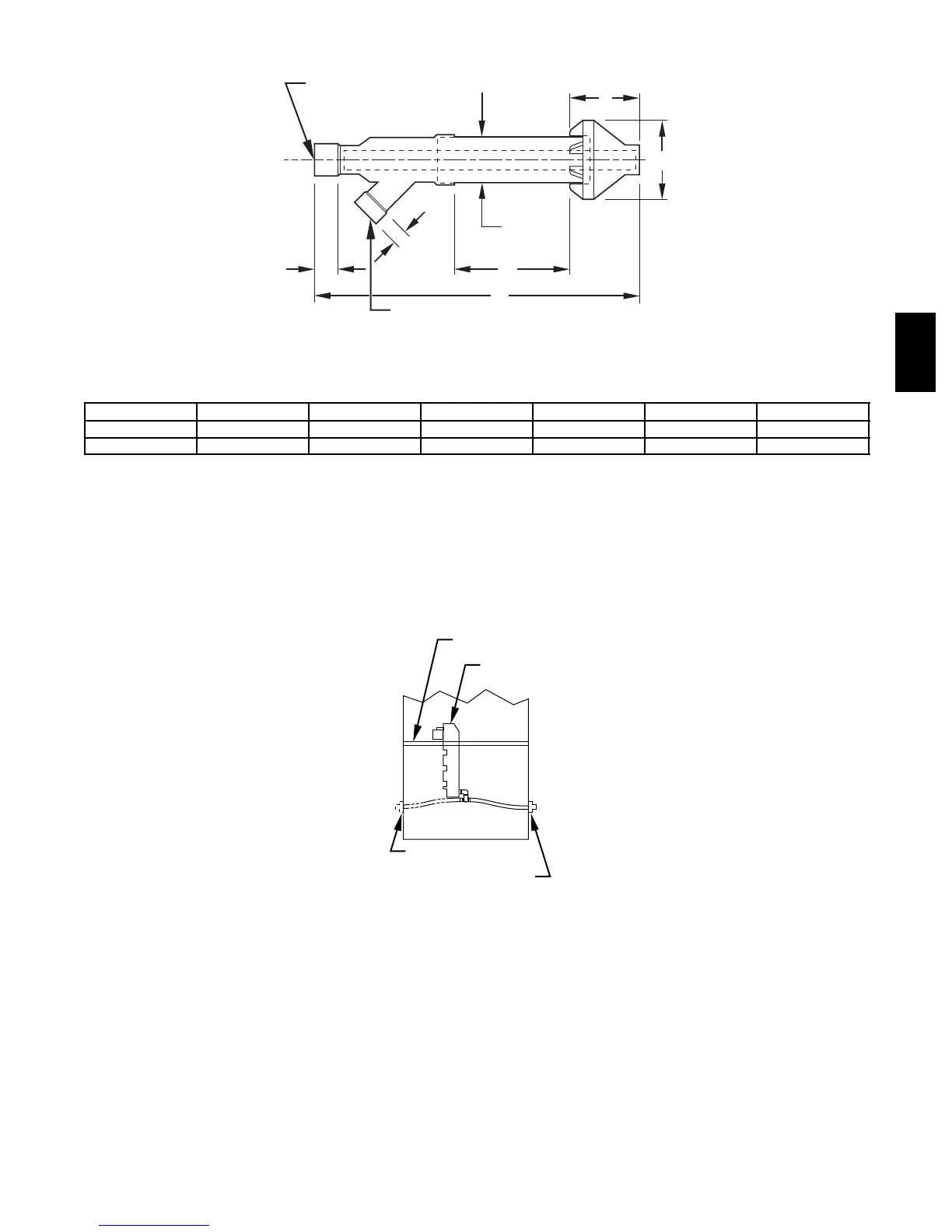

CONCENTRIC VENT (DIRECT VENT/2--PIPE ONLY) (ALL MODEL SIZES)
C IN. DIA
B IN. DIA PVC
VENT/EXHAUST
1
3
/ 16
B IN. DIA PVC
INTAKE/COMBUSTION AIR
D
E
F
A
1
1
/2
A97110
Dimensions (In / mm)
KITPARTNO. A* B C D{ E F
KGAVT0701CVT 33--- 3/8 (847.7) 2 (50.8) 3 ---1/2 (88.9) 16--- 5/8 (422.3) 6--- 1/4 (158.8) 5--- 3/4 (146.1)
KGAVT0801CVT 38--- 7/8 (987.4) 3 (78.2) 4--- 1/2 (114.3) 21--- 1/8 (536.6) 7--- 3/8 (189.3) 6--- 1/2 (165.1)
* Dimension A will change proportionally as dimension D is lengthened or shortened.
{ Dimension D may be lengthen ed to 60 in. (1524 mm) maximum. Dimension D ma y also be shortened by cutting the pipes provided in the kit to 12 in. (304.8
mm) minimum.
CONDENSATE TRAP
CONDENSATE
TRAP (INSIDE)
BLOWER SHELF
ALTERNATE DRAIN
TUBE LOCATION
UPFLOW APPLICATIONS
CONDENSATE TRAP
DRAIN TUBE LOCATION
A06450
