— 5 —

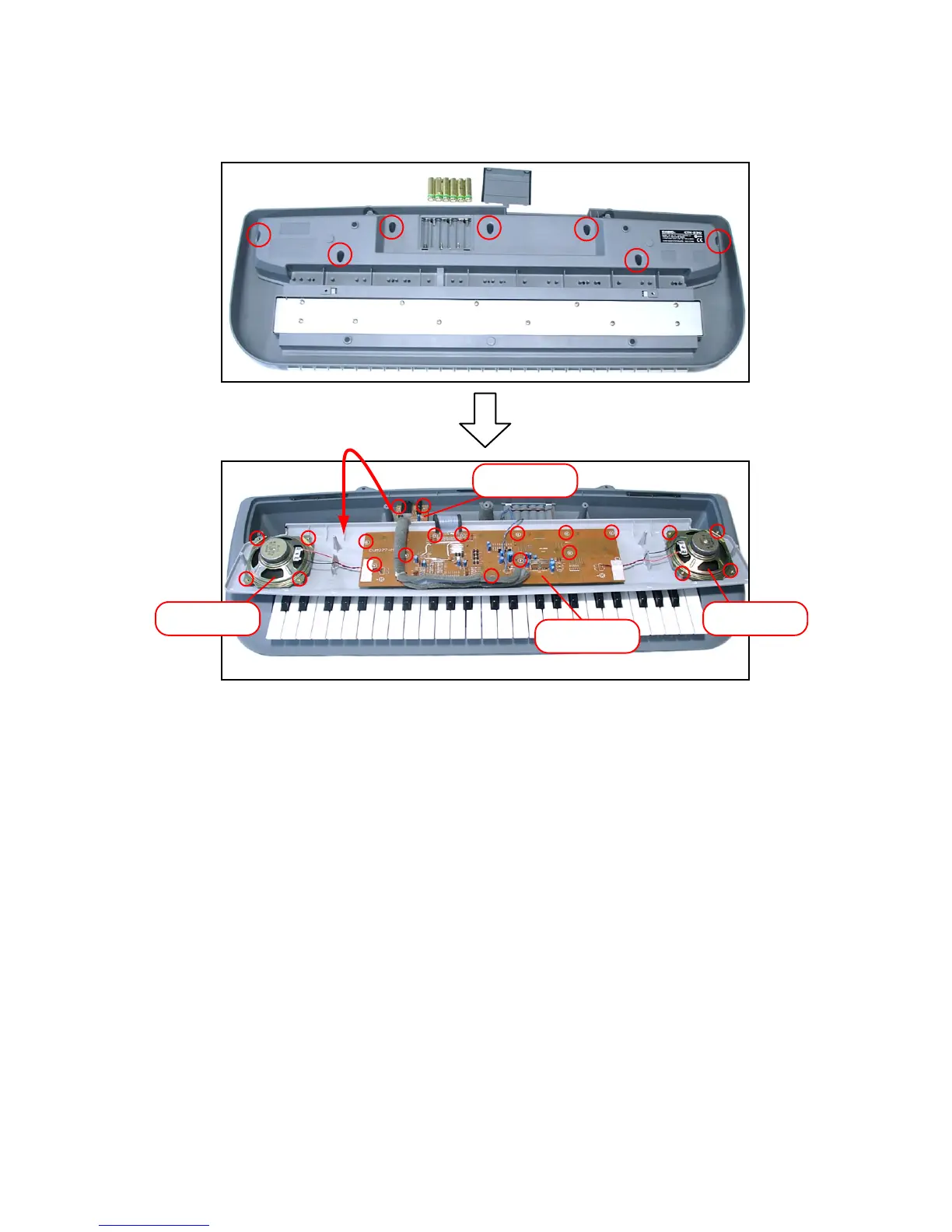

DISASSEMBL
Y
Main PCB
JACK PCB
Speaker
Speaker
1.
Remove the battery cover and then take out the battery
.
2.
Remove 7 screws and then the console panel.
3.
Remove 12 screws and then the Main PCB.
4.
Remove 2 screws and then the JACK PCB.
5.
Remove 8 screws and then the Speaker
.
6
8
Table of Contents
Table of Contents
2
Specifications
3
Block Diagram
4
Circuit Description
5
Printed Circuit Board
6
Disassembly
7
Diagnostic Program
8
Schematic Diagrams
10
Exploded View
12
Parts List
13
