E-10
1
An indicator appears next to the type of setting you are currently performing (TONE, RHYTHM,
SONG BANK).
2
Tone number, rhythm number, song number, keyboard settings value
3
Rhythm, auto-accompaniment, Song Bank tune beats
4
Tone name, rhythm name, song name, mode name, keyboard settings name
5
Musical staff representation of notes and chords you play on the keyboard. A pedal indicator ( )
appears when the keyboard's pedal is depressed. An octave indicator ( ) appears when you
play notes in the range from C
6 to C7 to indicate that their actual notation is one octave higher
than that shown on display.
6
Uses a graphic keyboard to show notes and chords played on the keyboard or played during Song
Bank tune playback
7
Auto-accompaniment, Song Bank, chord book chord names
8
Dots indicate fingerings during Song Bank playback. “L” and “R” indicate left-hand and right-
hand parts.
9
Rhythm, auto-accompaniment, Song Bank tune tempo
10
Rhythm, auto-accompaniment, Song Bank tune tempo; volume setting
11
Song Bank controller indicators
❚
NOTE
• Display examples shown in this User’s Guide are intended for illustrative purposes only. The actual text and values that appear on the
display may differ from the examples shown in this User’s Guide.

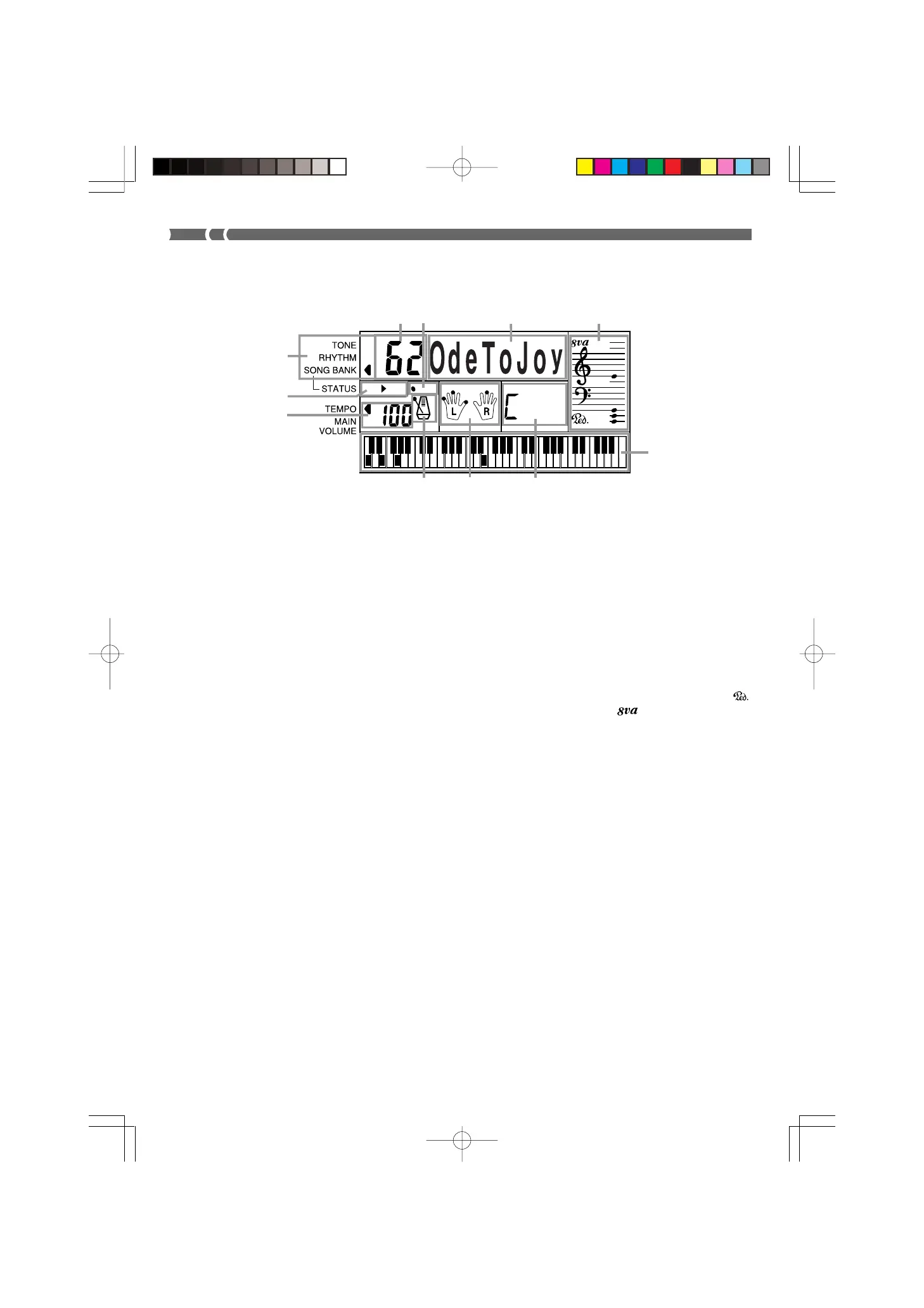

Using the Display
• This is how the display appears
while the Song Bank is in use.
625A-E-012A
4
1
2
5
11
3
7
8
9
10
