VR100
T201T200
ADJUSTMENT
LINEAR PCB
Items to Be Adjusted
Item Measuring Instrument
VCC2-1 voltage setting Voltmeter
Video detection coil adjustment TV signal generator, pattern generator, oscilloscope,
low-pass filter
AFT coil adjustment Sweep generator, oscilloscope, voltmeter
Contrast adjustment TV signal generator, pattern generator, oscilloscope
Tint adjustment TV signal generator, pattern generator, oscilloscope
AGC adjustment TV signal generator, pattern generator, IF levelmeter
Vcom adjustment Photo diode, photo sensor amp., bandpass filter, oscilloscope
Free-Running frequency adjustment Frequency counter

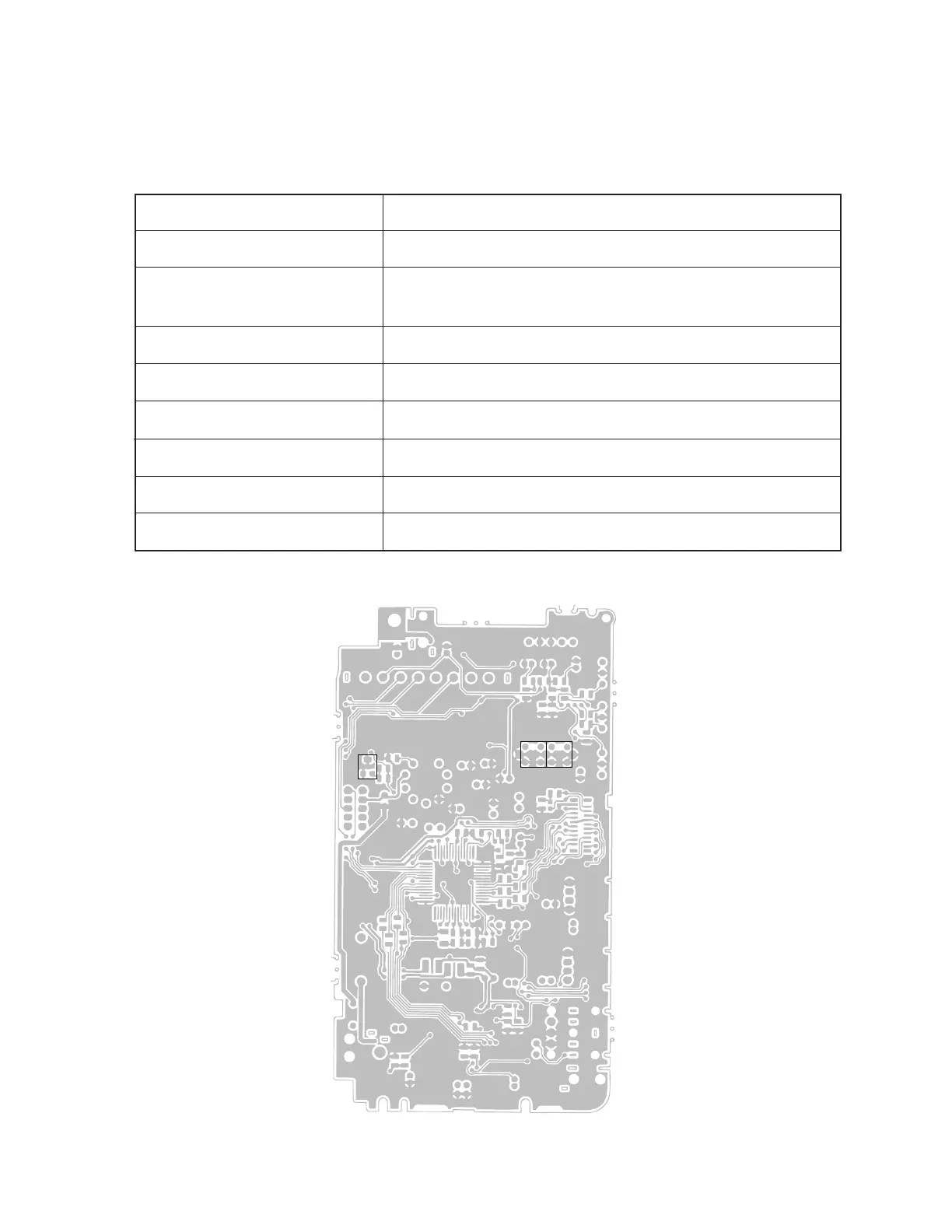

Adjustment and Test Point Locations
Top View

Casio EV-500C Specifications

General

Brand	Casio
Model	EV-500C
Category	Portable TV
Language	English
