Appendix
The numbers in parentheses indicate the pages where each item is explained.
. Camera
.
Charger Unit

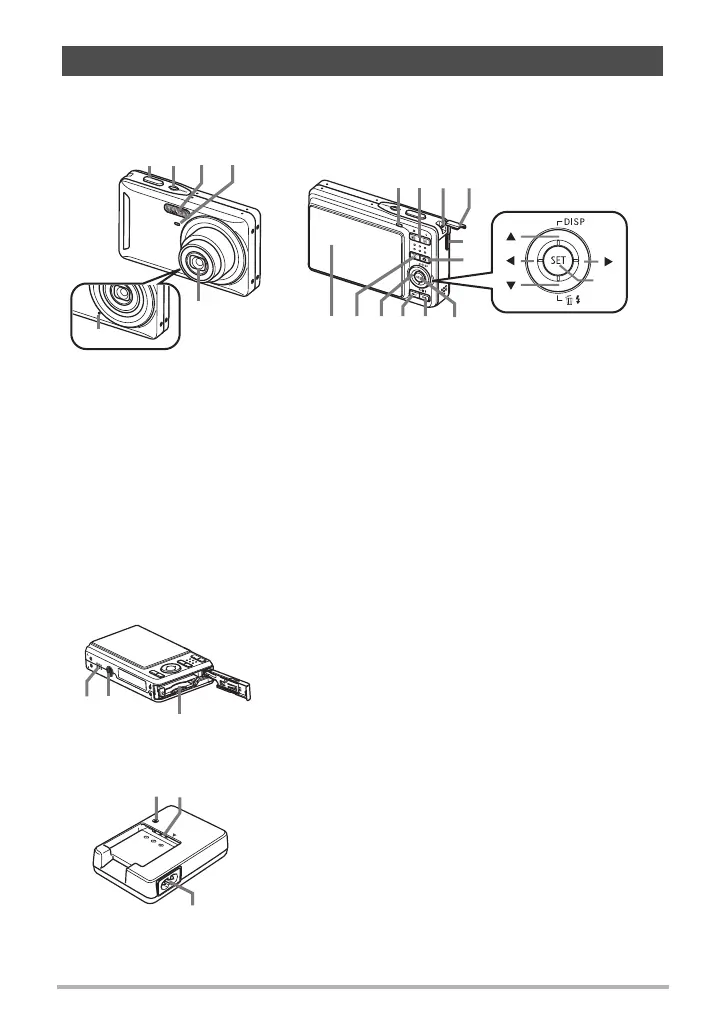

General Guide
1
Shutter button (page 16)
2
[ON/OFF] (Power)
(page 22)
3
Flash (page 26)
4
Front lamp
(pages 18, 52)
5
Lens
6
Microphone
(pages 39, 68)
7
Back lamp
(pages 16, 22, 26)
8
Zoom button
(pages 16, 36, 62)
9
Strap hole (page 2)
bk
Connector cover
bl
USB/AV port
(pages 63, 72, 80, 89)
bm
[r] (REC) button
(pages 16, 22)
bn
[SET] button (page 23)
bo
[BS] button (page 42)
bp
[MENU] button
(page 46)
bq
Control button
([8][2][4][6])
(page 23)
br
[p] (PLAY) button
(pages 19, 22)
bs
Monitor screen
(pages 105, 122)
3
4
21
5
6
87 9bk
bl
bm
bobpbqbrbs bn
[ ]
[ ]
[ ]
[ ]
[
SET
]
Front Back
bt
Battery/memory card slots (pages 11, 14, 116, 118)
ck
Tripod hole
Use this hole when attaching to a tripod.
cl
Speaker
ckcl
bt
Bottom
3
2
1
1
[CHARGE] Lamp
2
+- Contacts
3
AC jack
