E-13
White
Red
PIN plug
Stereo standard plug
PHONES/OUTPUT jack
Keyboard amp,
guitar amp, etc.
Audio connection
1
LEFT
RIGHT
AUX IN or similar terminal
of audio amplifier
2
3

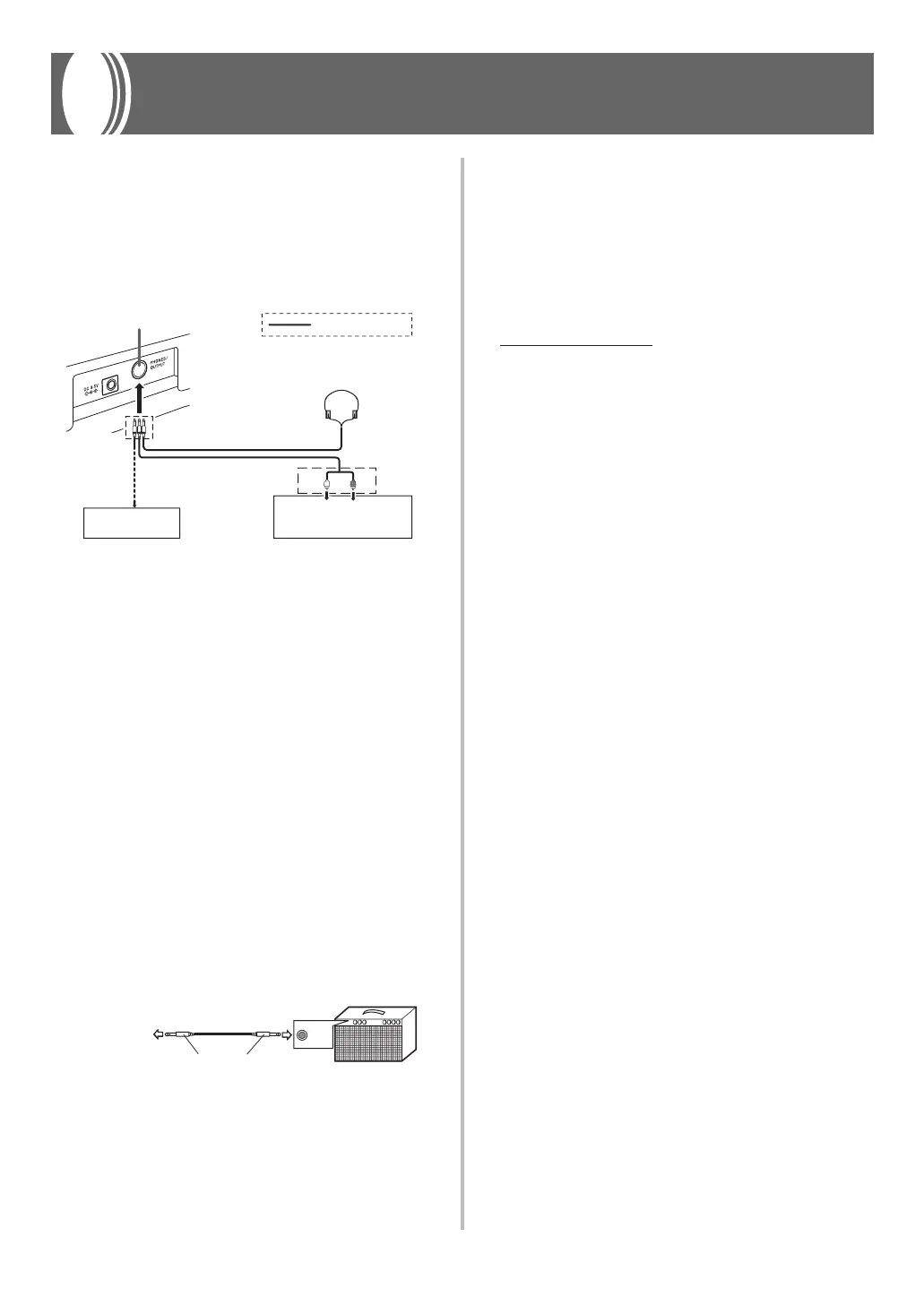

Connections
Phones/Output Jack
Before connecting headphones or other external equipment,
be sure to first turn down the volume settings of the keyboard
and the connected equipment. You can then adjust volume
to the desired level after connections are complete.
[Rear Panel]
Connecting Headphones (Figure
1
)
Connecting headphones cuts off output from the keyboard’s
built-in speakers, so you can play even late at night without
disturbing anyone.
Audio Equipment (Figure
2
)
Connect the keyboard to an audio equipment using a
commercially available connecting cord with a standard plug
on one end and two PIN plugs on the other end. In this
configuration, you normally set the input selector of the audio
equipment to the terminal (usually marked AUX IN or
something similar) where the cord from the keyboard is
connected. See the user documentation that comes with your
audio equipment for full details.
Musical Instrument Amplifier (Figure
3
)
Use a commercially available connecting cord to connect the
keyboard to a musical instrument amplifier.
NOTE
• Be sure to use a connecting cord that has standard plugs on
the ends you connect to the keyboard and amplifier.
[Connection Example]
Keyboard or guitar amp
To keyboard’s
PHONES/OUTPUT
jack
Standard plug
INPUT
Accessories and Options
Use only the accessories and options specified for this
keyboard. Use of non-authorized items creates the danger of
fire, electrical shock, and personal injury.
• You can get information about accessories that are sold
separately for this product from the CASIO catalog
available from your retailer, and from the CASIO website
at the following URL.
http://world.casio.com/
