— 5 —

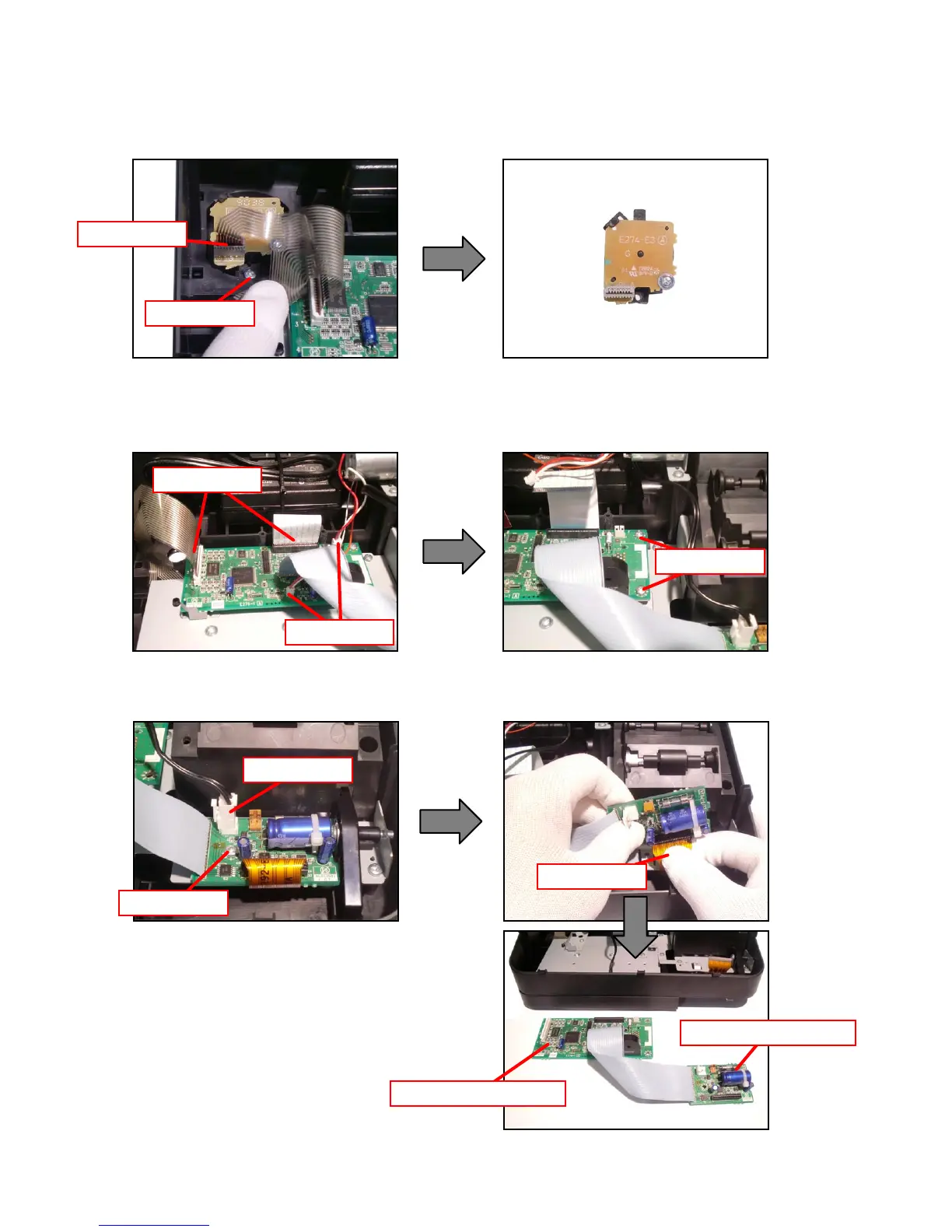

B. MODE-KEY
-SW-ASSY
B-1.
Remove the FPC.
B-2.
Undo one screw (S2) and remove the Mode-Key-SW-ASSY
.
Screw (S2)
FFC
C. PCB-ASSY (E276-1 and E276-PR PCBs)
C-1.
Remove two FFCs and two connectors.
C-2.
Undo two screws (S1) and remove the E276-1 PCB.
C-3.
Remove one connector (S1) and undo one screw (S1).
C-4.
Remove the FFC and remove the E276-PR PCB.
Connectors
Connector
FFCs
E276-PR PCB
E276-1 PCB
Screws (S1)
FFC
Screw (S1)
