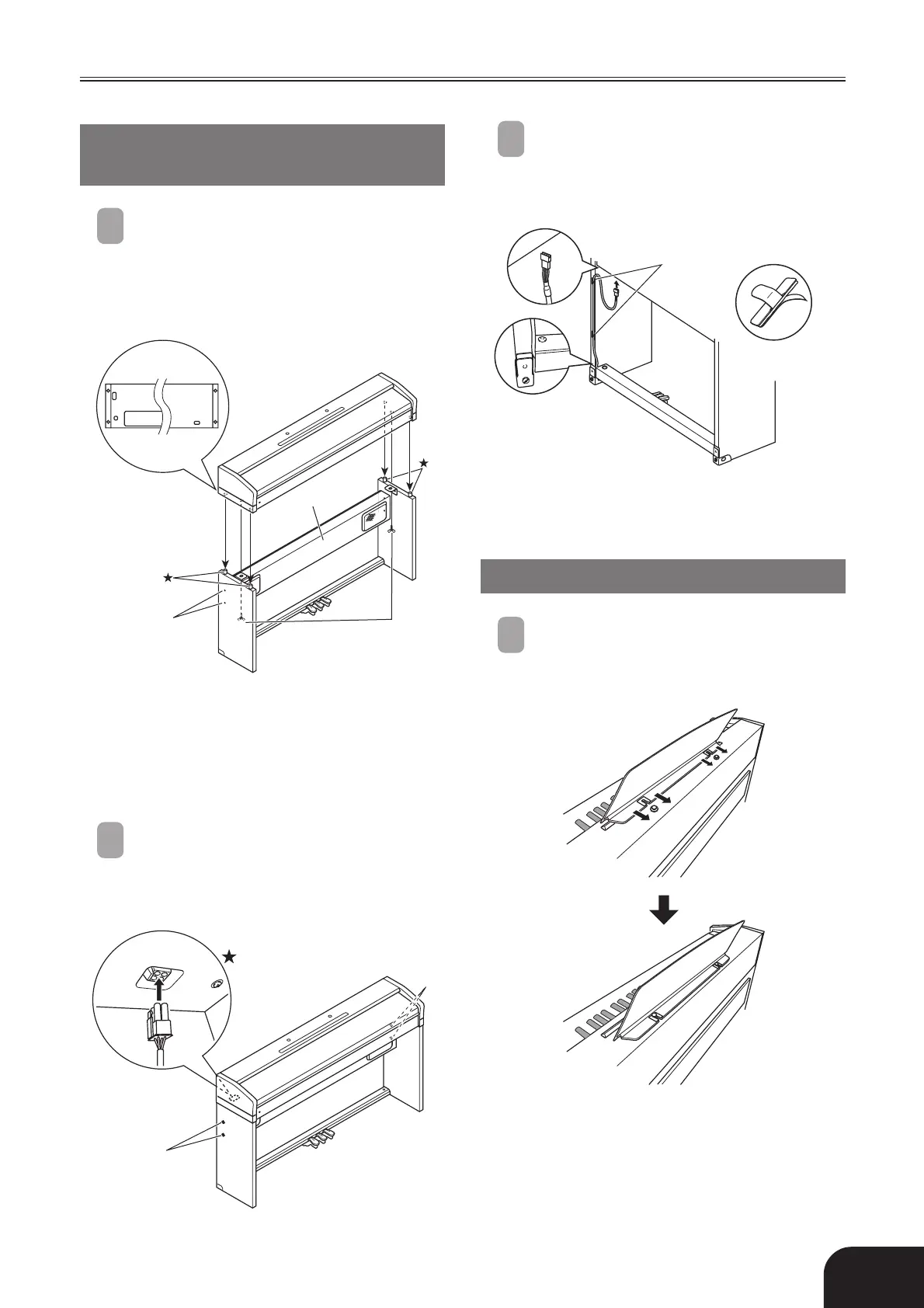

Assembling the Stand
406A-E-019A
Mounting the Digital Piano
onto the Stand
9
Place the digital piano onto the stand.
• At this time, make sure that the pegs on the
stand (indicated by 앲 in the illustration) enter
the holes in the bottom of the digital piano.
• Use the butterfly bolts K to secure the digital
piano to the stand.
E
E
D
K
C
Important!
If the stand pegs do not align properly with the
holes in the digital piano, loosen the screws D that
secure one of the side panels to the speaker box C
(one side only) one or two turns. Next, mount the
digital piano. After the digital piano is mounted
properly, retighten the screws D that you loosened.
10
Connect the cable to the speaker connector
(indicated by 앲 in the illustration).
• Cover each of the four side panel screws with
screw caps E.
11
Orienting the pedal unit plug as shown in
the illustration, plug it into the pedal
connector on the bottom of the digital piano.
Secure the pedal cord with the clips H.
• Attach the clips H at two locations to the stand’s
side panel as shown in the illustration.
Installing the Music Stand
1
Slide the music stand under the two bolts
on the top of the digital piano and then
tighten the bolts.
H
