Casio XJ-V10X Setup Guide

EN-13

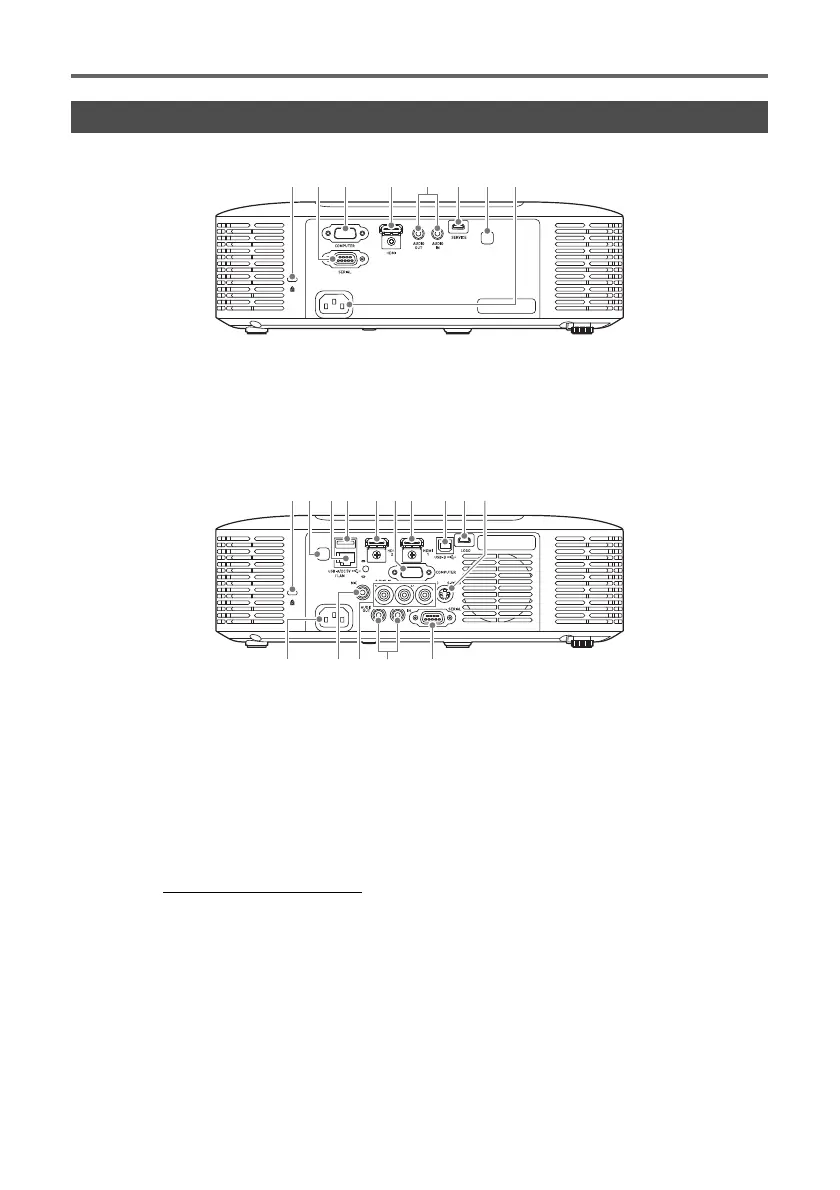

General Guide
XJ-V Series
XJ-F Series
* The anti-theft lock hole is provided for connection of an anti-theft chain. Visit the Kensington Lock
Website at https://www.kensington.com/
for more information.
Back Terminals

Anti-theft lock hole*

SERIAL terminal

COMPUTER terminal

HDMI terminal

AUDIO OUT / AUDIO IN terminals

SERVICE port

Remote control signal receiver

Power connector

Anti-theft lock hole*

Remote control signal receiver

LAN terminal (Network models only)

DC 5V port (XJ-F10X/XJ-F100W)
USB-A/DC 5V port (XJ-F20XN/XJ-F200WN/
XJ-F210WN)

HDMI 2 terminal

COMPUTER terminal

HDMI 1 terminal

USB-B port (Network models only)

LOGO port

S-VIDEO terminal

Power connector

MIC terminal (Network models only)

AUDIO IN R / AUDIO IN L / VIDEO terminals

AUDIO OUT / AUDIO IN terminals

SERIAL port
   

(2 (3 (4 (5 (6
    (1 
D

Casio XJ-V10X Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	4:3
Projection distance	1.95 - 2.87 m
Projection technology	DLP
Contrast ratio (typical)	20000:1
Screen size compatibility	30 - 300 \
Projection distance (tele)	3.33 - 4.85 m
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	+ 30/ ± 30 °
Focus	Manual
Offset	50 %
Digital zoom	2 x
Optical zoom	1.5 x
Zoom capability	Yes
Focal length range	2.31 - 2.73 mm
DVI port	No
Audio (L/R) in	0
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Maximum digital resolution	1920 x 1080 pixels
Operating temperature (T-T)	5 - 35 °C
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	-
Power consumption (standby)	180 W
Service life of light source	10000 h
Service life of light source (economic mode)	6000 h
Analog signal format system	NTSC, PAL, PAL 60, PAL M, PAL N, SECAM

Weight and Dimensions

Width	299 mm
Height	97 mm
Weight	3500 g
