CDA MC21 User Manual

ATTENTION：The following steps are for the Microwave Oven models with the Built-in Trim Kit
Frame Only.

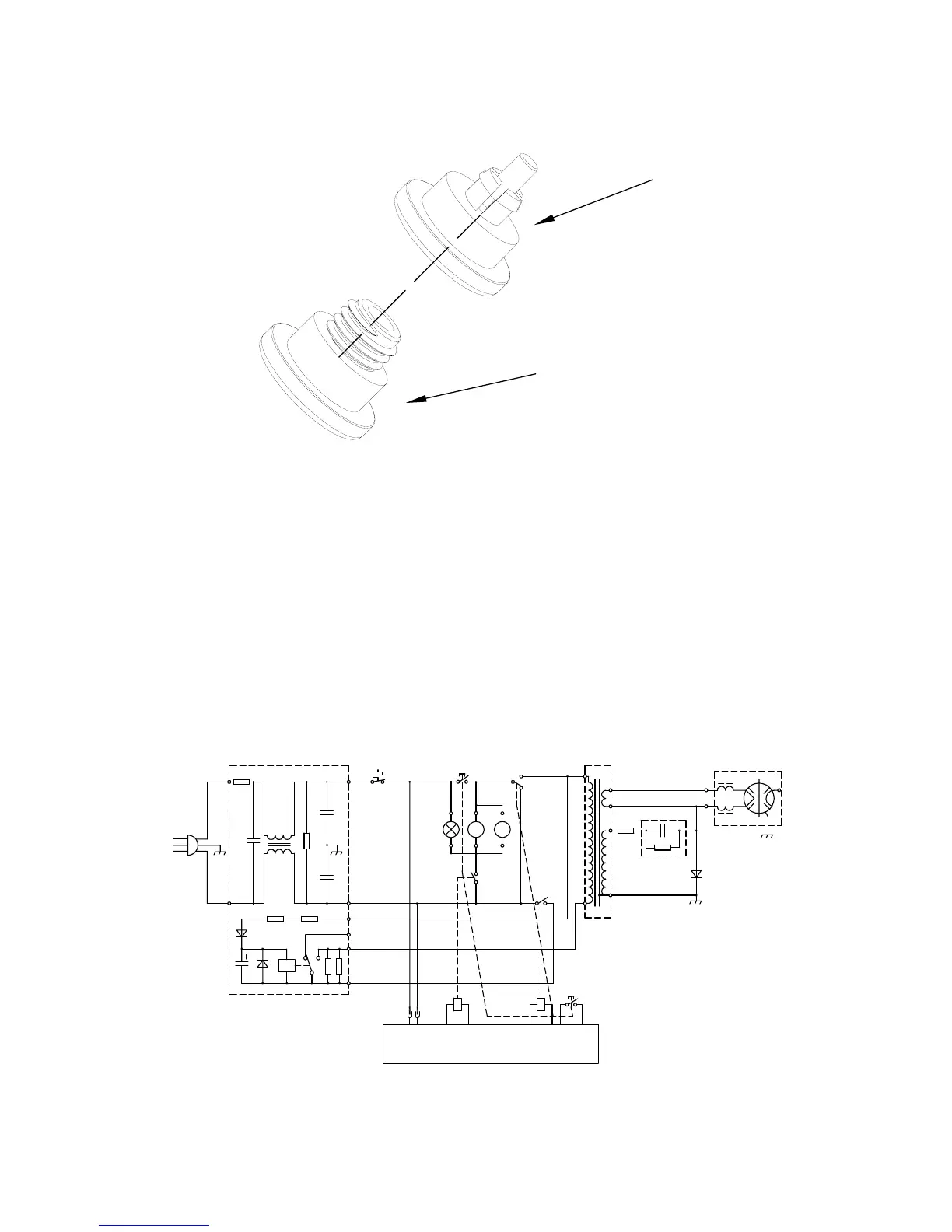

1. After taking all the accessories out of the microwave oven, turn the microwave oven over on its
back and keep the base of the microwave oven facing towards you.
2. Remove the adjustable feet (Fig. No. 2) from the plastic bag and screw them into the holders
(Fig. No. 1), one by one.
3. Once all 4 feet are fitted, turn the microwave oven back over onto its feet to check if the adjust-
able feet are level. If the microwave oven is unstable, adjust the feet by screwing them up or down
accordingly.
1
2
MAGNETRON
TRANSFORMER
*CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE
L
SCHEMATIC DIAGRAM
( DOOR OPENED,COOK OFF CONDITION)
SWC: THE MONITOR INTERLOCK SWITCH
SWB: SECONDARY INTERLOCK SWITCH
SWA: PRIMARY INTERLOCK SWITCH
C1
L
NOISE FILTER
F1
C3
FU
C4
NEL
N
R1
R2R3
D1
L
D2
RY
T( IN)
P( OUT)
N
C2
R4-2
SW2
R4-1
SH
SWA SWC
C
FA
F
GND
CONTROLLER
FM
L
JP1-1 JP1-2
RY
K4
TM
RY
K3
SO
F2
L: LAMP
SWB
D_ SW
D
FM: FAN MOTOR
TM: TURNTABLE MOTOR
10
