SAFETY
Rear View

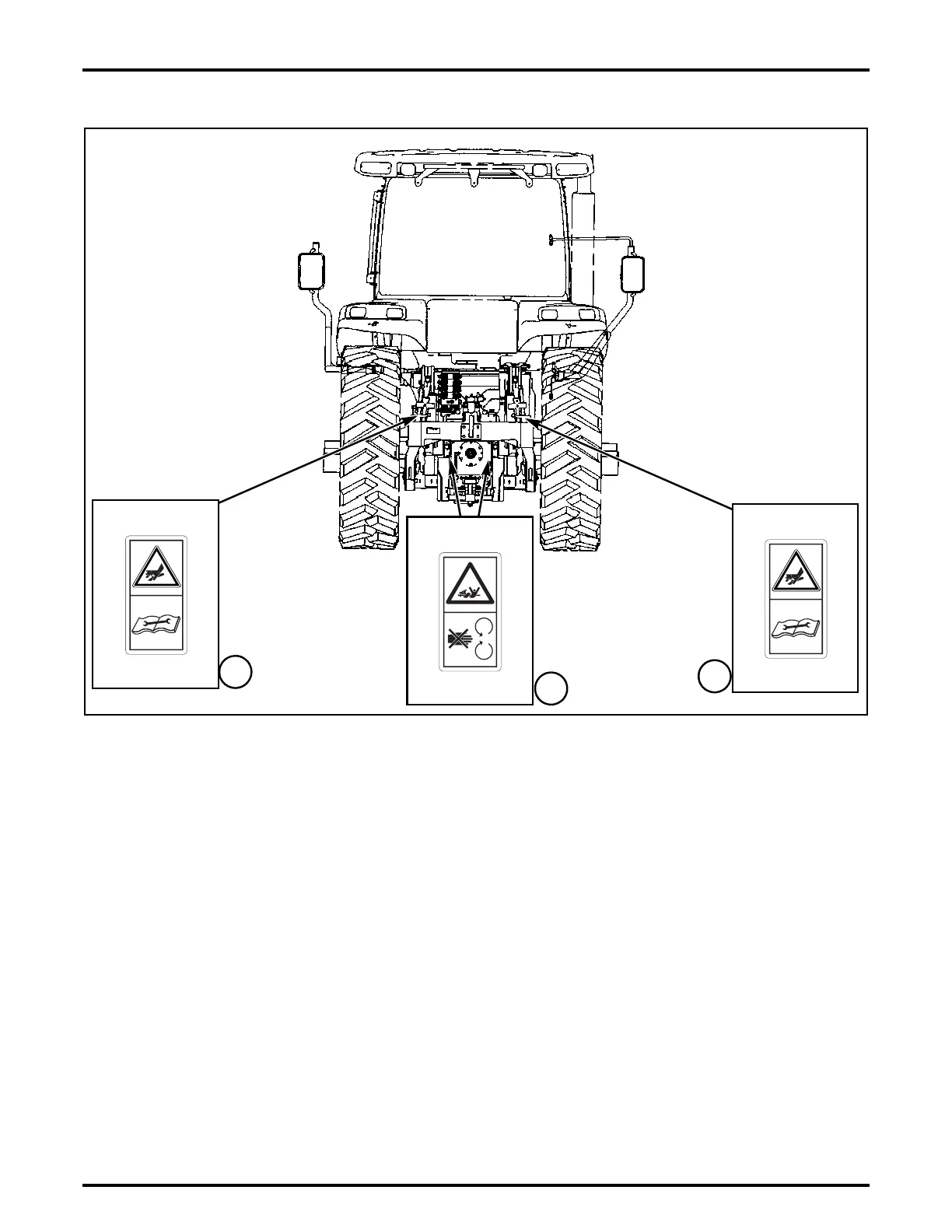

FIG. 16: Rear View
(1) 501264D1 Power Take Off.
The safety signs are located on each side of the PTO
shaft
To avoid personal injury due to entanglement with rotating
shaft, keep PTO master cover and all power drive system
covers in place. Install PTO shaft guard when the system
is not in use.
(2) 501260D1 Fluid Penetration.
The safety signs are located on the Three Point lift
cylinders for both sides.
Fluid escaping under pressure, even a pinhole-sized leak,
can penetrate body tissue, causing serious injury, and
possible death. Always use a board or cardboard when
checking for a leak. If fluid is injected into your skin, a
doctor familiar with this type of injury must treat it
immediately.
FIG. 16
2
2
1
501264D1 1
501260D1 1
501260D1 1
501260D1
ch-0034
501264D1
501260D1
