Chamberlain 1345M User Manual

38

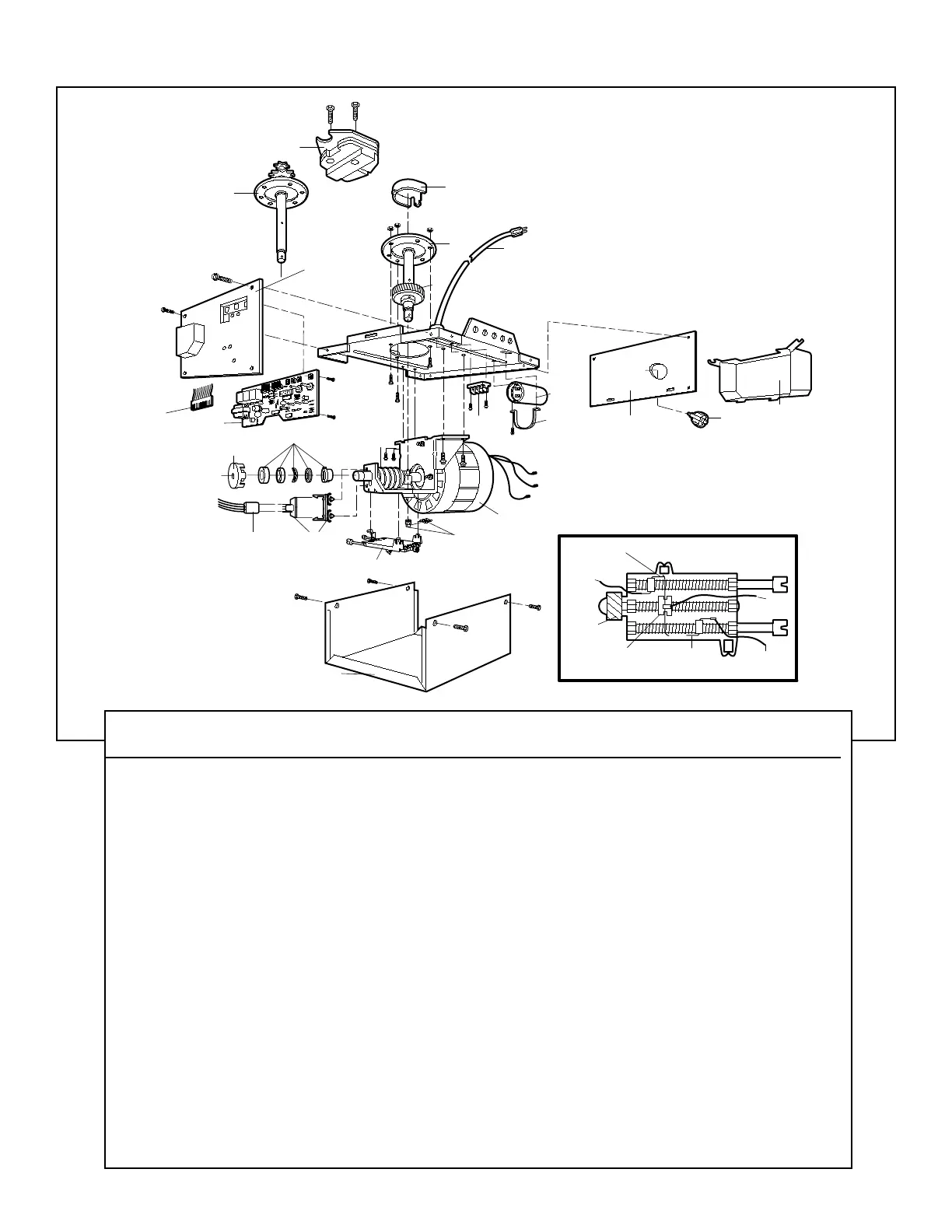

Motor Unit Assembly Parts
2
1
2A
10
8
13
14
15
16
19
4
3
DN
UP
Brown
Wire
(Down)
Contact
LIMIT SWITCH ASSY.
Grey
Wire
Yellow
Wire
(Up)
Contact
Center Limit
Contact
Drive
Gear
9
20
16
12
18
11
17
3
1A
5
6
7
KEY PART
NO. NO. DESCRIPTION
1 41A4208-2 Chain spreader w/screws
(1356M, 1346M)
1A 31D380 Sprocket cover (1355M, 1345M)
2 41C4206 Gear and sprocket assy.
(1356M, 1346M)
2A 41C4220A Gear and sprocket assy. (1355M,
1345M) Complete with:
Spring washer, Thrust washer,
Retaining ring, Bearing plate, Roll
pins (2), Drive gear and worm gear,
Helical gear w/retainer and grease
3 41A2817 Drive/worm gear kit w/grease,
Roll pins (2)
4 41B4245 Line cord
5 143D100 End panel w/all labels
6 175B88 Light socket
7 108D36-2 Lens
8 30B532 Capacitor - 1/2HP
30B533 Capacitor - 1/3HP
9 12A373 Capacitor bracket
10 41A3150 Terminal block w/screws
KEY PART
NO. NO. DESCRIPTION
11 41D3058 Universal replacement motor &
bracket assy. Complete with:
Motor, worm, bracket, bearing
assembly, RPM sensor.
12 41A3583-11 Cover 1/2HP (1356M, 1355M)
41A3583-15 Cover 1/3HP (1346M, 1345M)
13 41A2818 Helical gear & retainer
w/grease
14 41D3452 Limit switch assembly
15 41C4398A RPM sensor assembly
16 41C4246 Wire harness assy. w/plug
17 41A2826 Shaft bearing kit
18 41A2822A Interrupter cup assy.
19 41A5021-1M-315 Receiver logic board assy.
Complete with: Logic board,
End panel w/all labels, Light
socket
20 41A5014-3 End panel w/all labels
NOT SHOWN
41A2825 Opener assy. hardware kit
(includes screws not designated
by a number in illustration).

Chamberlain 1345M Specifications

General

Brand	Chamberlain
Model	1345M
Category	Garage Door Opener
Language	English
