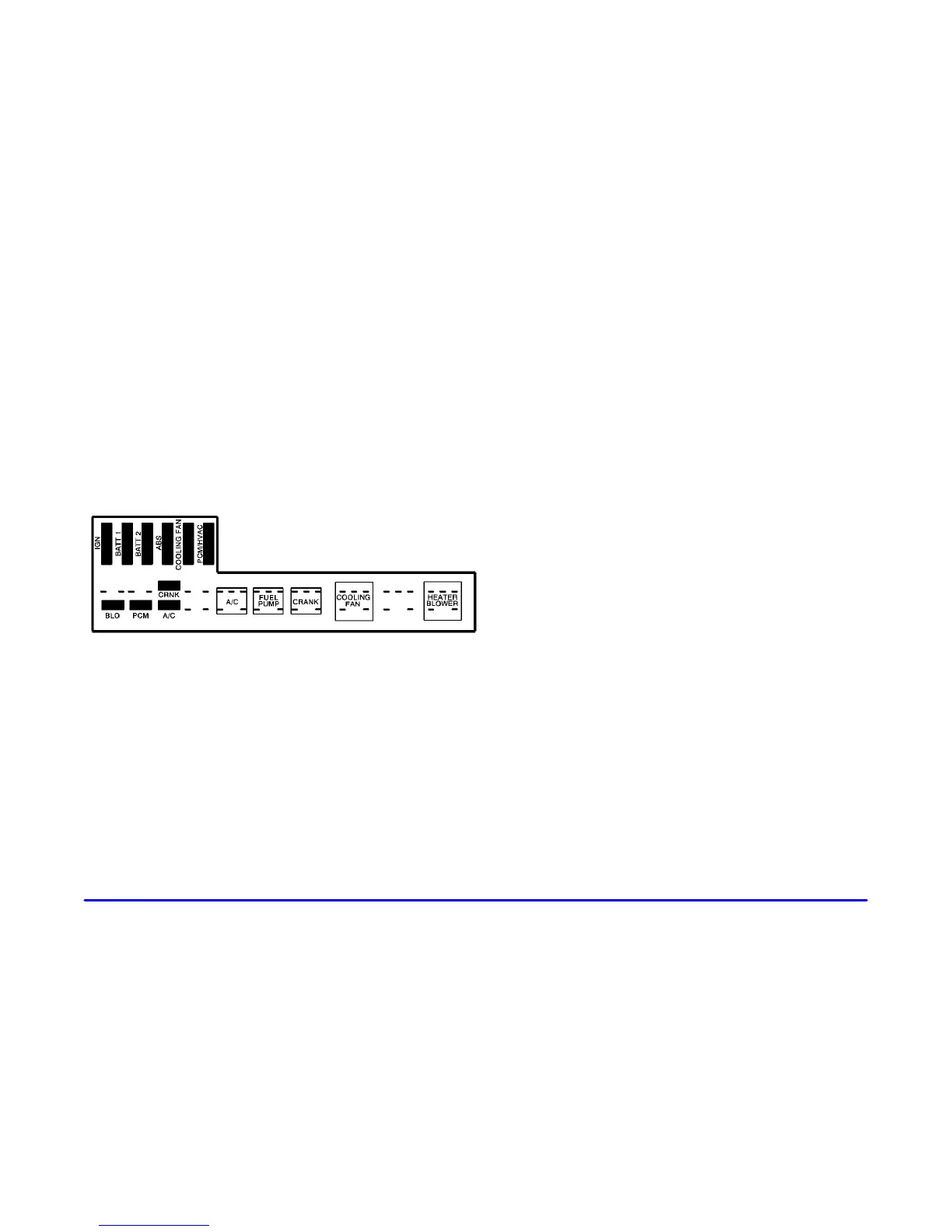

Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver’s side of the vehicle. Lift off the cover to check
the fuses. See “Engine Compartment Overview” in the
Index for more information on location.
Fuse Usage
IGN Ignition Switch Circuits
BATT 1 Exterior Lamps, Power Outlet,
Horn, Audio Amplifier
BATT 2 Rear Defogger, Starter, Power
Locks, Stoplamps
ABS Anti
-Lock Brake System
COOLING FAN Engine Cooling Fan
PCM/HVAC Powertrain Control Module,
Heater and A/C Blower
CRNK Starter
BLO Heater and A/C Blower
PCM Powertrain Control Module
A/C A/C Compressor
A/C A/C Compressor
FUEL PUMP Fuel Pump
CRNK Starter
COOLING FAN Engine Cooling Fan
HEATER
BLOWER
Heater and A/C Blower
