Taillamps, Turn Signal, Stoplamps
and Back-up Lamps

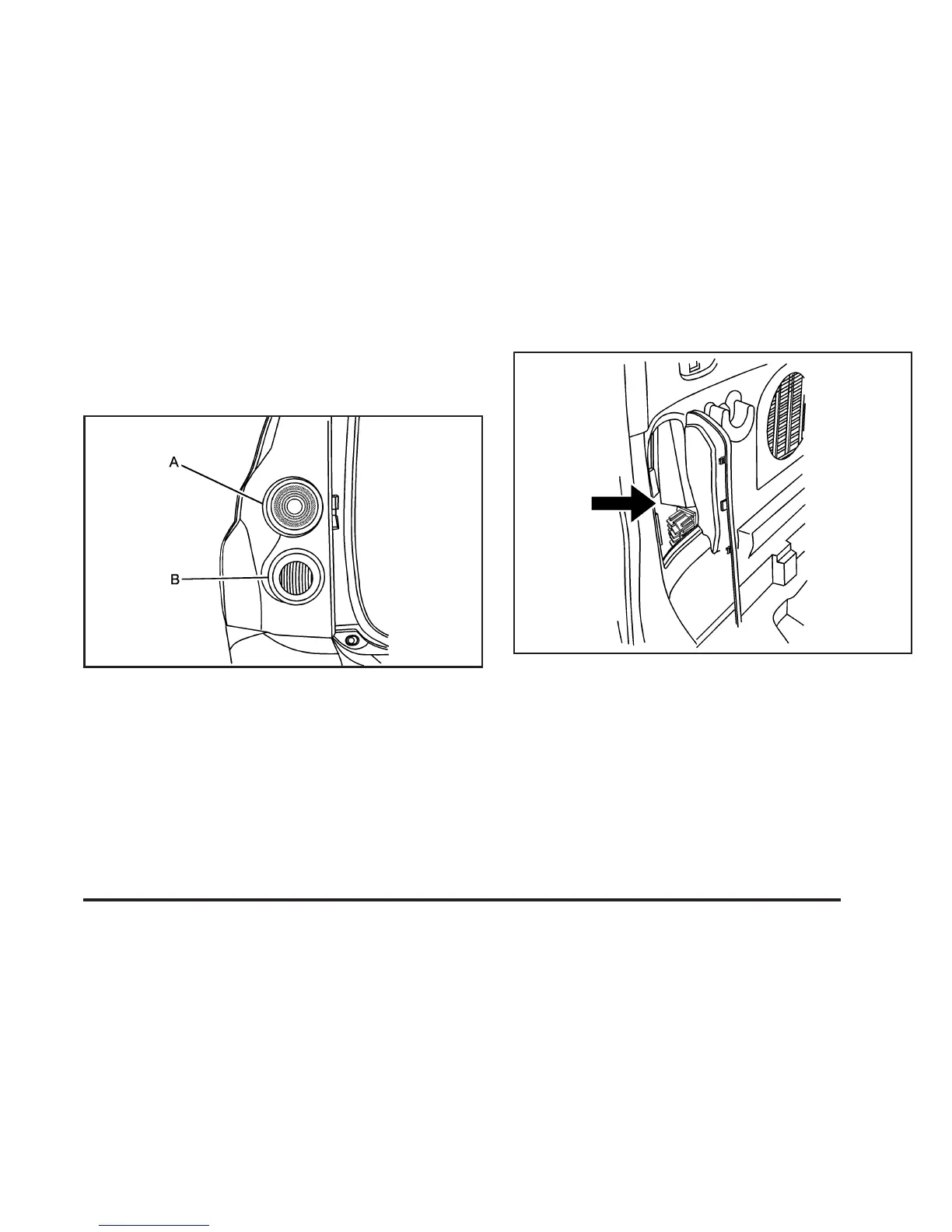

A. Stoplamp/Taillamp/Turn Signal Lamp
B. Back-up Lamp
To replace one of these bulbs:
1. Open the liftgate. See Liftgate on page 2-12 for
more information.
2. Remove the cover in the rear cargo area of the
vehicle to access the bulbs.
3. Turn the bulb socket counterclockwise and pull it
out of the lamp housing.
4. Pull the bulb straight out of the socket.
5. Install a new bulb. When installing the bulb socket
into the assembly, line up the tabs with the slots in
the bulb assembly.
6. Reverse the steps to reinstall.
5-49
