Passenger Compartment Air Filter
For vehicles with a passenger compartment air filter, it is
located behind the glove box. It can be accessed after
removing the glove box from its housing.
Pollen and dust are removed by the filter. The air
cleaner/filter may need to be changed periodically.
To change the passenger compartment air filter, use the
following steps:

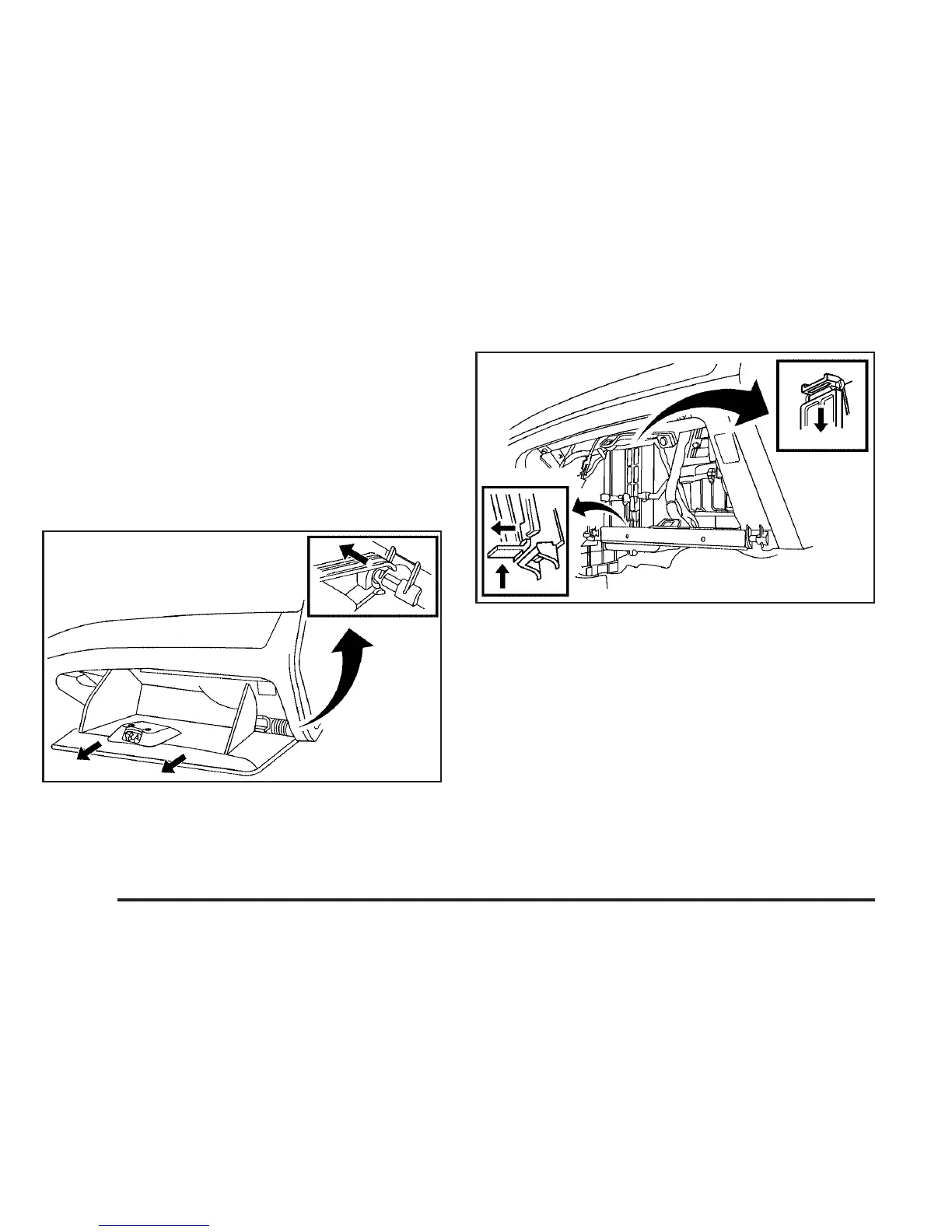

1. Open the glove box halfway down.
2. Grip the glove box by both the upper and lower
sides and pull it out of its housing.
3. Remove the filter cover by pressing in on the
bottom retaining tab and pulling the cover down.
3-22
