3.
Turn
the
retainer
counterclockwise
to
remove
the
tire
cover.
4.
Remove
the
tire
cover.
5.
Remove
the
spare
tire
by
placing
your
hands
at
the
four
and
eight
o’clock
positions.
Gently
pull
it
up
and
out
of
the
trunk.
See
Compact
Spare
Tire
on
page
5-98
.
6.
Remove
the
wing
nut
that
holds
the
jack.
Then
remove
the
jack,
wheel
wrench,
and
flat
tire
strap.

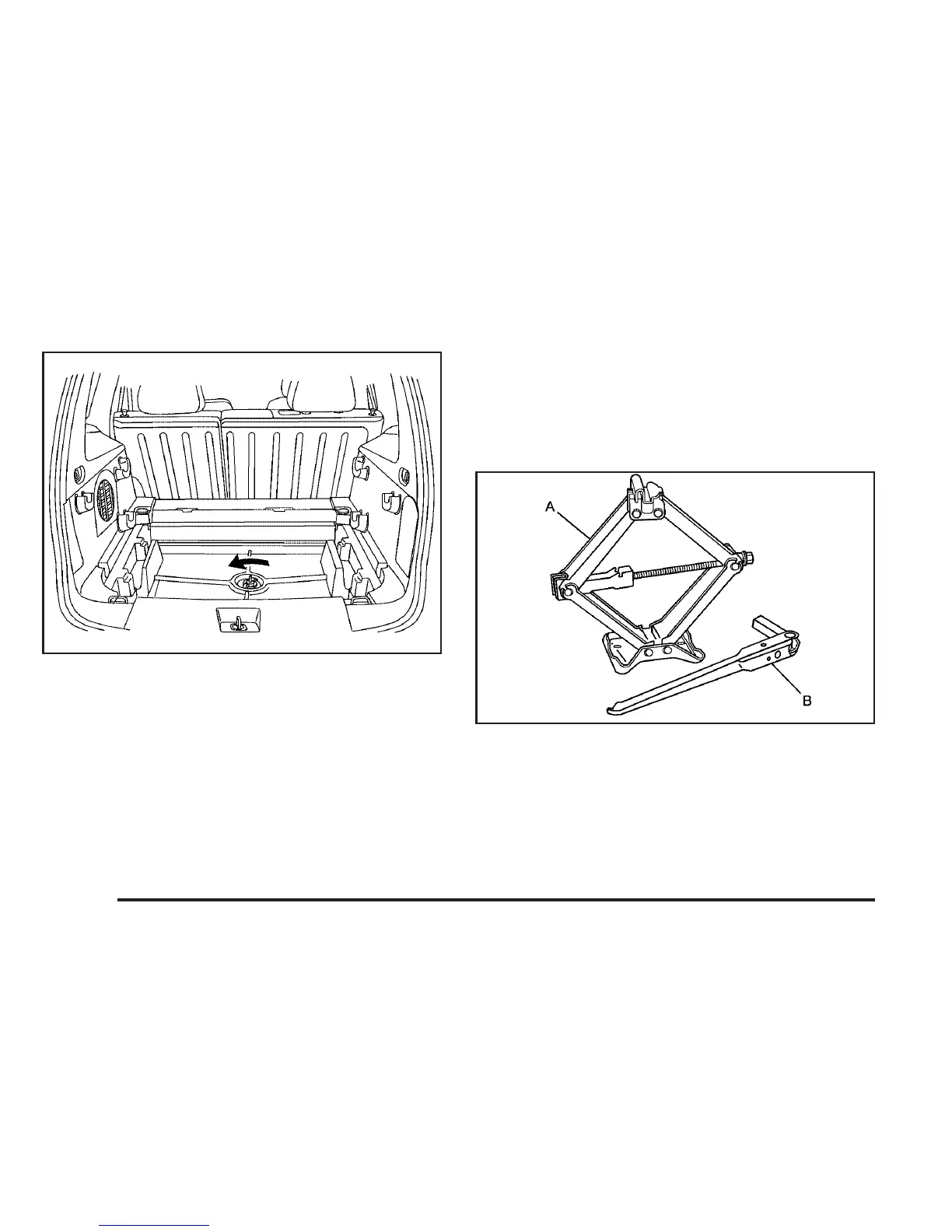

The
tools
needed
are
the
jack
(A)
and
wheel
wrench
(B).
5-78
355
357
