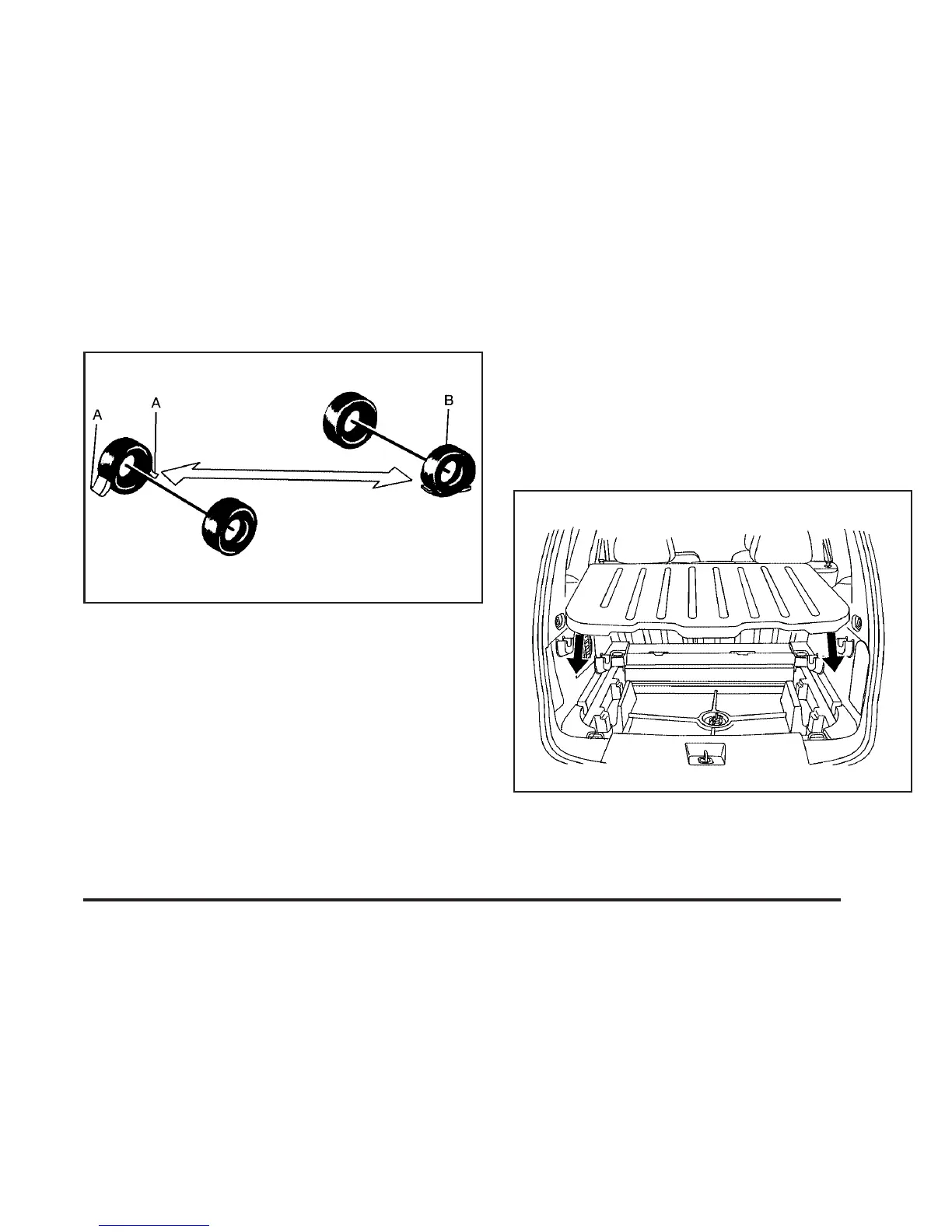

A.
Wheel
Block
B.
Flat
Tire
The
following
information
explains
how
to
use
the
jack
and
change
a
tire.
Removing
the
Spare
Tire
and
Tools
The
jack,
wheel
wrench,
and
spare
tire
are
stowed
in
the
rear
of
the
vehicle,
underneath
the
floor
of
the
cargo
area.
To
remove
the
spare
tire
and
tools:
1.
Open
the
liftgate.
See
Liftgate
on
page
2-12
for
more
information.
2.
Remove
the
cargo
cover.
5-77
354
356
