Taillamps and Turn Signal Lamps
1. Open the liftgate. See Liftgate/Liftglass on
page 2-13.

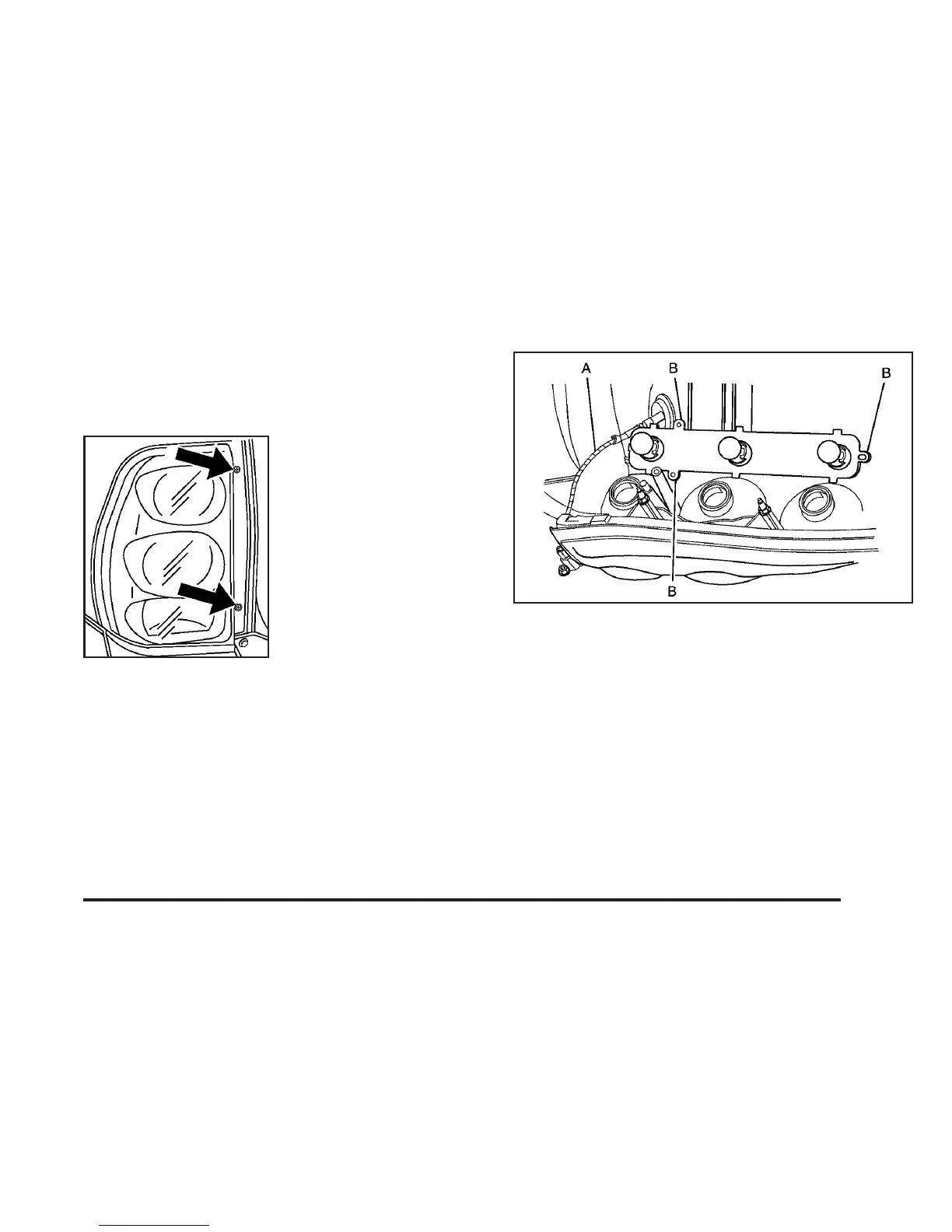

2. Remove the two
screws from the
taillamp assembly.
3. Pull the taillamp assembly away from the vehicle.
4. Unclip the wiring harness (A) and remove the three
retaining screws (B) from the socket plate.
5. Remove the socket plate.
6. Holding the socket, pull the bulb to release it from
the socket.
7. Push the new bulb into the socket until it clicks.
8. Reinstall the socket and tighten the three screws.
9. Reconnect the wiring harness.
10. Reinstall the taillamp assembly by lining up the
locator pins with the retainers in the vehicle’s body.
11. Reinstall the two screws and tighten.
5-53
