Climate Controls
Climate Control System
The heating, cooling, and ventilation in the vehicle can be controlled with this
system.

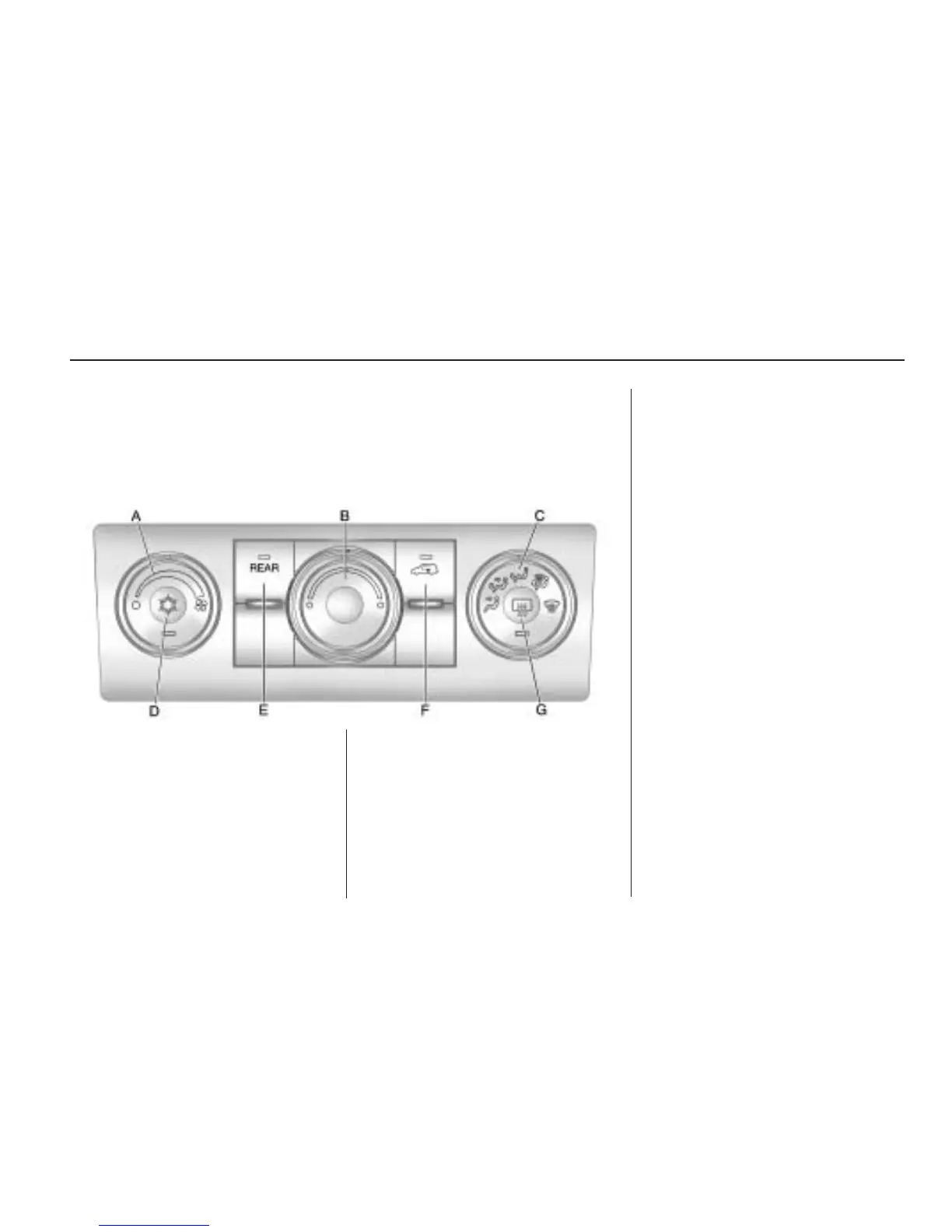

A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning
E. REAR (Rear Climate Control)
F. Recirculation
G. Rear Window Defogger
9 (Off): Turn the fan control all the
way counterclockwise to turn the
front climate control system off.
9 (Fan Control): Turn clockwise
or counterclockwise to increase
or decrease the fan speed.
Temperature Control: Turn
clockwise or counterclockwise
to increase or decrease the
temperature of the air flowing
from the system.
Air Delivery Mode Control: Turn
clockwise or counterclockwise
to change the current airflow mode.
By positioning the right knob
between two modes, a combination
of those two modes is selected.
H (Vent): Air is directed to
the instrument panel outlets.
) (Bi-Level): Air is divided
between the instrument panel and
floor outlets. Some air is directed
towards the windshield and side
window outlets. Cooler air is directed
to the upper outlets and warmer air
to the floor outlets.
Instrument Panel 3-19
