Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14420010) - 2021 - CRC - 7/29/20
Vehicle Care 277

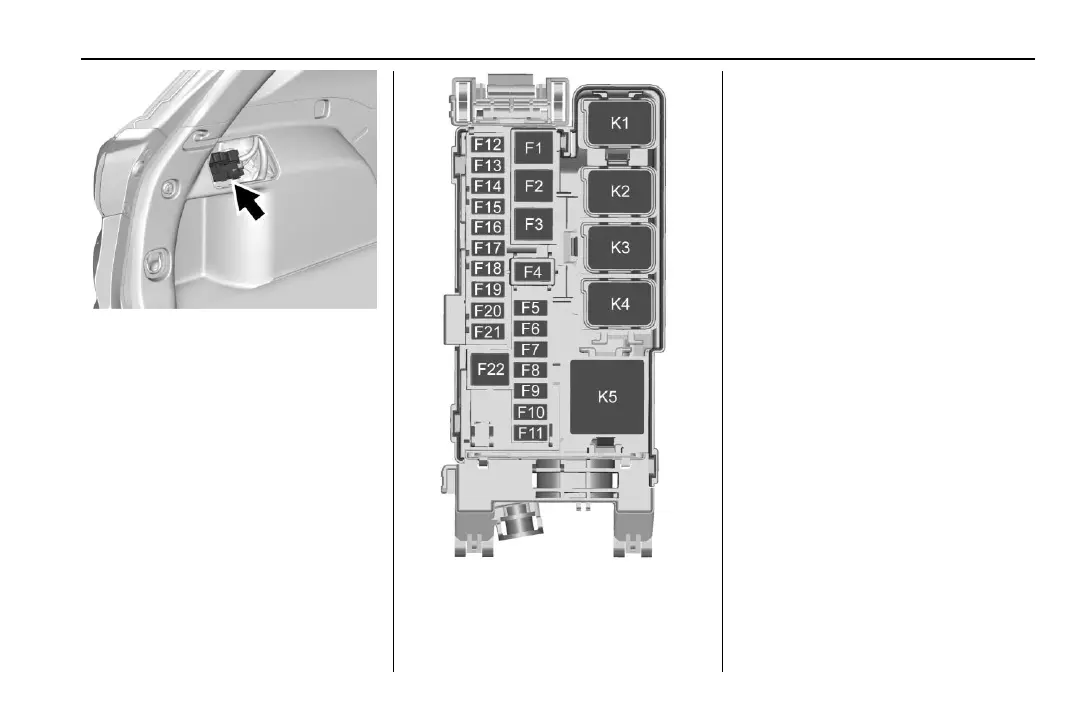

Remove the trim plate to access the fuse
block.
The vehicle may not be equipped with all of
the fuses and relays shown.
Fuses Usage
F1 –
F2 Liftgate
Fuses Usage
F3 Trailer auxiliary power
F4 Power seat co-driver
F5 Memory seat module
F6 Sunroof
F7 Side blind zone alert
F8 Trailer reverse lamps
F9 Rear heated seat 1
F10 Park lamps
F11 Rear heated seat 2
F12 –
F13 Trailer parking lamp
F14 Right trailer stoplamp/
Turn signal lamp
F15 Left parking lamp
F16 Right parking lamp
F17 Video processing
module
F18 Left trailer stoplamp/
Turn signal lamp
F19 All-wheel drive
F20 Lumbar
