7-280 Electrical Component and Inline Harness Connector End Views
X92 USB Receptacle X1 (D07)
Pin Size Color Circuit Function Terminal
Type ID
Option
1 - 3 — — — Not Occupied — —
4 0.35 BK 2550 Ground 25 I —
5 — — — Not Occupied — —
6 0.75 RD/VT 340 Secondary Fused Battery Positive Voltage 3 I —
Splice Pack Connector End Views

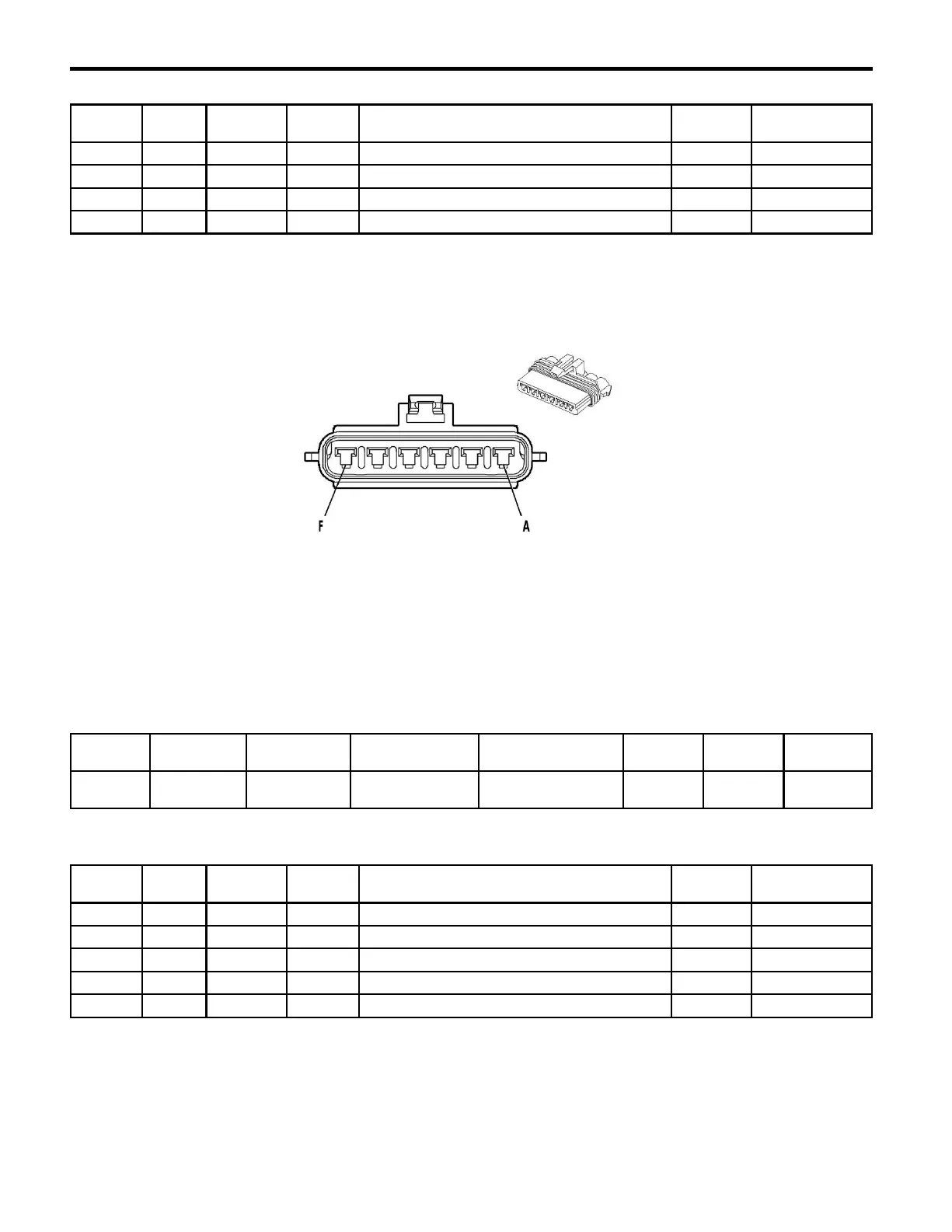

JX100 Splice Pack
535933
Connector Part Information
Harness Type: Forward Lamp
OEM Connector: 3551896C1
Service Connector: 12102746
Description: 6-Way F 280 Metri-Pack Series, Sealed (BK)
Terminal Part Information
Terminal
Type ID
Terminated
Lead
Diagnostic
Test Probe
Terminal
Removal Tool
Service Terminal Tray
Name
Core
Crimp
Insulation
Crimp
I
Not
Required
J-35616-
4A (PU)
No Tool Required Not Required
Not
Required
Not
Required
Not
Required
JX100 Splice Pack
Pin Size Color Circuit Function Terminal
Type ID
Option
A 2 BK 10-G Ground I —
B 1.5 BK 150 Ground 1 I —
C 1 BK 139-G Ground I —
D 1 BK 603-G Ground I —
E - F — — — Not Occupied — —
2021 - Silverado 4500HD, 5500HD, and 6500HD Electrical Body Builder Manual
