Cincinnati Fan HP I Series Operating & Maintenance Instructions

7

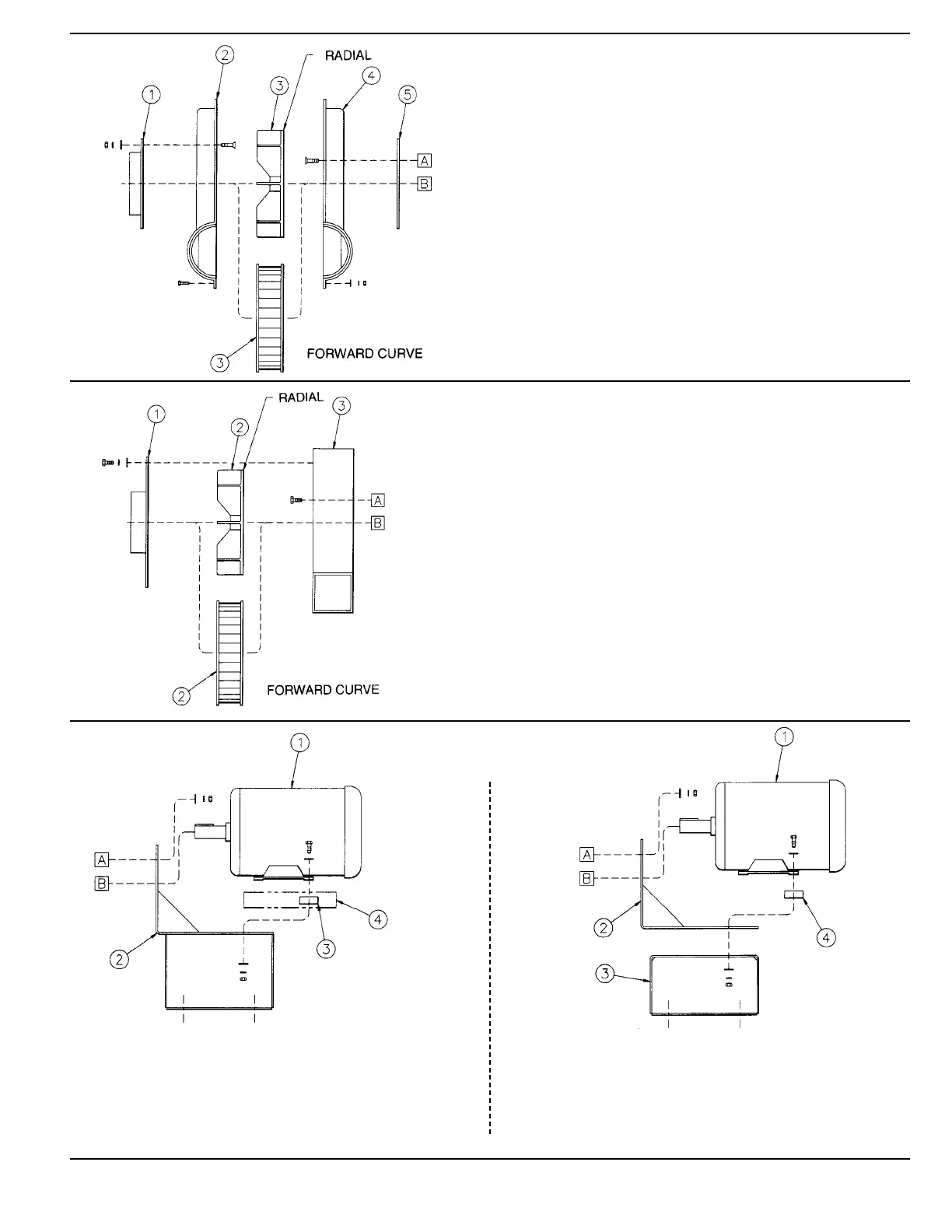

MODELS PB, SPB & LM
HOUSING/WHEEL COMPONENTS
All Arrangements
*1. Inlet side plate (if required).
*2. Housing, inlet side.
*3. Wheel (Radial or Forward Curve).
4. Housing, drive side.
5. Drive side plate (if required).
* NOTE: Rotation determined by viewing
blower from drive side, not
looking into inlet.
MODELS PBS
FABRICATED HOUSING/WHEEL
COMPONENTS
All Arrangements
*1. Inlet side plate.
*2. Wheel (Radial or Forward Curve).
3. Housing, non-reversible (CW or
CCW).
* NOTE: Rotation determined by viewing
blower from drive side, not looking
into inlet.
Arrangement 4 - Type 1
BASE COMPONENTS
1. Motor.
2. Combo base.
3. Riser blocks (if required).
4. Riser base, 1-3/4” (if required).
Arrangement 4 - Type 2
BASE COMPONENTS
1. Motor.
2. Angle bracket (if required).
3. Bottom base.
4. Riser base (if required).
