2. Press the push button on the center of the cover and pull the cover out of the system to expose the slot.
3. Slide the drive into the slot.
Keep the drive bays covered when there are no drives installed in the slot.
Note

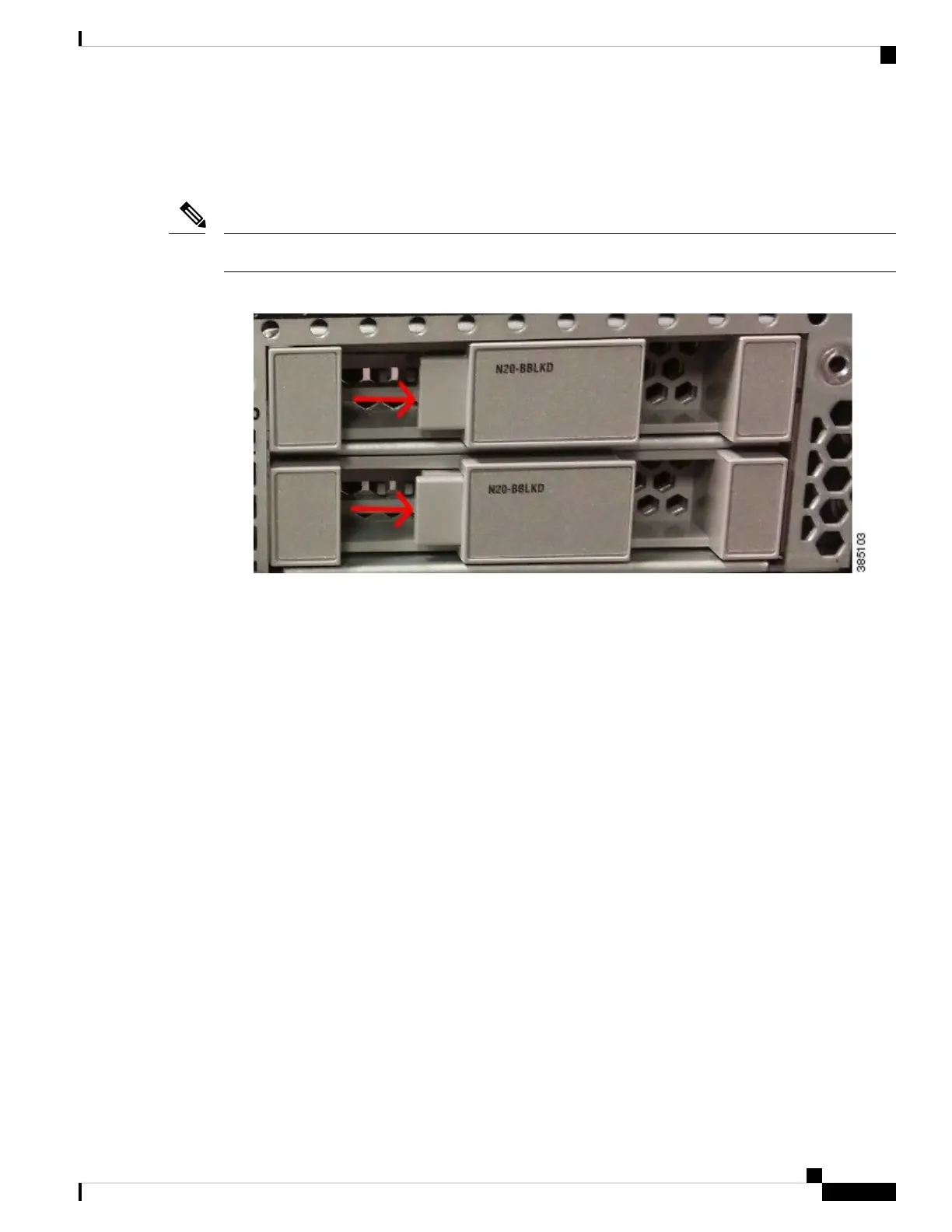

Figure 3: Covers of Hard Disk Drive Slots
Upgrading the M.2 Storage Module
The M.2 storage module is a hardware that is 22mm wide and 80mm long. This hardware comes with different
storage capacities.
These are the steps to upgrade the M.2 memory module:
1. Remove the chassis cover.
2. Locate the M.2 storage module. Refer to the Chassis - Internal View section to identify and locate the
module.
3. Remove the old storage module by unscrewing the screw that secures the hardware and removing out the
storage module.
4. Plug in the new storage module in the same location and secure it with the screw.
Installing and Upgrading FRUs
3
Installing and Upgrading FRUs
Upgrading the M.2 Storage Module
To Next Page
