Chapter 2 Cisco ASR 1000 Series Routers Components
Cisco ASR 1000 Series SPA Interface Processor
• Contains one or more subslots which house one or more shared port adapters.
• Supports online insertion and removal (OIR) with SPAs inserted in the subslots. SPAs also support
OIR and can be inserted or removed independently from the SIP.
This section describes the Cisco ASR 1000 Series SPA Interface (SIP) components and subslot
identification.

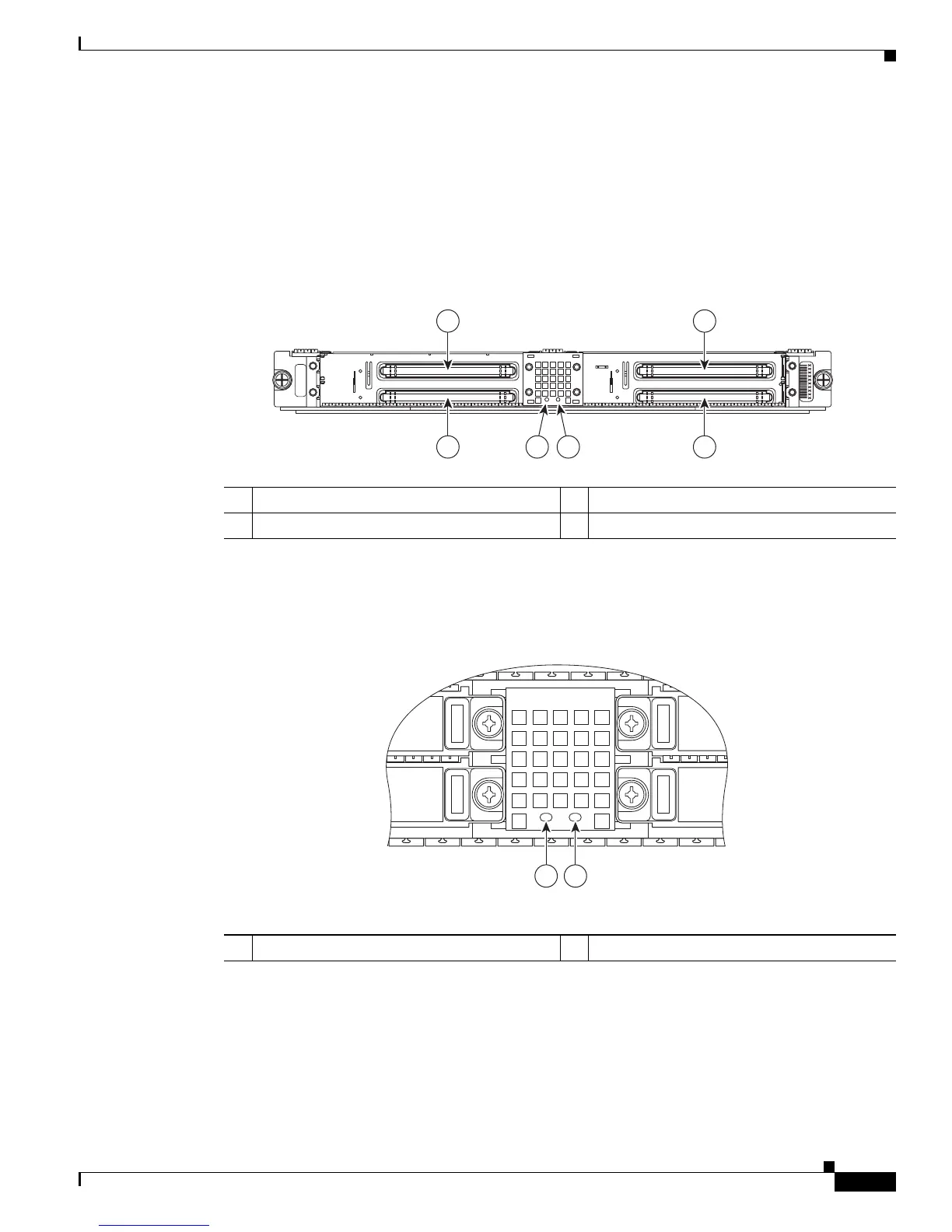

Figure 2-5 shows the Cisco ASR 1000 Series SPA Interface (SIP) module.
Figure 2-5 Cisco ASR 1000 Series SIP Faceplate
Figure 2-6 shows the LEDs on the Cisco ASR1000-SIP 10.
Figure 2-6 Cisco ASR1000-SIP10 SPA Interface Processor LEDs
2
0
3
1
231510
ASR1000-SIP10
PWR STATUS
ASR1000-SIP10G
1 2
6
45 3
1 SPA subslot 0 3 SPA subslot 3
2 SPA subslot 1 4 SPA subslot 2
1 PWR LED 2 Status LED
ASR1000-SIP10
PWR STATUS
280081
12

Cisco ASR 1000 Series Specifications

General

Series	ASR 1000
Category	Network Router
Operating System	Cisco IOS XE
Memory	Up to 64 GB
Interfaces	10 Gigabit Ethernet
Power Supply	AC or DC options
Dimensions	Varies by model
Encryption	IPsec, SSL
Storage	Varies by model
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	5% to 95% non-condensing
MTBF	Varies by model
