Step 4 Remove the two DIN rail clips (5) from the mounting bracket.
Step 5 Note: Retain all the components for reuse when mounting with vertical orientation.
Bracket Reassembly
The following procedure shows how to reattach all of the bracket componants to enable vertical orientation.

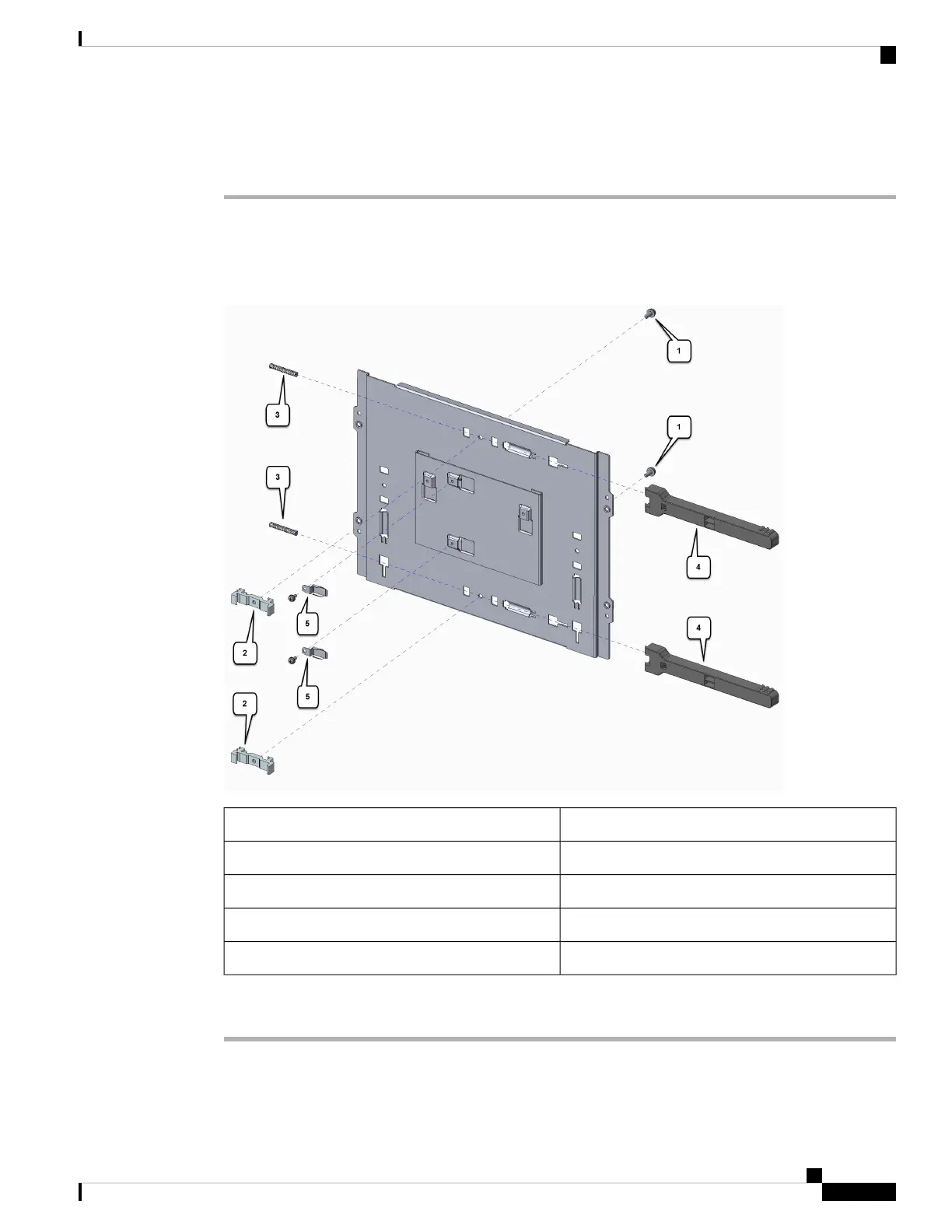

See the following figure and follow the steps provided.
Screws1
DIN rail clamps2
Springs3
Plastic latches4
DIN rail clips5
Procedure
Step 1 Slide the two springs (3) onto the thin tabs.
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
33
Installing the Router
Bracket Reassembly
