CW9166D1 Top View

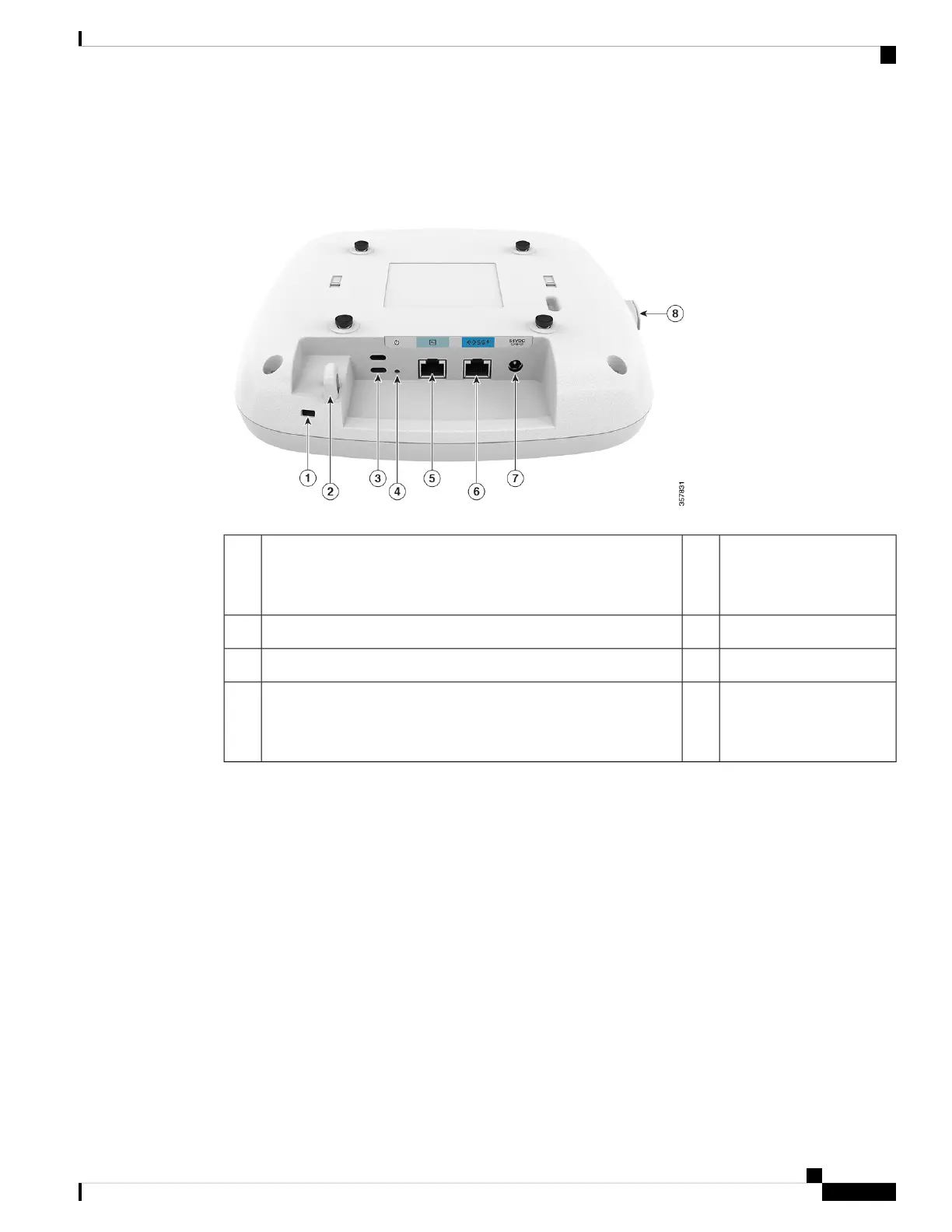

Figure 2: CW9166D1 Top View with Connectors and Ports
RJ-45 console port
Default baud rate is
115200.
5Kensington lock slot1
5GbE port6Security hasp for padlocking AP to mounting bracket2
DC 54V power input port7Environment Sensor vents3
USB 2.0 port8Mode button
For information on how to use the Mode button, see the Using the
Mode Button section
4
CW9166D1 (Integrated Directional Antenna) Radiation Patterns
The following illustrations show the CW9166D1 model with internal antenna radiation patterns:
Cisco Catalyst Wireless 9166D1 Wi-Fi 6E Access Point Hardware Installation Guide
9
Hardware Features
CW9166D1 (Integrated Directional Antenna) Radiation Patterns

Cisco Catalyst Wireless 9166D1 Specifications

General

Brand	Cisco
Model	Catalyst Wireless 9166D1
Category	Wireless Access Point
Language	English
