7 Cisco Unmanaged Rackmount Switches
100M LED (if present)—(Green) Lights and remains lit when another device
is connected to the port, is powered on, and a 100 Mbps link is established
between the devices. When the LED is off, the connection speed is under
100 Mbps or nothing is cabled to the port.
Gigabit LED (if present)—Lights and remains lit when another device is
connected to the port, is powered on, and a 1000 Mbps link is established
between the devices. When the LED is off, the connection speed is under
1000 Mbps or nothing is cabled to the port.
MiniGBIC (if present)—Lights green when a connection is made through
the shared RJ-45 port. It flashes green when the connection is active.
Back Panel

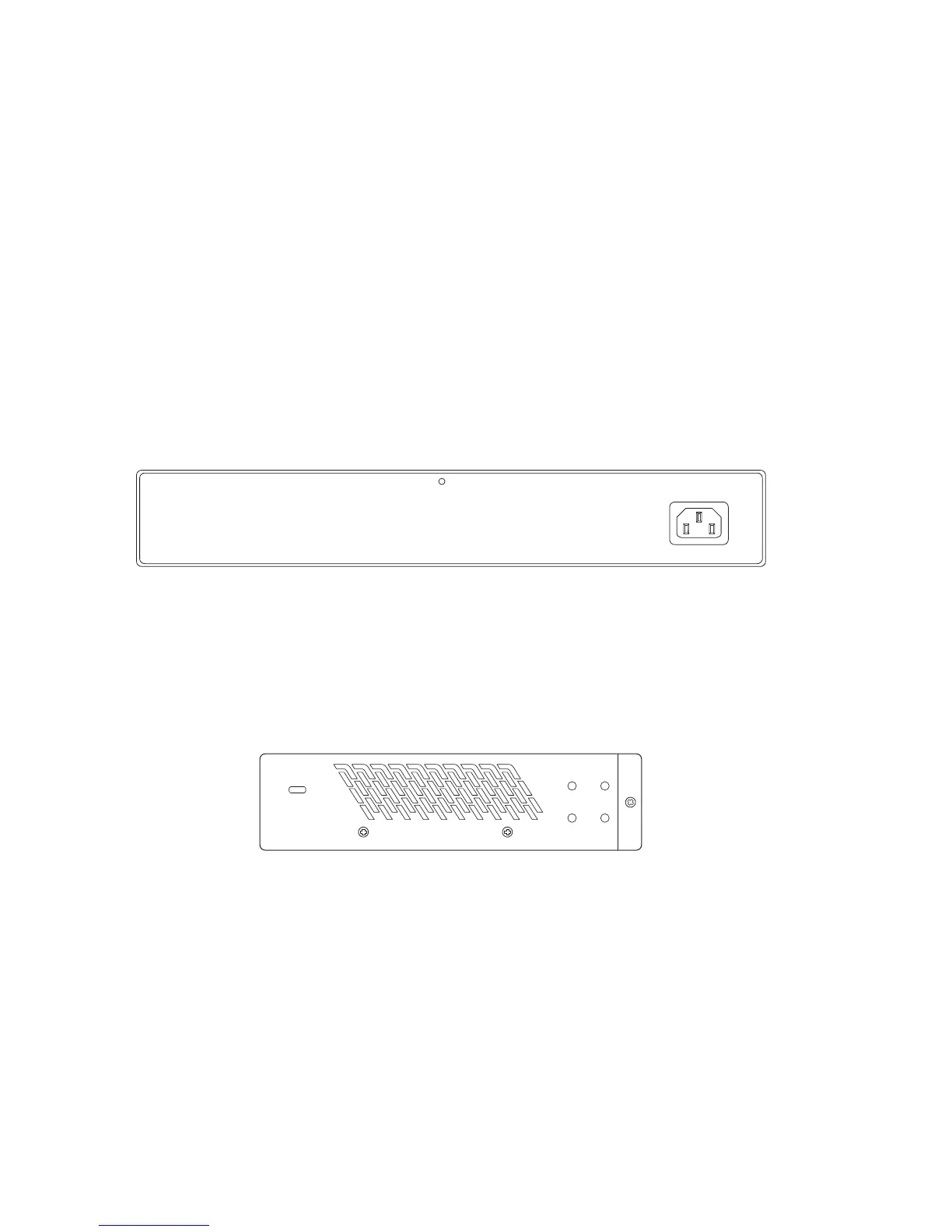

The power port is located on the back panel of the unmanaged rackmount
switch.
Side Panel
The Kensington lock is located on the side panel of the unmanaged
rackmount switch. (Only the Cisco SF 100-16, SF 100-24, SG 100-16, or
SG 102-24 Unmanaged Rackmount Switch has a lock.)
276580
POWER
