41

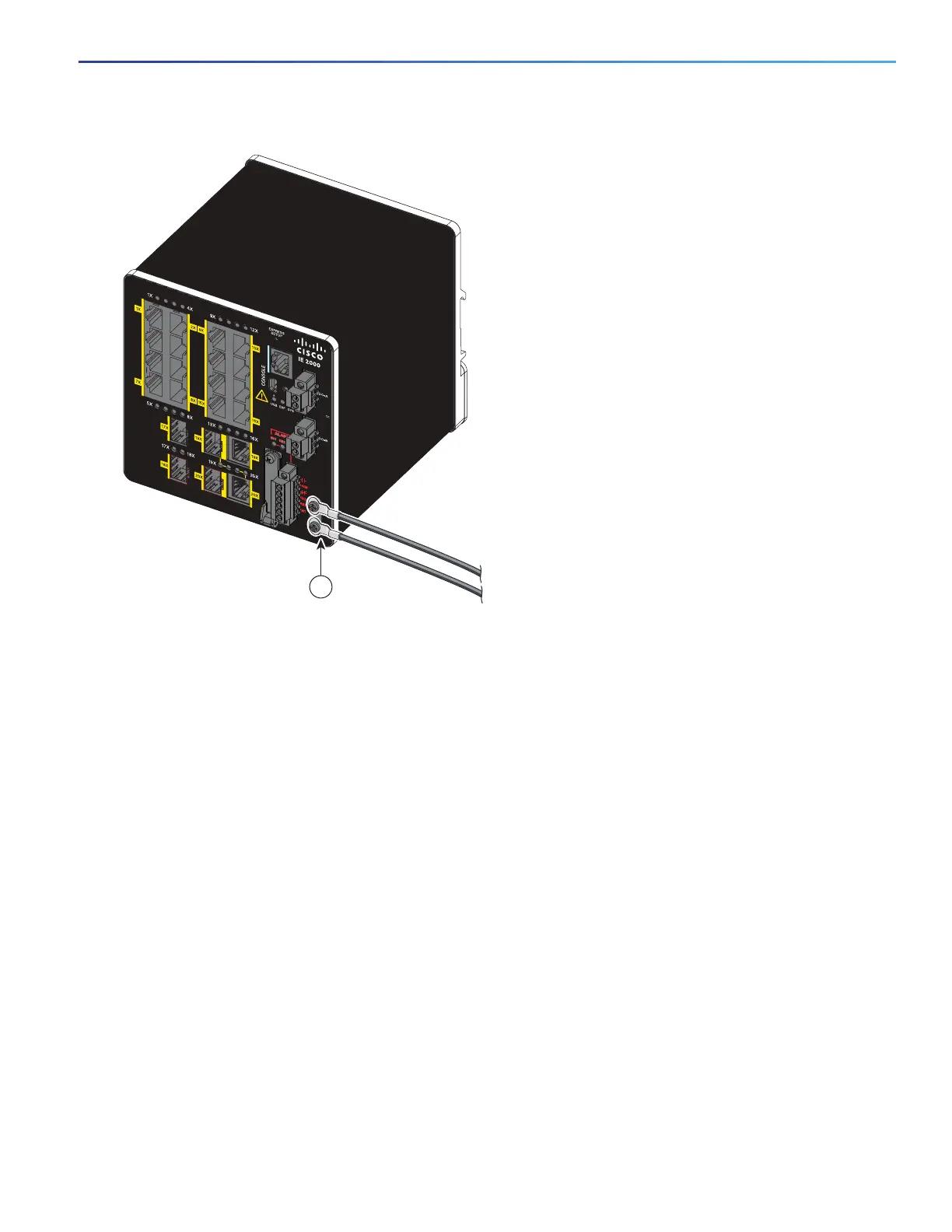

Figure 19 Installing the Ground-Lug Screws (Two Single Ring Terminals)
7. Attach the other end of the ground wire to a grounded bare metal surface, such as a ground bus, a grounded DIN
rail, or a grounded bare rack.
Connecting the Power Converter to an AC Power Source
These sections describe the steps required to connect the power converter to an AC power source:
Preparing the AC Power Connection, page 41
Connecting the AC Power Source to the Power Converter, page 42
Preparing the AC Power Connection
To connect the power converter to an AC power source, you need an AC power cord. Power cord connector types and
standards vary by country. Power-cord wiring color codes also vary by country. You must have a qualified electrician
select, prepare, and install the appropriate power cord to the power supply.
Use copper conductors only, rated at a minimum temperature of 167°F (75°C).
This section does not apply to PWR-IE50W-AC-IEC, which has pluggable IEC connector.
1 Ground cable
16TC
±12/24/48
0.5-3.0A
1
331555
To Next Page
