12 Cisco 350X Series Managed Switches

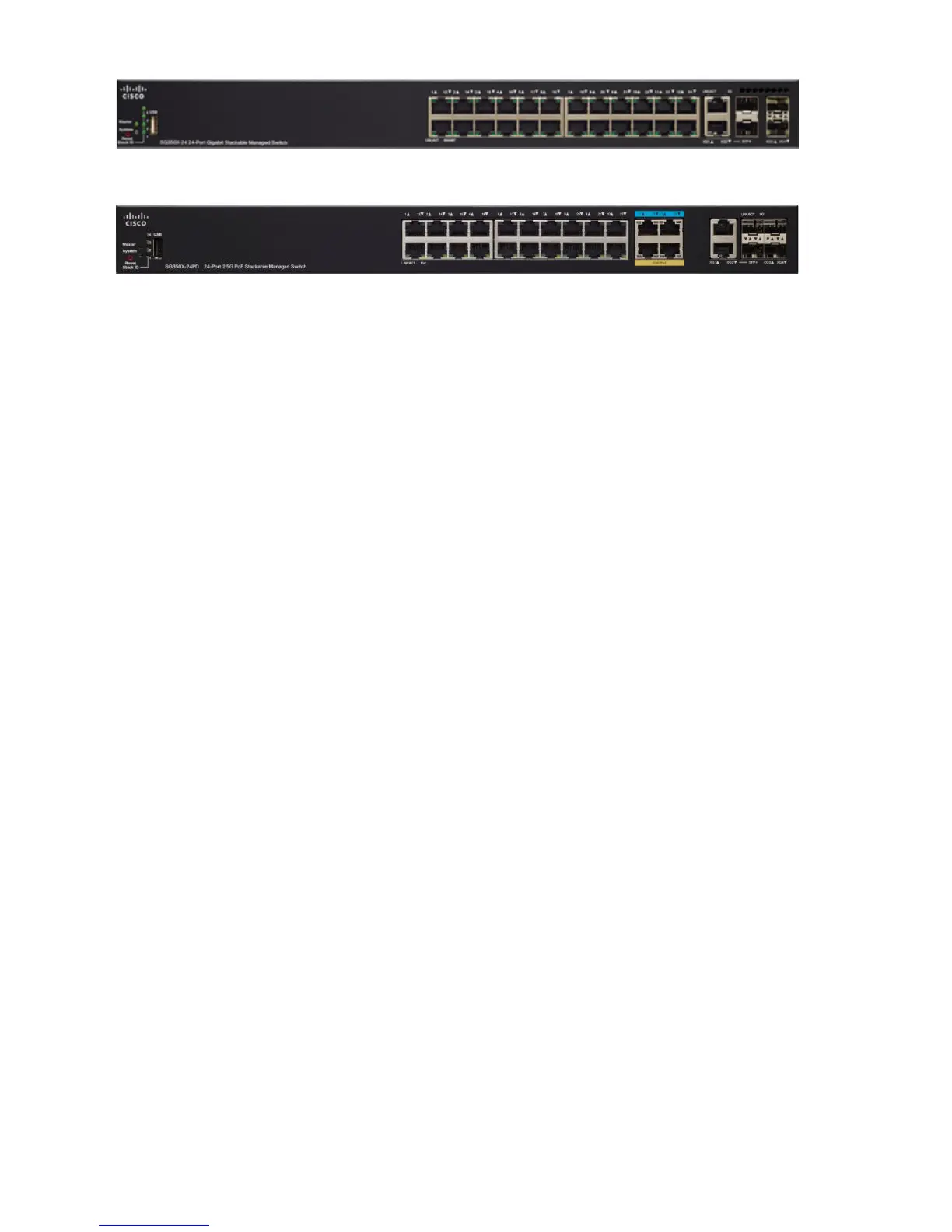

SG350X-24
SG350X-24PD
Front Panel Ports
USB Port—The USB port connects the switch to a USB device so that you
can save and restore the configuration files, firmware images, and
SYSLOG files through the connected USB device.
RJ-45 Ethernet Ports—The RJ-45 Ethernet ports connect network devices,
such as computers, printers, and access points, to the switch.
Multigigabit Ethernet Ports—Highlighted in blue, these ports support
speeds of 100 Mbps, 1 Gbps, and 2.5 Gbps, on Cat 5e cables. Much of the
cabling deployed worldwide is limited to 1 Gbps at 100 meters. Cisco
Multigigabit Ethernet enables speeds up to 2.5 Gbps on the same
infrastructure without replacing a cable.
60-Watt PoE Ports—Highlighted in yellow, the 60-Watt PoE ports double
the PoE power to 60W.
SFP+ Port (if present)—The small form-factor pluggable plus (SFP+) are
connection points for modules so that the switch can link to other switches.
These ports are also commonly referred to as mini 10GigaBit Interface
Converter ports. The term SFP+ will be used in this guide.
• The SFP+ ports are compatible with Cisco modules MGBSX1, MGBLH1,
MGBT1, MGBLX1, MGBBX1, as well as other brands of modules.
• The Cisco SFP+ 10G optical modules that are supported in the Cisco
switches are: SFP-10G-SR, and SFP-10G-LR.
• The Cisco SFP+ Copper Cable modules for stacking that are supported
in the Cisco switches are: SFP-H10GB-CU1M, SFP-H10GB-CU3M, and
SFP-H10GB-CU5M.
• The SFP+ port is a combination port, shared with one other RJ-45 port.
When the SFP+ is active, the adjacent RJ-45 port is disabled.
• The LEDs of the corresponding RJ-45 port flash green to respond to the
SFP interface traffic.
