Cisco SPA 508G Quick Start Guide

myDatavo Model SPA 504G Quick Start User Guide
|
2
➋ Phone Lines and Buttons

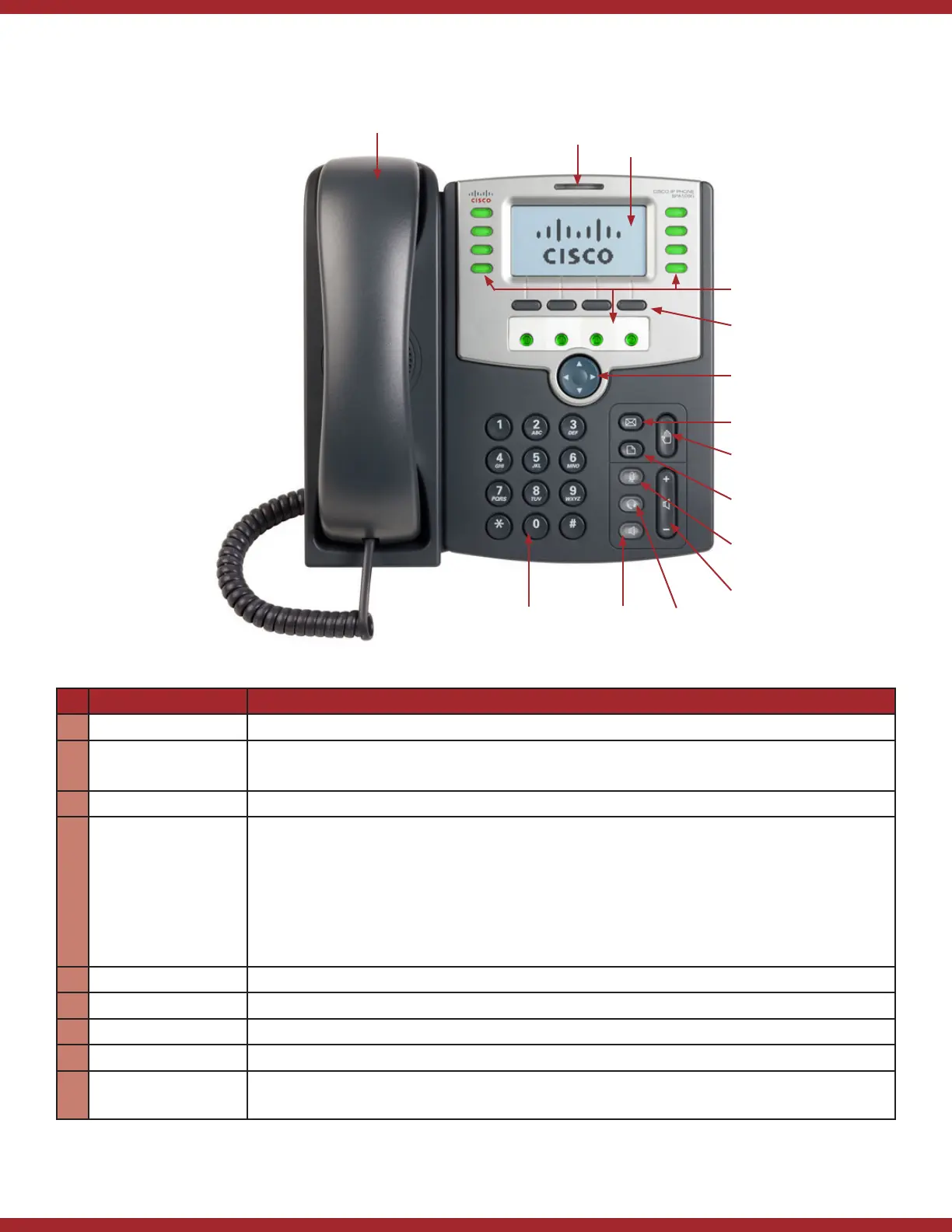

Numbered objects in the photo are explained in the following table.
①
②
③
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
⑬⑭
④
# Phone Feature Discription
1
Handset Pick up to place or answer a call.
2
Message Waiting
indicator
Displays solid red when you have a new voice mail message. Flashes red during an incoming
call or when the phone’s firmware is being updated.
3
LCD Screen Displays date and time, phone station name, line extensions and softkey options.
4
Line Keys Indicates phone line status. Typically when lit:
Green: Line is idle.
Red (steady): Line is active or in use.
Red (blinking): Line is on hold.
Orange: Line is unregistered (cannot be used).
Orange (Flashing): The phone is not connected to the network.
5
Softkey buttons Press a softkey button to perform the action shown on the label on the LCD screen above.
6
Navigation button Press an arrow to scroll left, right, up, or down through items shown on the LCD screen.
7
Messages button Press to access voice mail (must be set up by your phone system administrator).
8
Hold button Press to place a call on hold.
9
Setup button Press to access a menu to configure features and preferences (such as your directory and
speed dials), access your call history and set up functions (such as call forwarding).

Cisco SPA 508G Specifications

General

Speakerphone	Yes
Dialer location	Base
Mac compatibility	No
Ethernet LAN (RJ-45) ports	2
Display resolution	128 x 64 pixels
Display number of colors	Monochrome
Headphone connectivity	2.5 mm

Weight and Dimensions

Depth	212 mm
Width	214 mm
Height	44 mm
Weight	900 g
